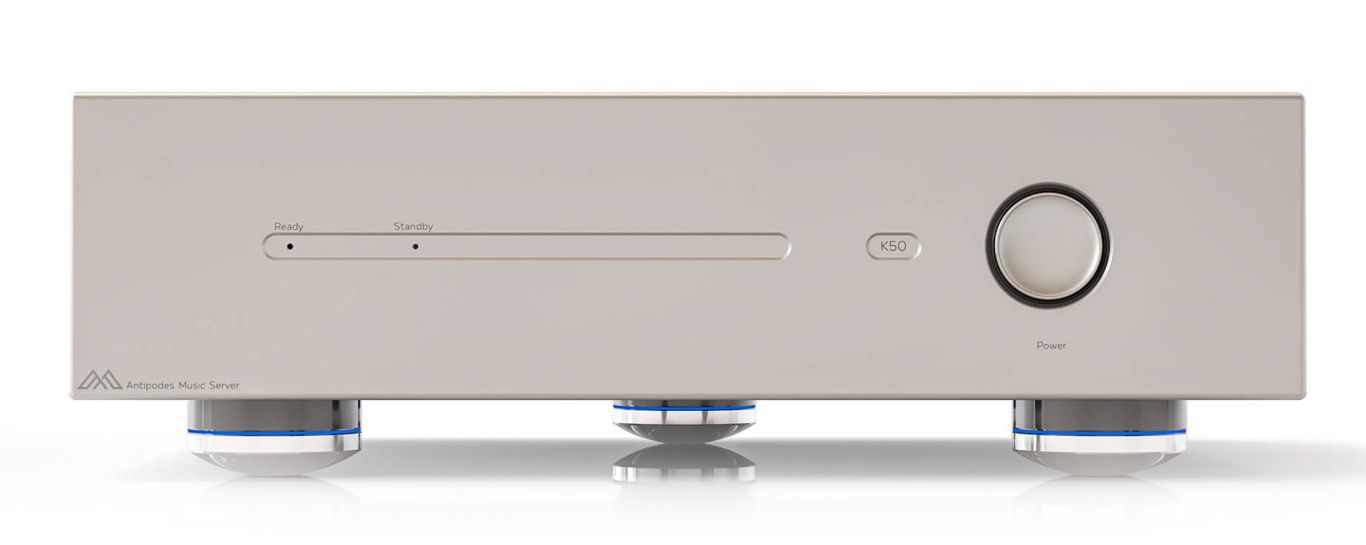

Antipodes Kala 50
Design
The KALA 50 is the flagship of the KALA range, with an electronic design that is derived from the OLADRA, delivering compelling musical performance at a more affordable level.
Every panel in the KALA 50 is precision machined from a thick solid plate of premium alloy for a perfect fit and finish, and outstanding vibration control.

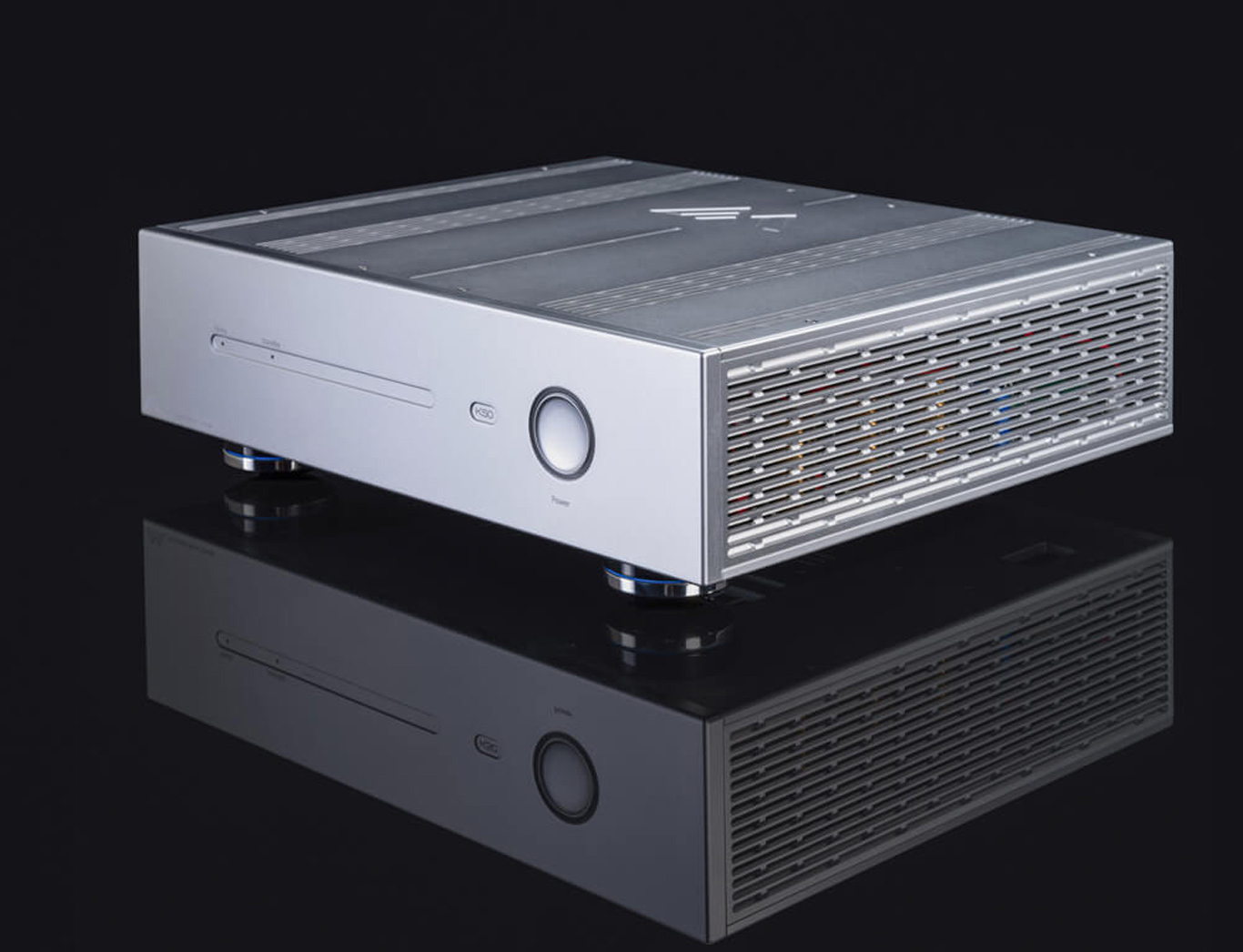

Performance
Presenting how real musicians sound in real spaces allows the music’s message to get through with all of its creative potency.
Discover more nuance in your favourite music, and immerse yourself in the artistry and passion that created each performance.
Technology
The KALA 50 employs two separate computing stages with isolated signal processing stages.
Processing by two custom computers is followed by an isolated regeneration and clocking stage.
Dual Computers
The powerful custom KALA Server computer ensures snappy response to your commands, and extracts an outstanding level of musical detail to stream to the Player.
The custom KALA Player computer presents a signal with natural timbre, saturated tonal density, wide dynamics and immersive musical expression.
Signal Processing
The digital signal received from the Player computer is isolated and regenerated using ultra-stable, and oven-controlled femto-second clocks.
The USB output is reclocked separately from the synchronous outputs (S/PDIF, AES3 and I2S), employing different clock circuits based on the needs of each output type.
Specifications Antipodes Kala 50
Weight & Dimensions
Weight
16Kg
Width
445mm
Height
140mm
Depth
370mm
Power & Network
AC Power
Unconstrained Mains Current
220-240VAC
Filtered IEC 320-C14 Input
Network
Gigabit Ethernet
RJ45
Direct Stream
Gigabit Ethernet
RJ45
Disk Capacity
3 Rear Panel Slots
Disk Type
2.5″ SATA SSD
Enterprise Grade Preferred
Installation
User-Installable
No Tools Required
Signal Outputs
USB Audio 2.0 Full Compliance
– PCM to 32 bit/768kHz
– DoP to DSD256
– Native DSD to DSD512
– On USB A
I2S
– PCM to 32bit/384kHz
– DoP to DSD256
– Configurable Native DSD to DSD512
– On HDMI & RJ45
– PCM to 24bit/192kHz
– DoP to DSD64
– On XLR 3-Pin
S/PDIF
– PCM to 24bit/192kHz
– DoP to DSD64
– On RCA, BNC & TOS
