Arcam A50 Signature

Arcam A50 Signature

Integrated Amplifier

Arcam A50 Signature Main Features

• The 1st ARCAM Dual-Mono Class G Integrated Amplifier
• 2x 150W Power Output powers loudspeakers effortlessly
• Built-in Class A MM & MC phono stage for exceptional music from vinyl with almost any turntable and cartridge
• ESS ES9039Q2M DAC with USB-C and HDMI e-ARC inputs for the best sound from any streamed audio source
• Wired or wireless headphones connect your headphones for quiet listening with, or without wires
• Wireless audio with Snapdragon Sound and Auracast built-in for the best sound with the most convenience
• Plastic free packaging for easy disposal or natural materials

ARCAM marks 50 years of exceptional amplification with the launch of the A50 Signature integrated amplifier. From its beginnings as A&R Cambridge in the 1970s, ARCAM has been defined by a commitment to music through engineering integrity, and a distinctly British sound.

The story began in September 1976 with the launch of the original A60. Half a century later, the A50 Signature honours that legacy while looking firmly to the future. Created in collaboration with ARCAM co‑founder John Dawson, the A50 Signature reflects a shared belief that great audio design must remain relevant to how people listen today.

Rather than recreating the past, the A50 Signature is designed for modern music enjoyment in all its forms. From high‑resolution streaming and HDMI eARC TV audio to CD and vinyl. Digital or analogue, it connects effortlessly to the sources that matter most, placing the listener at the centre of the experience.

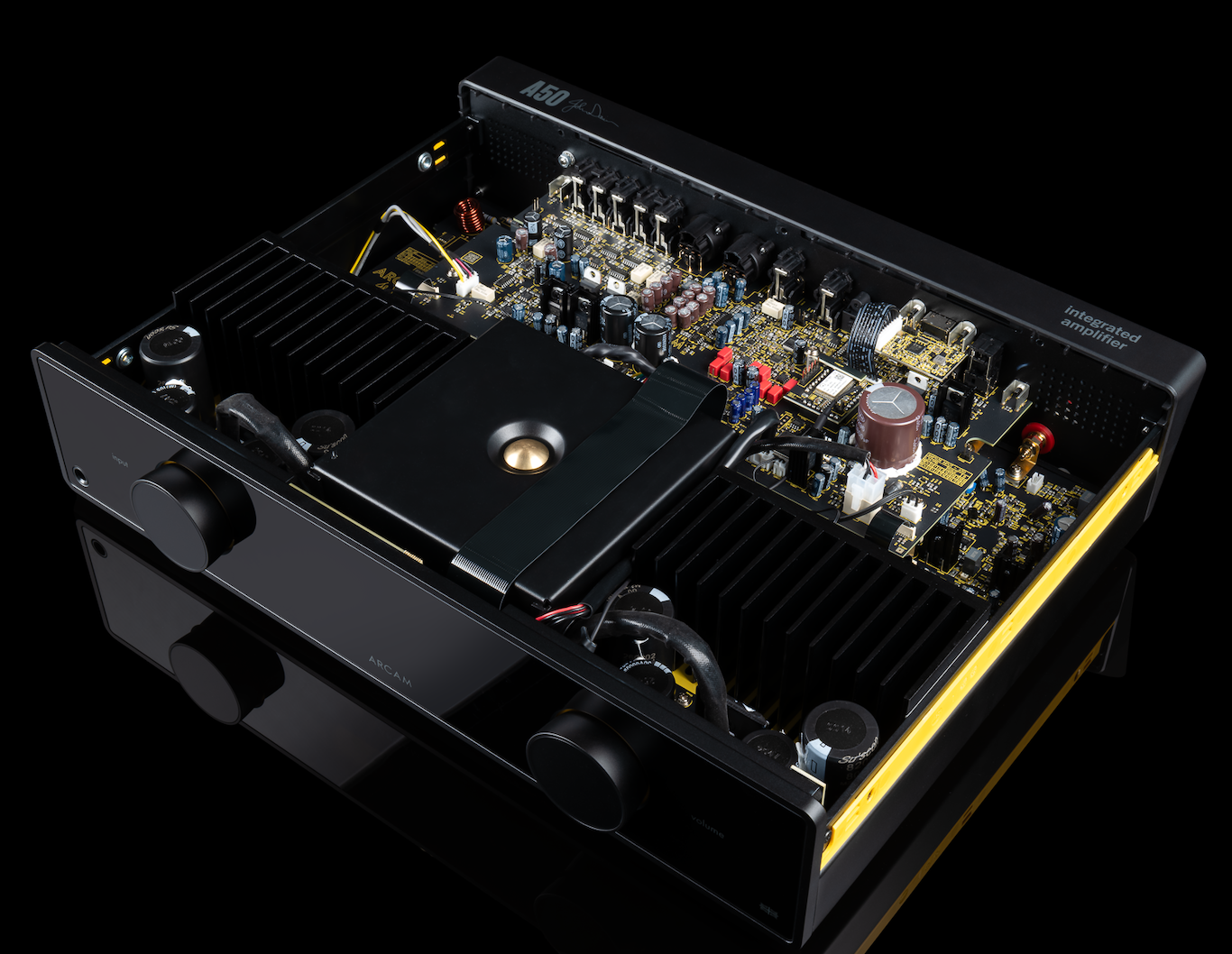

At its heart is a landmark engineering achievement: ARCAM’s first dual‑mono Class G integrated amplifier. Developed from nearly two decades of Class G expertise, the A50 Signature delivers exceptional power, clarity, and control, with each channel built as a fully independent amplifier. The result is a level of performance worthy of
ARCAM’s 50‑year legacy.

The A50 Signature is not just a celebration of where ARCAM has been, but a statement of where it is going — continuing a tradition of amplification that brings music to life.

Arcam A50 Signature Technical Specifications

Continuous power output (0.5% THD) 2 channels driven

• 8Ω, 20Hz ‑ 20kHz – Power Output – 150W*
• 4Ω, 1kHz, – Power Output – 220W*
• Harmonic distortion, 80% power, 8Ω at 1kHz – 0.002%*

Analogue Inputs

• Frequency response 20Hz—20kHz ± 0.2dB*
• Number of inputs – 3 (RCA pairs)
• Signal/noise ratio (A-wtd, ref. 50W, 1V input) – 106dB*

Phono (MM) Input

• Input impedance – 47kΩ + 100pF*
• Frequency response (ref. RIAA curve) – 20Hz—20kHz ± 1dB*

Digital Inputs

• Supported Sample Rates (kHz)
• USB-C Only – 384, 352.8, 192, 176.4, 96, 88.2, 48, 44.1
• Other digital inputs – 192, 176.4, 96, 88.2, 48, 44.1
• Bit depths (bit) – 32, 24, 16
• Frequency response (filter 1) – 20Hz—20kHz ± 0.2dB*
• Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) – 110dB*

Headphone Output

• Maximum output level (RMS) into 32Ω/300Ω – 2.5V/5V
• Load range – 16Ω – 2kΩ

Wireless Specifications

• Bluetooth Version 5.4; A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD and aptX, Lossless, LE Audio, Auracast
• Bluetooth Transmitter Frequency and Power 2,400 MHz to 2,483.5 MHz: <20dBm

General

• Mains voltage – 100V or 110–120V or 220–240V, 50–60Hz
• Power consumption (maximum) 700W*
• Power consumption (standby) <0.5W
• Weight (net) 12kg*
• Weight (packed) 14kg*
• Dimensions W x D (including speaker terminals) x H – 431 x 344 x 99mm
  (including feet) Mains lead(s)

Supplied accessories

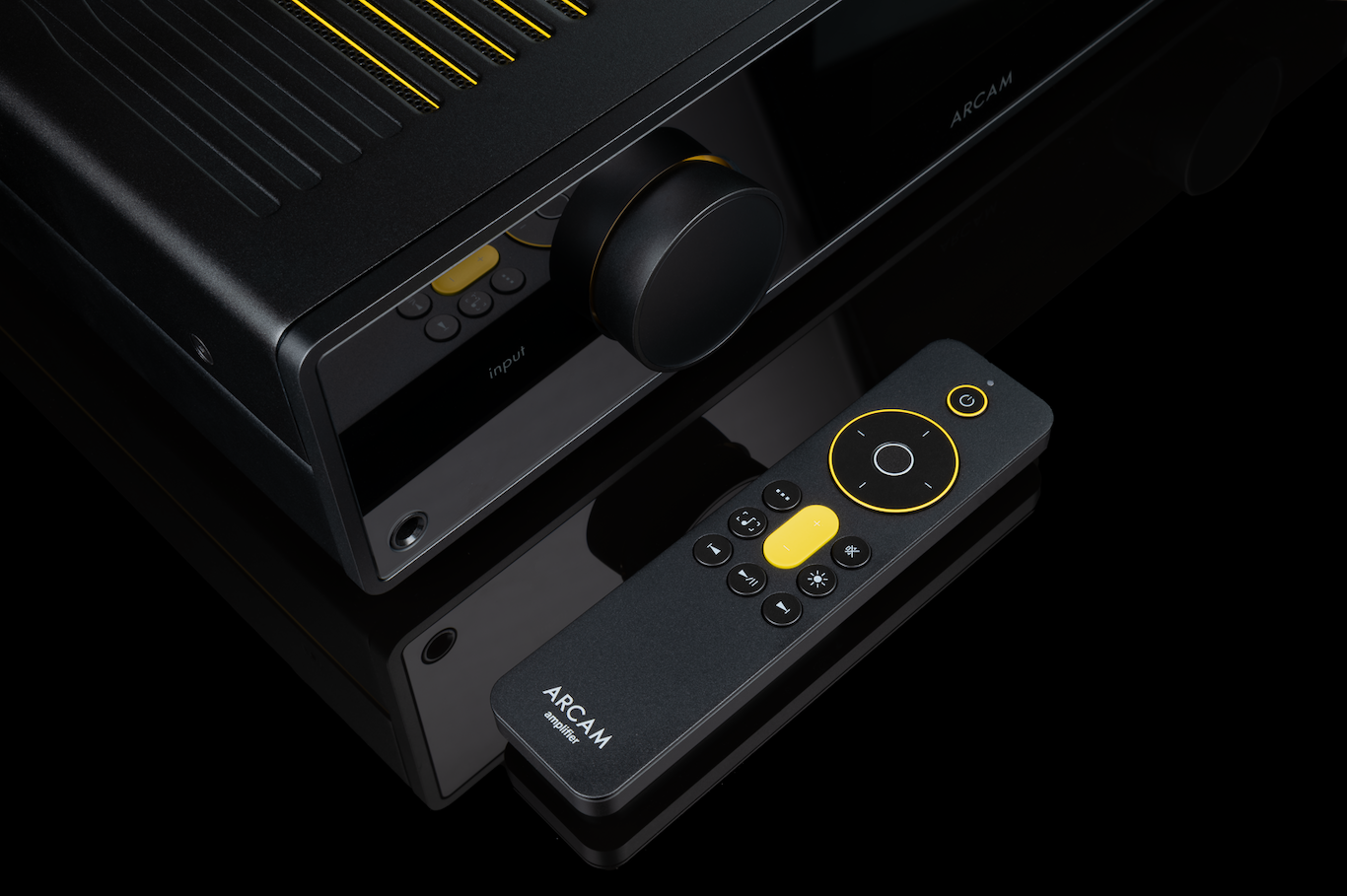

• Remote control with 2 x AAA batteries
• Quick Start Guide
• Important Safety Instructions
