Eversolo DAC-Z10 DAC

Eversolo DAC-Z10 DAC

The Eversolo DAC-Z10 is a premium DAC and pre-amplifier designed for audiophiles who demand exceptional sound clarity.

With dual mono AKM DACs and a fully isolated architecture that separates every channel and power source, it delivers outstanding precision, stability and musical insight.

Supporting high-resolution formats up to 32-bit/768 kHz PCM and native DSD512, the DAC-Z10 features balanced XLR and RCA outputs, headphone amplification, an intuitive 8.8″ touchscreen and extensive connectivity.

Sleek in finish, it is built to perform and last.

Precision Engineering Built for Authentic Sound

From digital to analogue, the DAC-Z10 lets music unfold in its purest form.

A DAC that reveals the authentic character and finest details of sound

Full Isolation Design | Eversolo FIA™

The DAC-Z10 is built on Eversolo’s Fully Isolated Architecture (FIA), which completely separates the digital and analogue domains to minimise interference and preserve signal purity.

Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in an ultra-low-noise environment.

Its decoding architecture features two sets of AK4191 + AK4499 DACs for independent left and right channels, combined with a fully balanced analogue preamplifier that employs precise dual-channel R2R volume control.

This configuration achieves superior DNR and lower THD+N, unlocking the full potential of the music.

Three Independent Power Supplies

With three independent toroidal transformers for left channel, right channel, and system power, the DAC-Z10 maintains ultra-low noise down to 42μV.

This design minimises interference, giving each channel its own clean, isolated voltage support for a stable and detailed sound.

Dual Decoding Modules

Built on a fully balanced architecture, the DAC-Z10 features dual independent AK4191 + AK4499 DAC modules for the left and right channels.

Combined with AKM’s Velvet Sound™ technology, it strikes the perfect balance between precision and tonal richness.

R2R Volume Control

The DAC-Z10 employs a precise R2R resistor array for volume control, preserving the original signal at every level.

From quiet listening to full volume, every nuance remains intact, delivering clean, accurate, and faithful sound.

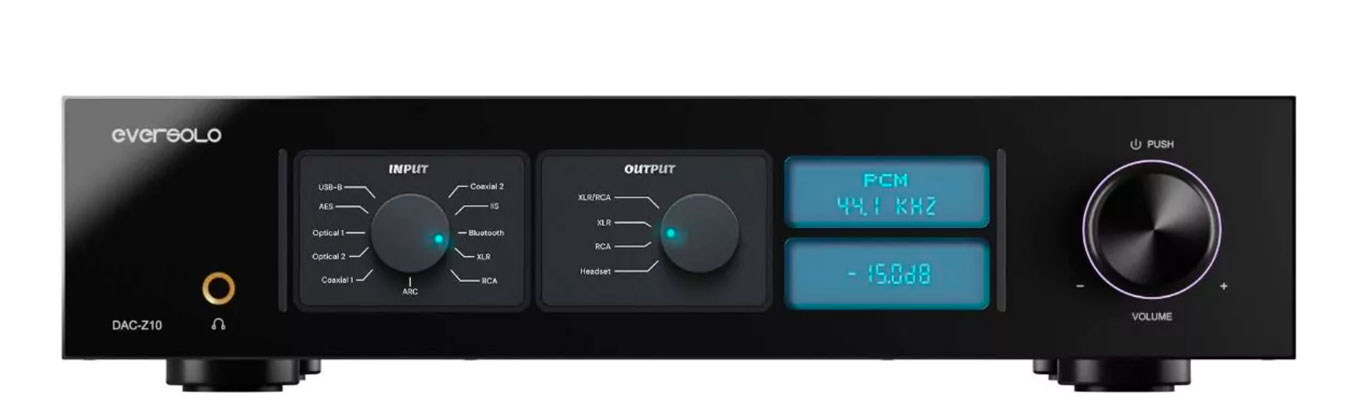

Fully Balanced Preamplifier

The DAC-Z10 features a high-performance fully balanced preamplifier, supporting both XLR and RCA analogue inputs with up to +10dB gain.

Paired with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly enhancing dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.

Eversolo Precision Core™ | Accurate Clock System

OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop Technology.

External 10 MHz & 25 MHz High-Precision Clock Support | FPGA Clock Reconstruction

Phase-Locked Loop Technology

The DAC-Z10 integrates an OCXO temperature-controlled crystal oscillator and PLL (Phase-Locked Loop) technology to achieve precise clock reconstruction.

Accurate timing is fundamental to high-resolution audio reproduction, and with the stability of the OCXO and the precision of PLL correction, the DAC-Z10 ensures that every note is delivered exactly as intended.

External Clock Support

Accurate timing is key to capturing every musical nuance.

By supporting external high-precision clock, the DAC-Z10 takes clock stability and accuracy to the next level.

FPGA Redefined

The DAC-Z10 features a built-in FPGA that shapes IIS data and refines the clock.

Every digital signal is thus optimised to its purest form before reaching the DAC — you can truly hear the difference.

Multi-Core USB Audio Processor

The DAC-Z10 features a multi-core USB audio processor, offering higher processing speed and bandwidth to ensure lossless transmission of high-resolution audio data.

Grounding Post

The DAC-Z10’s grounding post channels noise away, eliminating even minor interference and preserving the purity of each note.

8-Mode IIS Digital Audio Input

Via IIS digital audio input, the DAC-Z10 offers 8 switchable modes and supports up to 768kHz/ 32Bit PCM and DSD512 Native.

Its fully isolated hardware design separates signal and ground between devices, ensuring clean signals and enhanced audio clarity.

HDMI ARC Integration

The DAC-Z10 is equipped with HDMI ARC, supporting both ARC and eARC modes for effortless integration into your home theatre system.

It not only decodes high-fidelity music but also delivers cinematic sound with stunning clarity and realism.

6.35mm Headphone Amplifier Module

The DAC-Z10 has a dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound.

High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.

High Quality Bluetooth Module

The DAC-Z10 features a built-in Qualcomm QCC5125 Bluetooth module.

Whether streaming from your phone or connecting directly via tablet, it delivers a high-fidelity wireless listening experience.

The Balance of Simplicity and Strength

The DAC-Z10’s chassis is crafted from aviation-grade aluminium.

Rigid yet lightweight, it blends precision engineering with refined texture. Sleek in design, yet full of presence.

Smooth Control Experience

The DAC-Z10 features an 8.8-inch IPS touchscreen with a clear and intuitive interface.

Switching inputs, adjusting volume, and checking format information are all at your fingertips.

Multiple Exclusive Colours

To let every user tailor the DAC-Z10 to their personal taste and space aesthetics, they offer multiple knob colours.

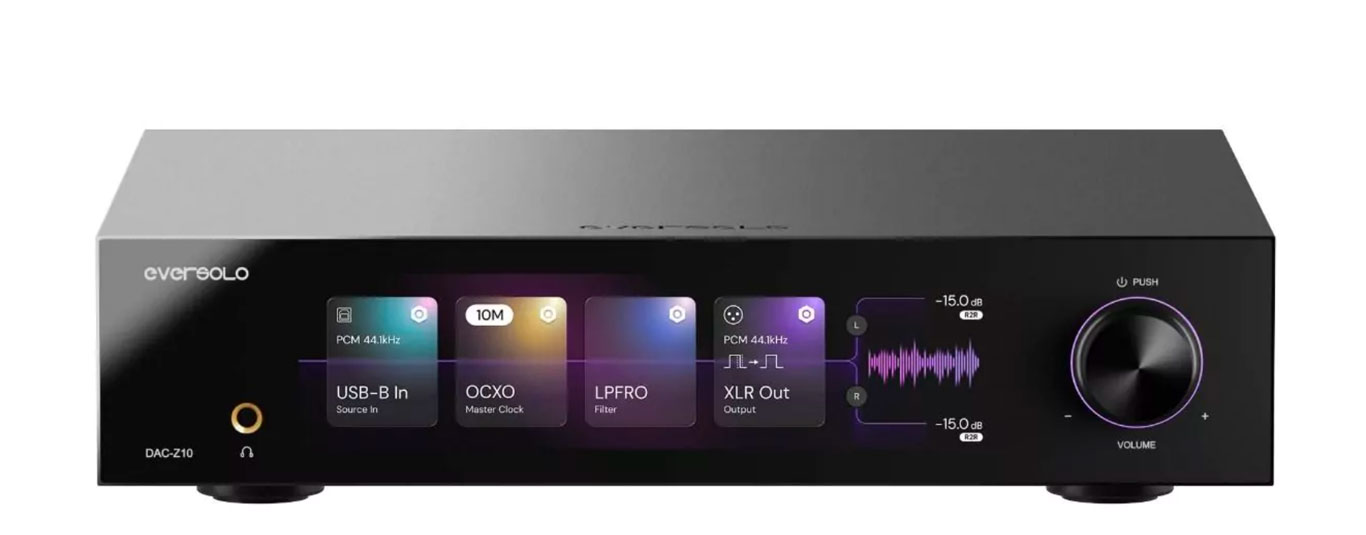

Intuitive Signal Path Display

On this interface, the path of sound is illuminated. Input sources, master clock, filter characteristics, XLR/RCA outputs, and the heartbeat of the R2R left/right channel volume control—all unfold clearly, revealing the full story of your music.

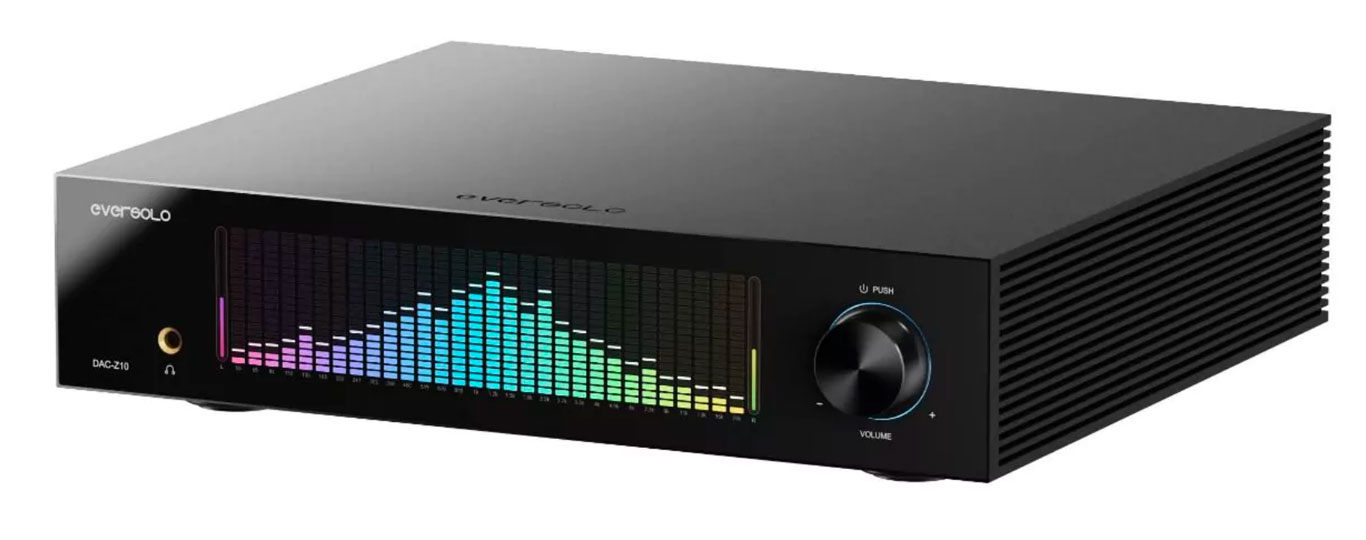

Sonic & Visual Enjoyment

The DAC-Z10 offers a variety of vintage VU meters and dynamic spectrum displays, allowing you to enjoy the visual beauty of sound while listening to music.

With the DAC-Z10, every performance comes alive.

Left/Right Balance Gain

The DAC-Z10 offers up to 15dB of left/right balance gain adjustment, allowing precise tuning of each channel according to your personal listening preference.

With the DAC-Z10, every note reaches your ears accurately.

Customise Your Sound

The DAC-Z10 offers 6 DAC filter characteristics, letting you switch freely to suit different musical atmospheres.

With its versatile filter curves, the DAC-Z10 shapes the sound to match your personal listening taste.

Accurate Signal Transmission

To ensure faithful sound reproduction, the DAC-Z10 offers two XLR polarity modes, allowing precise adjustment according to different system requirements.

This guarantees stable and accurate signal transmission.

Music at Your Fingertips

The DAC-Z10 supports both mobile App control and touchscreen control.

Manage your system remotely from your smartphone, or interact directly via the large touchscreen.

No matter how you choose, your music is always within reach.

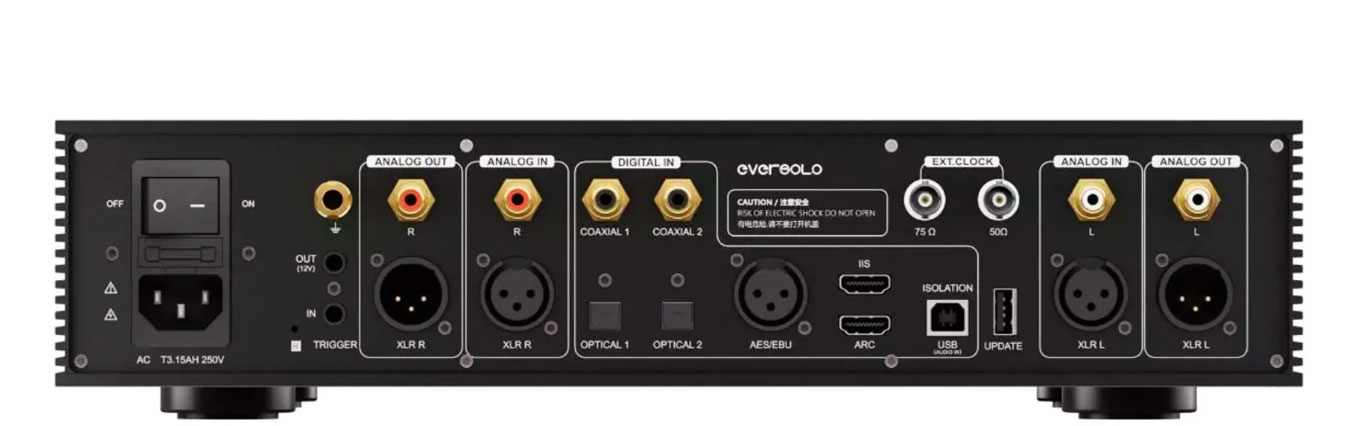

Specifications Eversolo DAC-Z10
