ISOL-8 F Series
CLEAN POWER. INTELLIGENT ENGINEERING.
The ISOL-8 SubStation F Series is the distillation of 27 years of extensive research into electrical power filtration and distribution.
Designed for systems ranging from high-quality domestic setups to true high-end reference systems, the F Series combines ISOL-8’s proven Axis DC blocking, multi-stage Transmodal filtration, cross-contamination control, high-current delivery and surge protection in a beautifully engineered, hand-built enclosure.
The F Series is designed around a simple principle: give every component the type of power it needs, while preventing one component from compromising another.
Dedicated filtered outlets are optimised for source components, while high-current outlets provide power amplifiers with the instantaneous current they demand, without compromising dynamics.
Premium components include ISOL-8 custom-wound chokes, the finest polypropylene capacitors and silver-plated copper PTFE-insulated wiring. A CNC-machined 10mm aluminium front panel completes an enclosure built for a lifetime of reliable service.

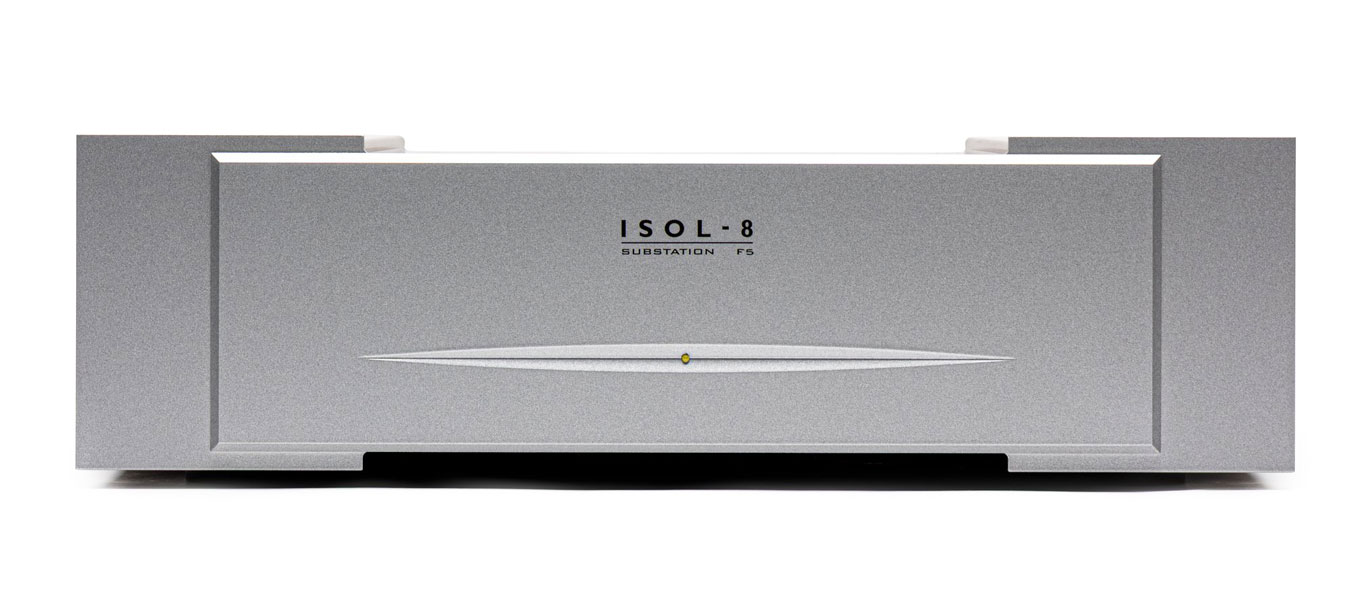

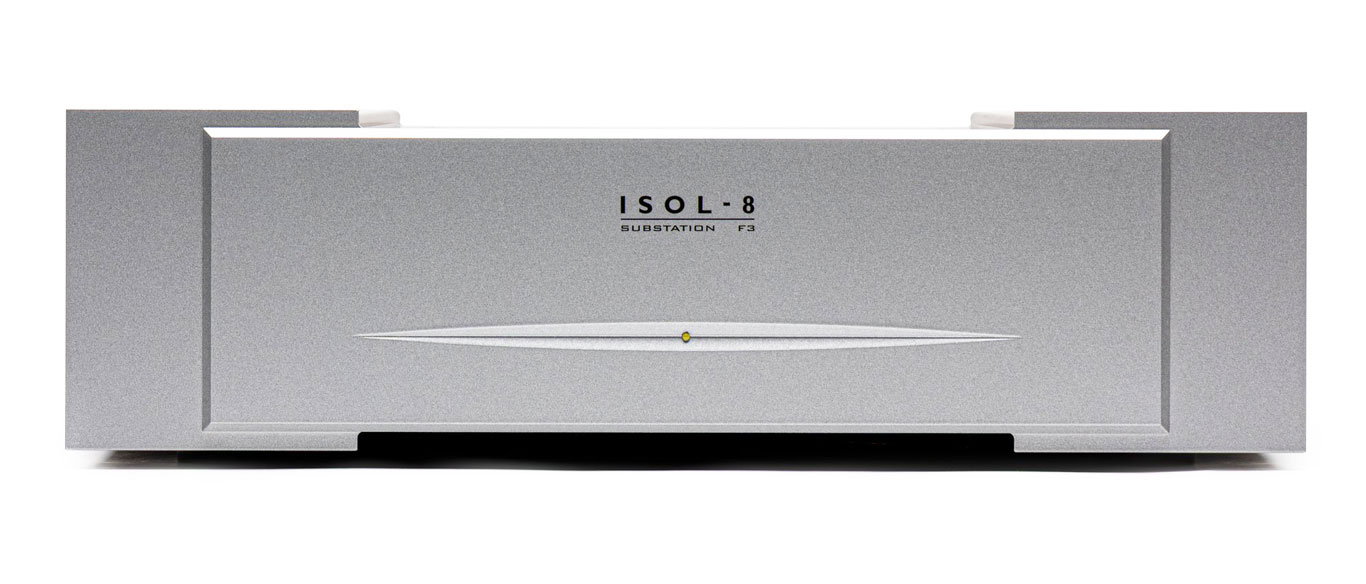

Available in silver or black, and hand-built in Worcestershire, England, the F Series provides a powerful, sophisticated and dynamically transparent foundation for high-performance audio and AV systems.
The result is clean, controlled power that provides the foundation to allow your system to perform at its full potential all of the time.

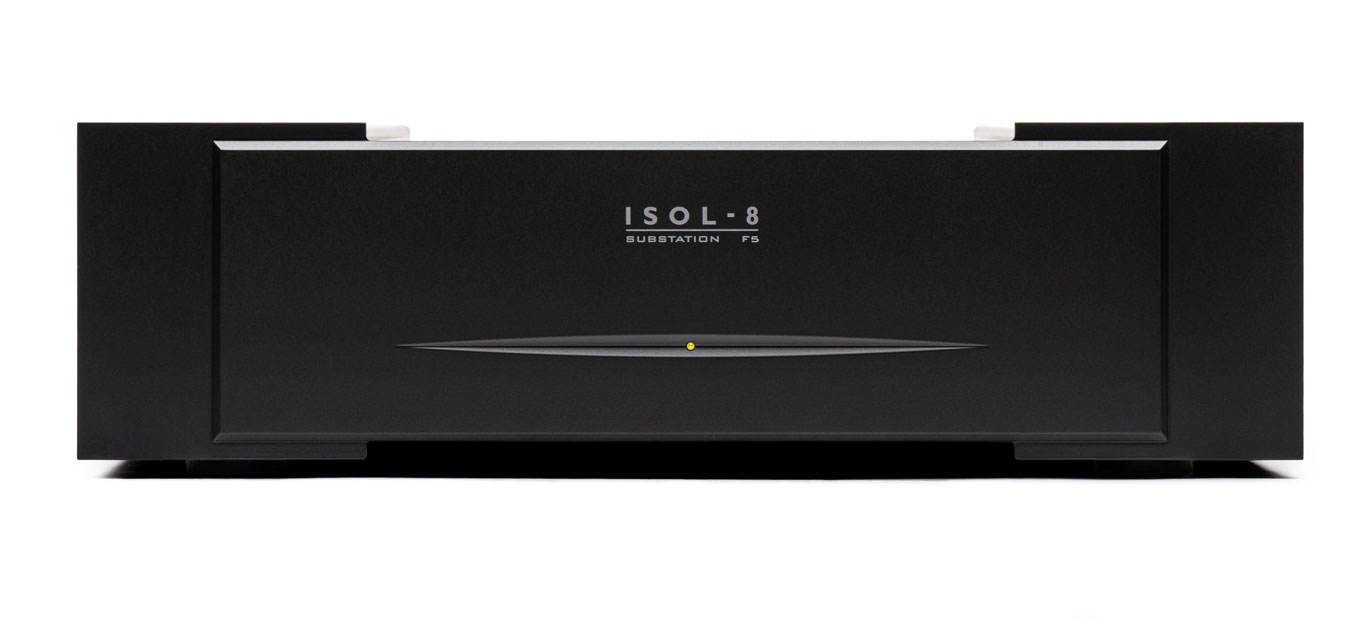

F SERIES Technology
Engineered Without Compromise
The F Series uses carefully selected components throughout, including ISOL-8 custom-wound chokes, premium polypropylene capacitors and silver-plated copper wiring with PTFE insulation. Very carefully engineered layouts within the enclosure further enhance the overall performance.

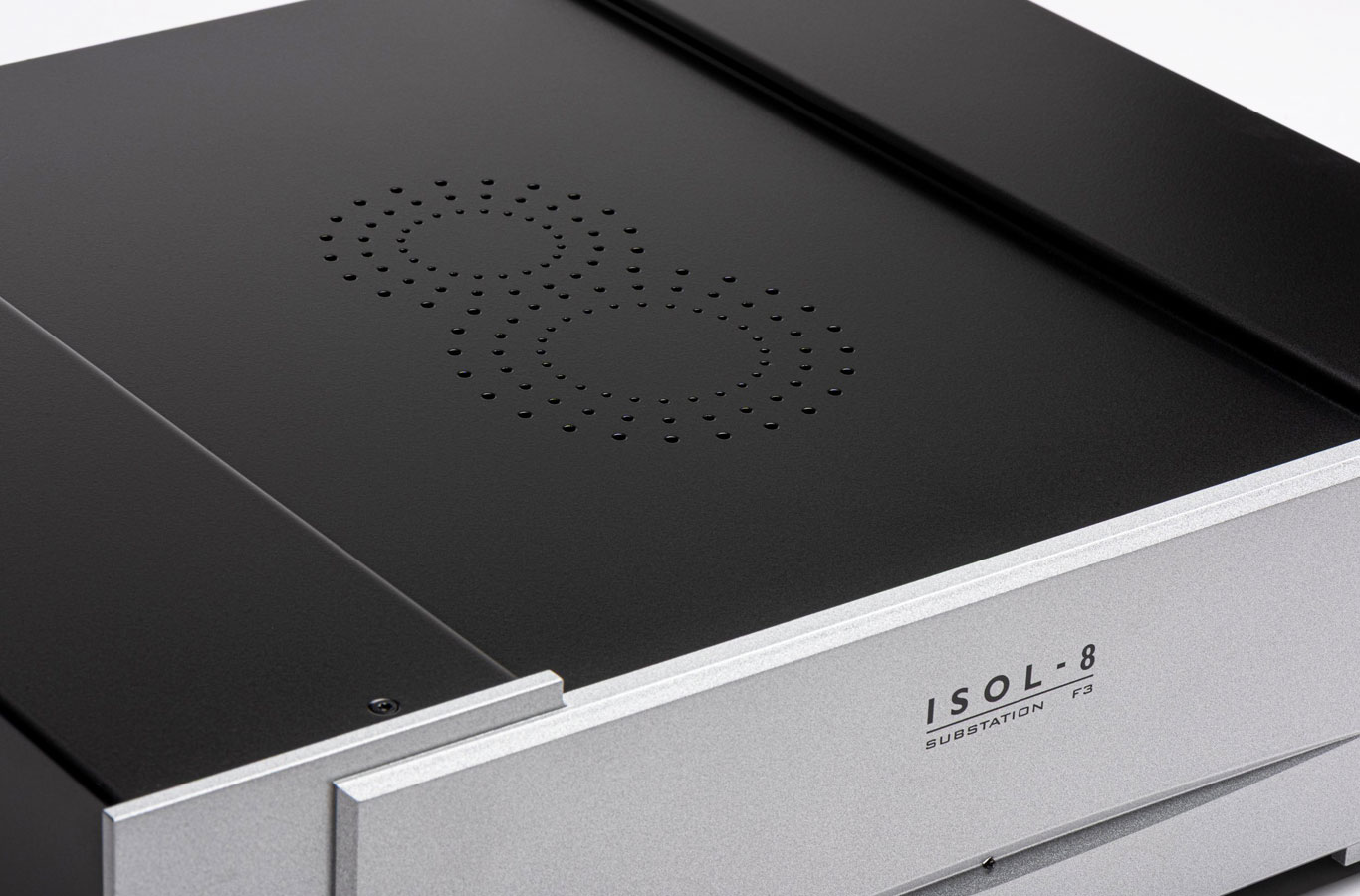

Each unit is hand-built in Worcestershire, England, and housed in a substantial enclosure featuring a CNC-engineered 10mm aluminium front panel.
The F Series isn’t simply a mains distribution block.
It is a carefully engineered power-management system, designed to provide the clean, stable and dynamically transparent electrical foundation that high-performance audio deserves.
ISOL-8 F Series – SPECIFICATION

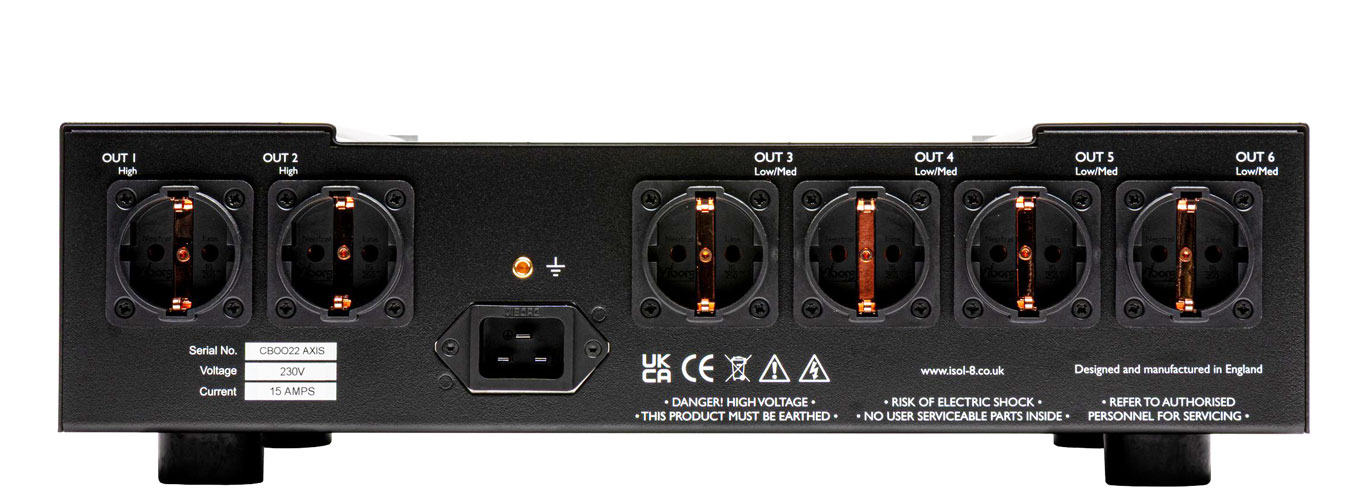

| AXIS F3 SPECIFICATION | |
| Number of outlets: | 6 |
| Dimensions (width x depth x height): | 450 x 375 (excluding connectors) x 132mm |
| Packaged dimensions: | 555 x 500 x 300mm |
| Weight: | 10kg |
| Packaged weight: | 13.2kg |
| Power inlet: | 10 Amp IEC Type C14 Inlet (for C13 connector) 20 Amp IEC Type C20 Inlet (for C19 connector) Neutrik powerCON® type NAC3MPXXA (for NAC3FXXA connector) |
| Input voltage: | 230VAC version: 220–240VAC |
| Input frequency: | 50Hz or 60Hz Nominal |
| Maximum continuous current (shared across all outlets): | 15 Amps (10 amps with C14 inlet) |
| Maximum continuous current across all Low/Med outlets: | 6 Amps |
| Protection: | Switchable circuit breaker |
SubStation AXIS F5SPECIFICATION |
|
| Number of outlets: | 7 |
| Dimensions (width x depth x height): | 450 x 375 (excluding connectors) x 132mm |
| Packaged dimensions: | 555 x 500 x 300mm |
| Weight: | 11.7kg |
| Packaged weight: | 15kg |
| Power inlet: | 10 Amp IEC Type C14 Inlet (for C13 connector) 20 Amp IEC Type C20 Inlet (for C19 connector) Neutrik powerCON® type NAC3MPXXA (for NAC3FXXA connector) |
| Input voltage: | 230VAC version: 220–240VAC |
| Input frequency: | 50Hz or 60Hz Nominal |
| Maximum total continuous current (shared across all outlets): | 15 Amps (10 Amps with type C14 inlet) |
| Maximum continuous current across all Low/Med outlets: | 6 Amps |
| Protection: | Switchable circuit breaker |
