JL Audio Pavilion Outdoor subwoofer

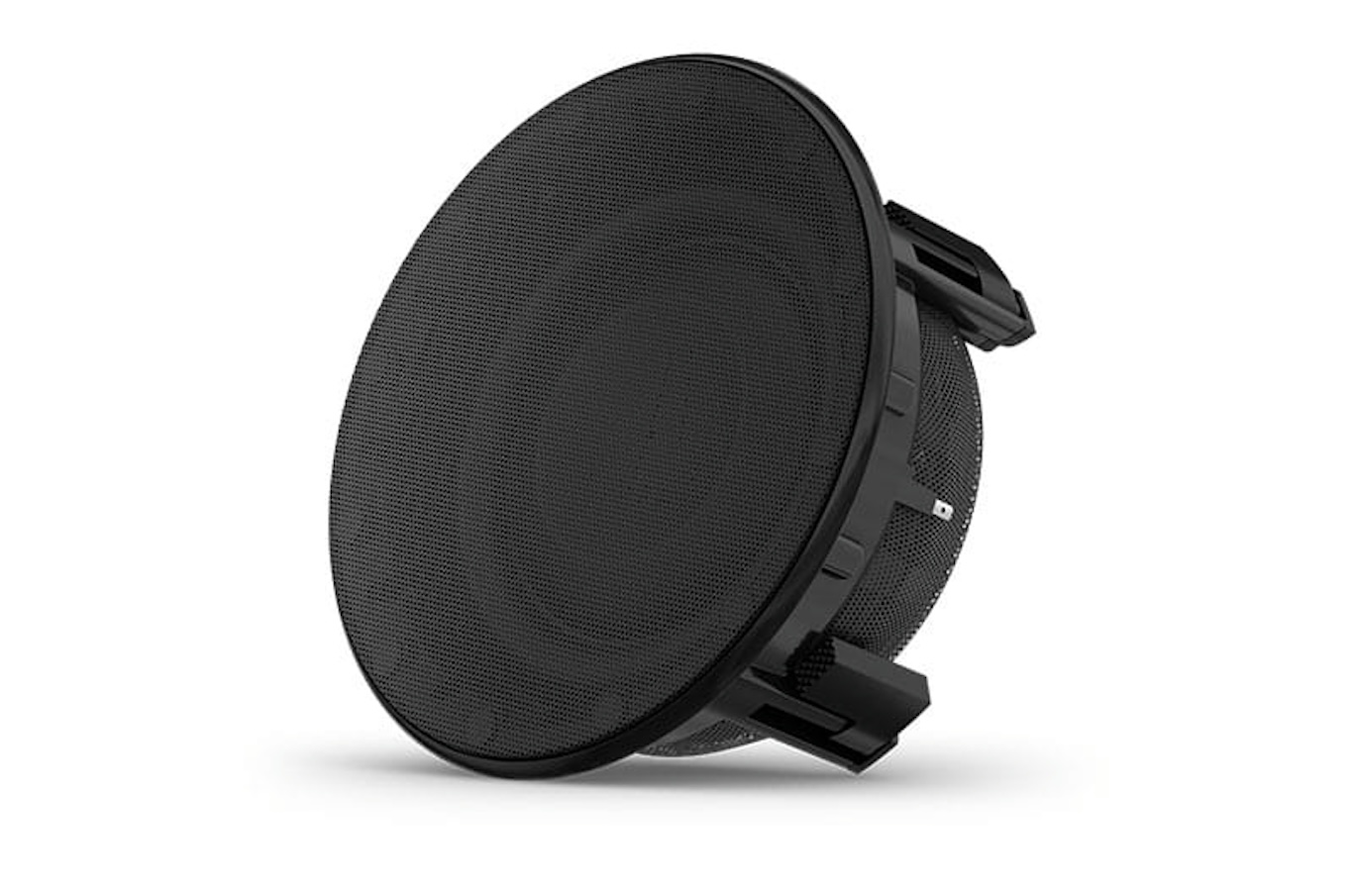

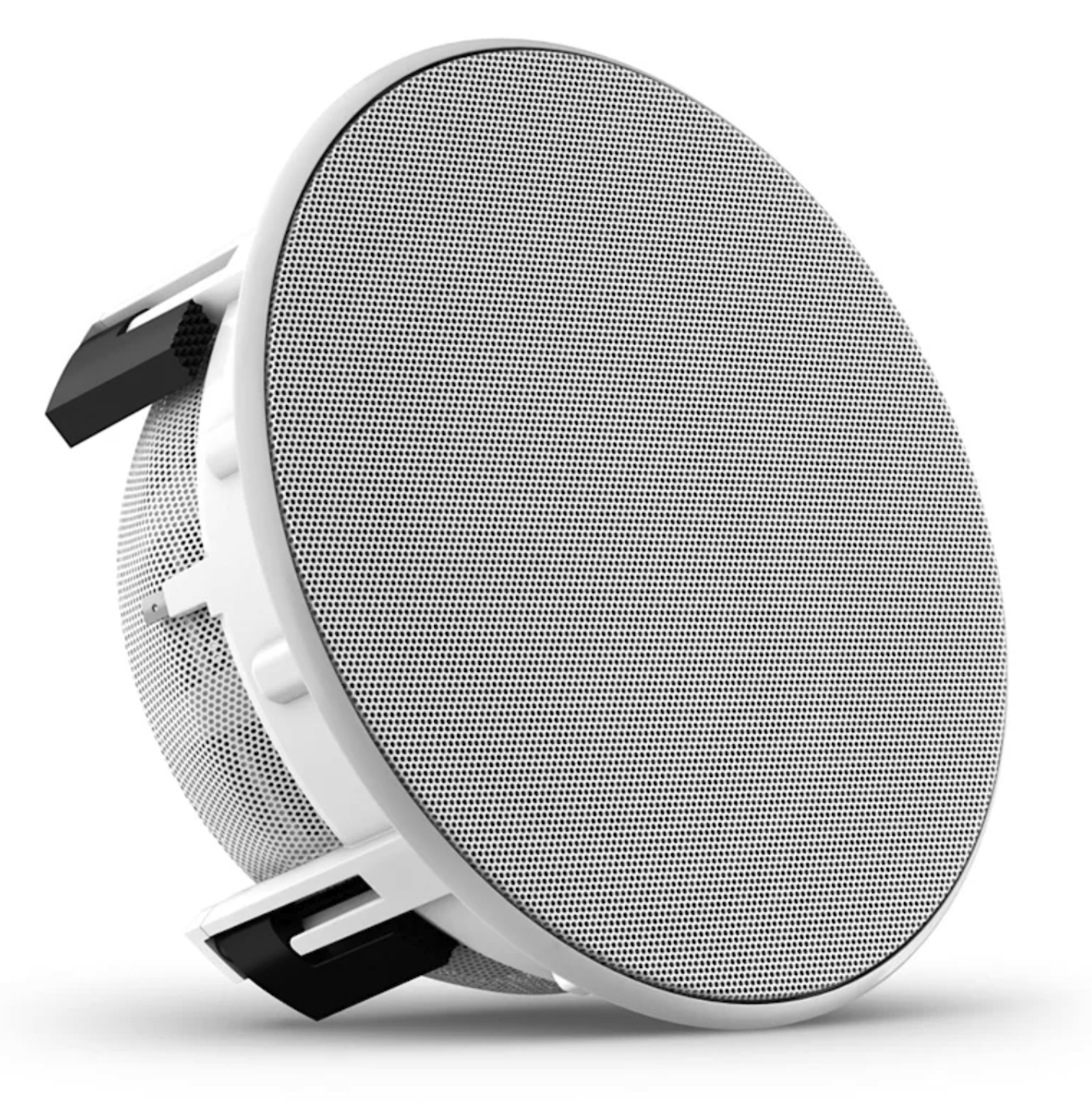

JL Audio Pavilion Outdoor Thin-Line subwoofer

Installation Outdoor Subwoofer

POWERFUL BASS IN ANY SPACE

Elevate your home sound system with this shallow mount 8″ subwoofer that’s easy to install wherever you need it most, indoors or outdoors.

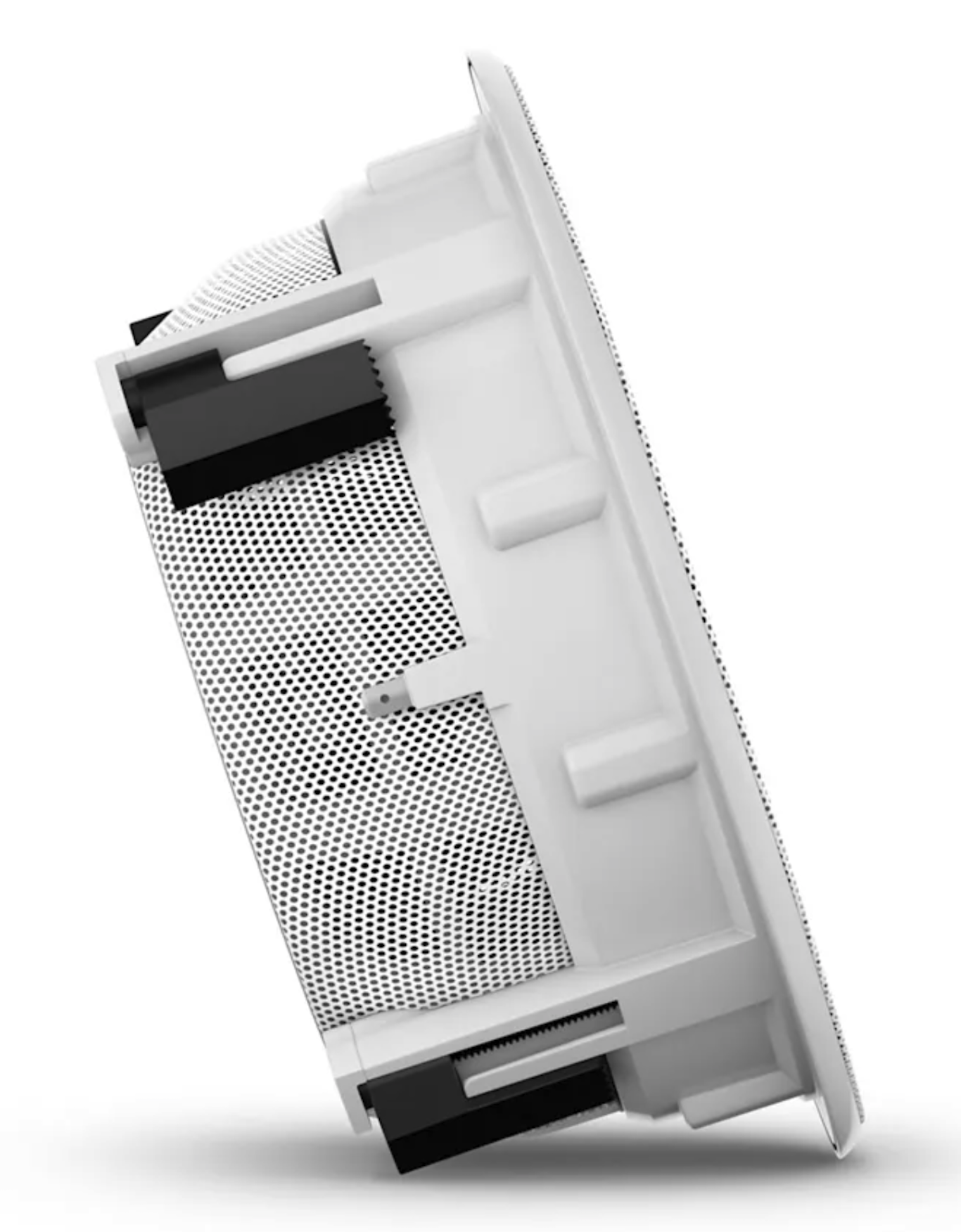

SHALLOW MOUNT

The 96.5 mm (3.8″) shallow mounting depth allows for installation in stud bays with standard construction materials consisting of two-by-four wall framing and 0.5″ drywall.

EASY TO INSTALL

An infinite-baffle design allows for installation without a dedicated enclosure.

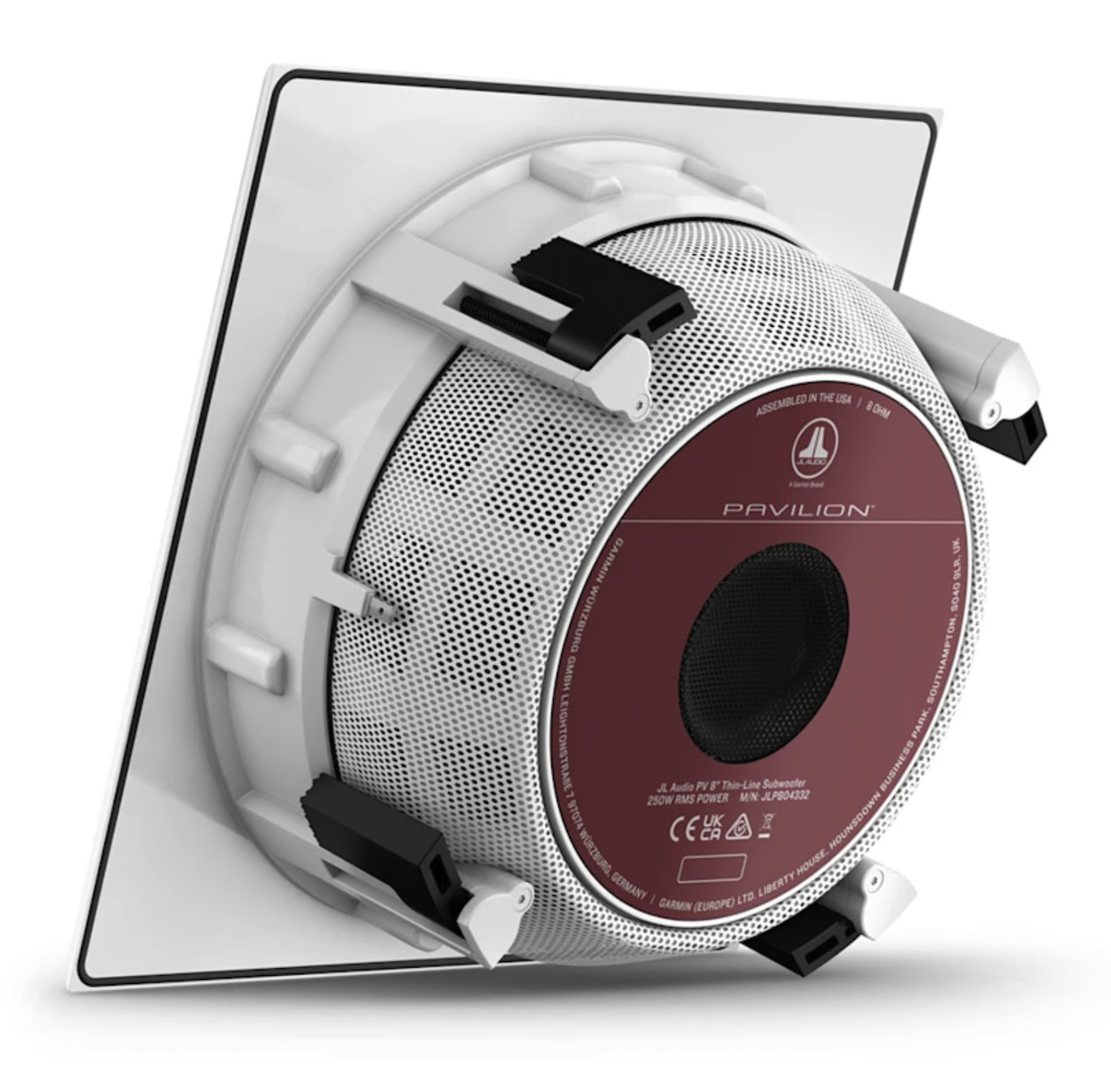

Their dog-leg mounting system allows for placement in a variety of materials and locations — without the need for a backplate.

REAL-WORLD CERTIFIED

Pavilion speakers meet or exceed ASTM standards for salt-fog exposure as well as UV exposure.

They utilise marine-grade materials and components specifically designed for harsh environments.

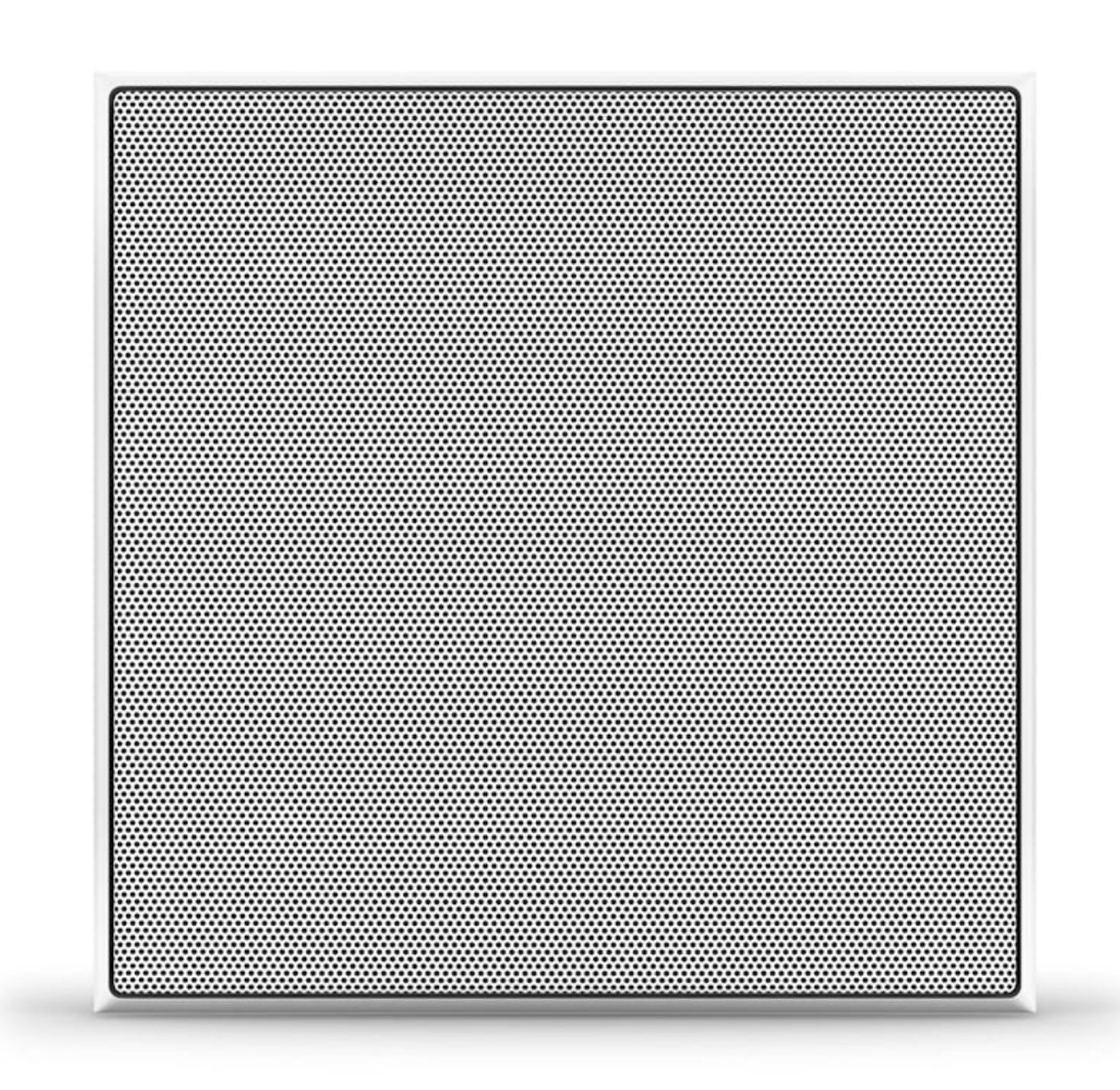

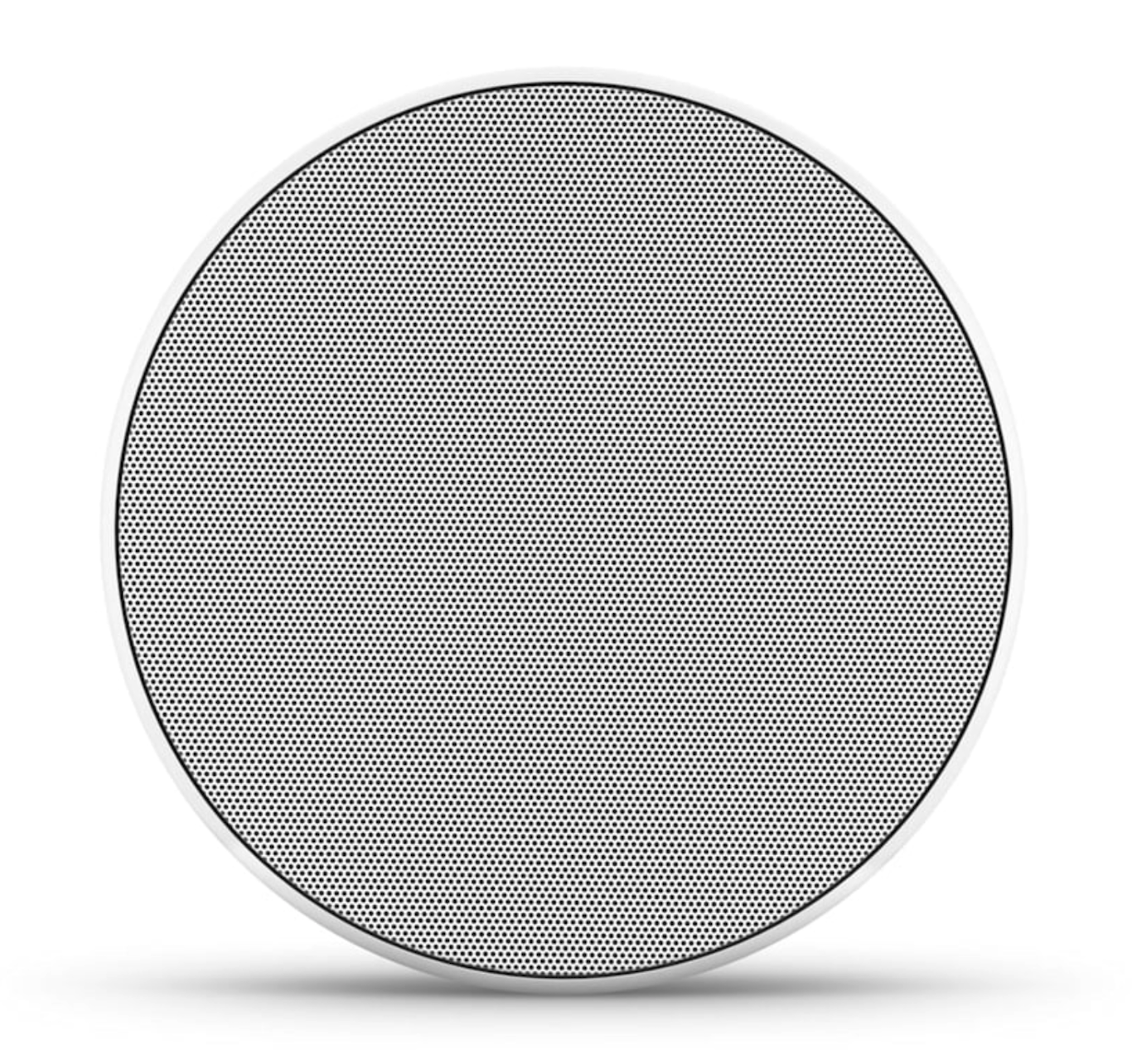

FLUSH-MOUNT GRILLE

The ultra-thin, fine-mesh design attaches magnetically for a discreet visual appearance.

Plus, it matches the look of the Pavilion outdoor in-ceiling speaker.

CONCENTRIC TUBE SUSPENSION™ DESIGN

Their unique Concentric Tube Suspension design allows the motor system to be placed higher in the cone body — compressing subwoofer depth while still permitting excellent mechanical excursion.

DMA-OPTIMISED DESIGN

Proprietary motor, suspension and cone modelling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.

The result is tight, clean, articulate bass performance at all power levels.

JL AUDIO PAVILION THIN-LINE OUTDOOR SUBWOOFER TECHNICAL SPECIFICATIONS

Warranty – 3 years

Sizes – 8″ (Round)/8″ (Square)

Colour – Satin Black or Satin White

Physical dimensions – (Diameter) 254 mm (10″)

Physical dimensions – (Depth) 8″ (Round): 107 mm (4.2″), 8″ (Square): 105 mm (4.1″)

Weight – 3.4 kg (7.5 lbs)

Water and dust rating – IPX5

Speaker type – Infinite Baffle

Continuous power handling (RMS) – 250 W

Sensitivity (SPL @ 1 W/1 m) – 83.2 dB

Nominal impedance – 8 Ω

Recommended amplifier power (RMS) – 50-250 W

Cone material – Injection-moulded, mica-filled polypropylene

Mounting Dimensions

Mounting panel thickness – Minimum: 6 mm (0.25″), Maximum – 41 mm (1.625″)

Mounting depth clearance – 96.5 mm (3.8″)

Frontal grille protrusion – 8″ (Round): 10 mm (0.4″), 8″ (Square): 9 mm (0.34″)

Mounting hole – 229 mm (8.96″)

Driver displacement – 1.53 L (0.054 cu ft)
