Lumin P2

Lumin P2

Network Hub

Why LUMIN P2?

Building on the multi-award-winning foundation of P1, LUMIN P2 establishes a new reference for their ‘Network Music Hub’ family.

By combining their latest high-capacity processor with a flagship Dual ES9038PRO DAC stage, Lumin have increased both processing headroom and precision.

This increased precision is supported by a dual-toroidal power supply and Lundahl output transformers, providing the high-current, isolated foundation required to maintain signal integrity from input to output.

It is the definitive ‘all-in-one’ — a world-class streamer, DAC, and pre-amplifier in a single, un-compromised chassis.

Lumin P2 Main features

LUMIN P2 makes system integration easier than ever:

• 9 digital & analogue inputs
• USB digital audio input & output support up to Native DSD512
• Balanced & unbalanced analogue inputs
• SPDIF & AES input support up to 192/24 & DoP
• HDMI 2.0 inputs & 4K passthrough with ARC support

Specified for exceptional musical performance:

• New processor delivers native DSD512 & PCM384 playback
• Dual Mono design throughout maximises channel separation
• Dual ES9038PRO SABRE DACs in Mono mode
• Femto Clock System with precision FPGA distribution
• New integrated dual-toroidal linear power supply & all-in-one chassis
• Fibre Network provides complete isolation from network digital noise
• Leedh Processing lossless volume control

P2 features a total of 9 inputs provide enough flexibility for any audio or video stereo system:

USB

• Industry-leading XMOS USB audio controller
• Native DSD512 and PCM384 compatible
• Windows 10 & Mac OS compatibility

Analogue

• Balanced and Unbalanced analogue input
• LEEDH volume processing
• Passthrough function for home cinema integration with custom naming functionality

SPDIF/AES

• DoP64 / 192 kHz 24-bit compatible
• TOSLINK, SPDIF (RCA), AES inputs

HDMI

• HDMI 2.0 Specification compatible
• Supports 2.0 PCM audio decoding
• HDR, Dolby Vision, Dolby Atmos, DTS passthrough
• ARC compatible output
• ARC CEC volume and mute control

X-Series Heritage

LUMIN P2 inherits the core engineering found in their flagship series, combining high-performance digital architecture with their most refined analogue stages.

Dual ESS SABRE ES9038PRO

LUMIN P2 utilises these top-of-the-range 32-bit, 8-channel DAC chips in a dual-mono configuration.

By dedicating a flagship-tier DAC to each channel, they maximise hardware precision and processing headroom.

This represents Lumin’s most advanced implementation of the SABRE platform, providing a robust digital foundation for the entire system.

Output Buffer Design

The fully balanced dual-mono analogue output stage features the same Lundahl transformers found in their top-tier players.

This design has been a cornerstone of every flagship LUMIN model, ensuring maximum signal isolation and integrity.

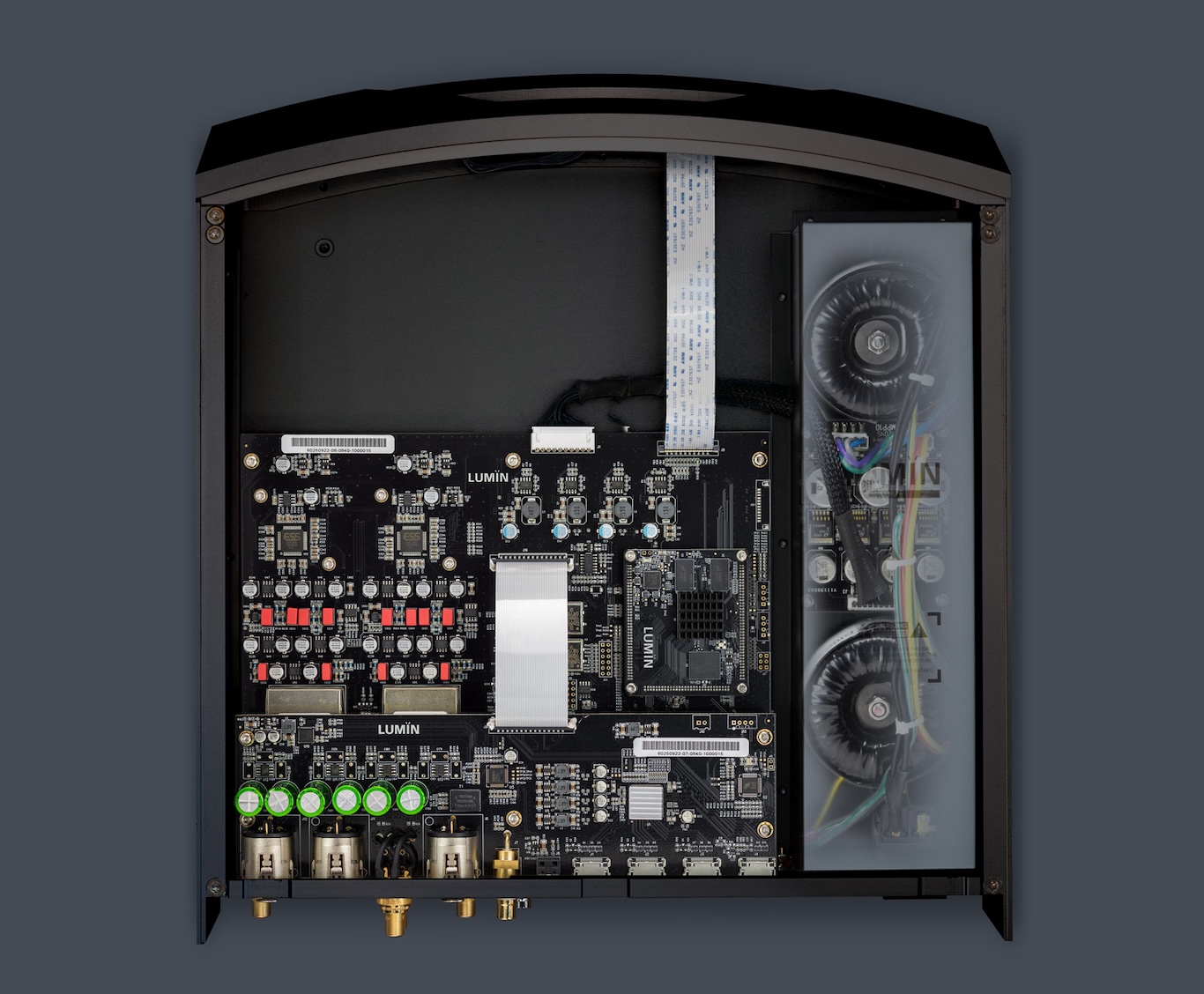

Dual-toroidal Power Supply

The generous P2 chassis allows us to bring the X-series specification toroids inboard for a streamlined, single-box installation.

This layout retains all the performance benefits of separate analogue and digital power rails while achieving a cleaner, more integrated aesthetic.

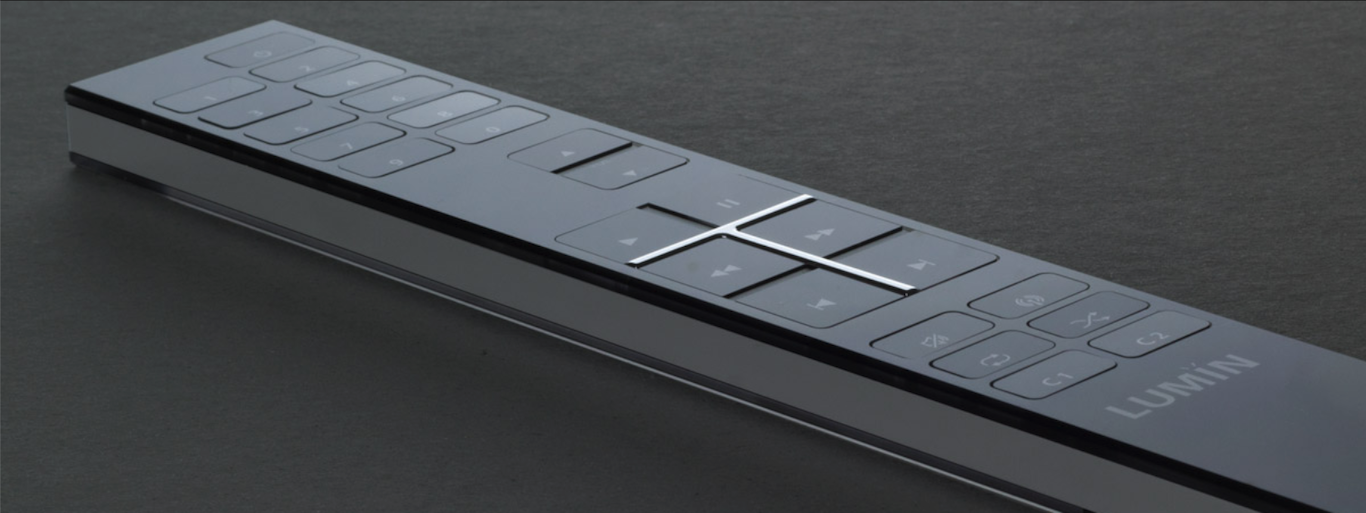

Included Remote Control

The Lumin tactile infrared remote control allows easy change of input, volume adjustment, playlist navigation and more.

The exceptionally well-constructed acrylic and zinc LUMIN remote is made in Austria and is entirely Roon Ready.

The infrared receiver built in to LUMIN P2 is compatible with universal remote controls, phones and automation systems.

Flexible setup options

Use as a streamer, a DAC, a pre-amplifier or all three!

Option 1 – Streaming DAC

LUMIN P2 can be used like all other LUMIN players.

With its ES9038PRO DAC chips, DSD512/PCM384 support, Femto Clock System, Fibre Networking, toroidal power supply, and Leedh Processing, P2 is second only to LUMIN X2 in pure streaming ability.

Option 2 – Hi-Fi Hub

Connect all your stereo sources to LUMIN P2 and attach a power amplifier and you’ve got everything you need for an incredible music system.

Option 3 – 2-channel TV System

No need for an AV Receiver. Simply attach your HDMI sources to LUMIN P2 and P2 to your TV. With HDMI ARC, all your audio comes through your main speakers.

The perfect partnership

Pairing LUMIN P2 with the LUMIN Amp creates a streamlined, ultra-high-performance audio system.

By eliminating a traditional pre-amplifier, you remove an entire stage of electronics that often adds noise and coloration, bringing you closer to the original recording.

Leedh Processing lossless volume control ensures that even at low listening levels, your music retains its full dynamic range and detail, making a separate analogue pre-amp redundant.

Use LUMIN P2 as your system’s hub to manage nine digital and analogue inputs, with seamless switching through the Lumin App

The LUMIN Amp’s high input impedance is specifically designed to be driven directly by LUMIN sources, maximising the transparency of LUMIN P2’s dual-mono DAC design.

Latest processing system

LUMIN P2 features their latest processing platform, providing a significant increase in capacity and resampling flexibility.

This extra headroom allows for more flexible upsampling options for every supported format and ensures that P2 is future-ready for years of firmware enhancements.

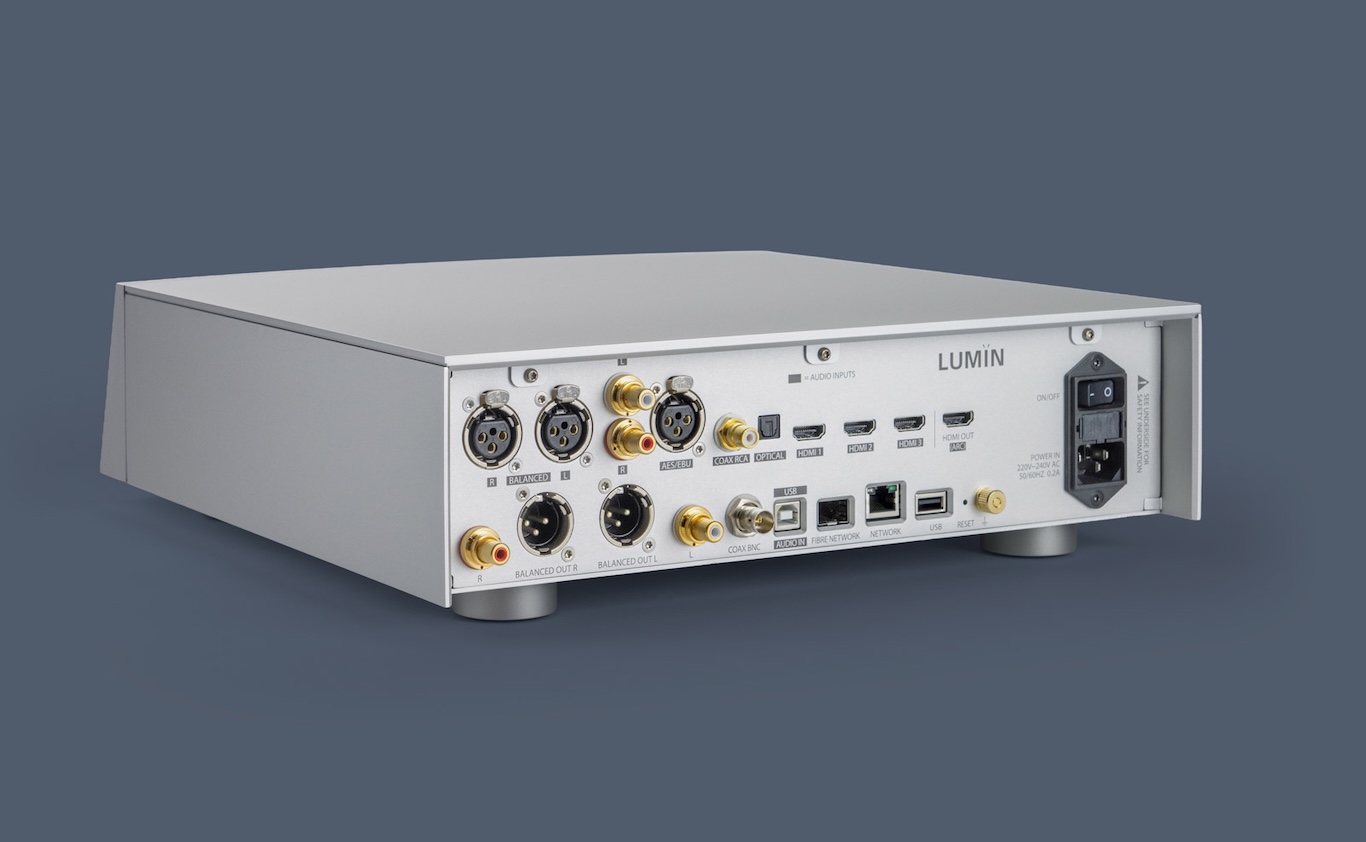

Lumin P2 Specification

Network playback:

• Up to DSD512
• Up to 384 kHz, 16–32-bit, Stereo
• MQA Full Decoding

Upsampling rates & bit depths:

• DSD256 upsampling option for all files
• PCM 384kHz upsampling option for all files

Digital Input:

• USB:USB Audio Class 2 Compatible
• WINDOWS 10 (Release 1703 or above) / Mac OSX or above
• DoP 128 support
• PCM 44.1–384 kHz, 16 / 32-bit, Stereo
• AES/OPTICAL/SPDIF: PCM 44.1 kHz–192 kHz, 16–24-bitDSD64 (DoP64, DSD over PCM)
• HDMI x3: PCM 2.0 Audio support, 4K Video Passthrough

Digital Output:

• USB: Native DSD512 support, PCM 44.1–384 kHz, 16–32-bit, Stereo
• BNC SPDIF: PCM 44.1 kHz–192 kHz, 16–24-bit, DSD64 (DoP64, DSD over PCM)
• HDMI x1:(HDMI Passthrough and ARC support)
  PCM 2.0 Audio support
  4K Video Passthrough
  ARC (Audio Return Channel) support
  ARC CEC volume and mute control

Analogue Input:

• RCA Unbalanced x1
• XLR Balanced x1

Analog Output:

• Dual ESS SABRE32 ES9038Pro DAC chips
• Fully balanced layout with high-quality components
• Output connectors coupled with dual LUNDAHL LL7401 output transformers
• Femto Clock System with precision FPGA distribution

Optical Network:

• Industry-standard Gigabit SFP
• 1000Base-T Gigabit Ethernet
• Adapter may be needed for your particular switch/cables
• Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

Power Supply:

• Internal dual-toroidal
• Separate digital & analogue circuitry
• Low-noise linear regulator

Physical:

Finish: Black anodised aluminium, Raw aluminium

Lumin (solid aluminium chassis):
350mm (W), 380mm (D), 107mm (H), 12kg
