Luxman D-03R

£4,500.00

The Luxman the D-03R features LUXMAN’s traditional left-side mechanical layout, ensuring an ideal signal flow.

1 in stock (can be backordered)

Luxman D-03R

CD player

The Luxman D-03R is the successor to the D-03X, a digital media player released in 2020 that was well received for its ability to process high-resolution audio sources as well as CDs.

For optimal playback of the CD format, which has been a staple of music media for over 40 years, the D-03R features LUXMAN’s traditional left-side mechanical layout, ensuring an ideal signal flow.

A robust chassis structure minimises vibrations, supporting accurate disc reading.

At the core of its digital playback system, the D-03R is the first to adopt ROHM’s BD34352EKV DAC chips in a dual-mono configuration.

This player also offers a wide range of digital inputs, allowing connections to a PC or network transport such as the NT-07.

The DAC processors support data rates of up to 384kHz/32bit for PCM and 22.5MHz for DSD signals via the USB input, and up to 192kHz/24bit for PCM data via the COAX/OPT input, providing a powerful digital-to-analogue conversion environment.

Their refined analogue circuitry utilises fully balanced I/V conversion to handle the differential outputs of the DAC chips.

The unit also features a finely tuned output amplifier block, enhanced with LUXMAN’s custom components, delivering a powerful drive output to subsequent hi-fi components.

This is evidenced in the excellent sound quality inherited from our higher-end D-10X and D-07X models.

To ensure a stable voltage supply to each circuit element, the D-03R incorporates a highly stable power supply system with independent circuit power regulation and large-value filter capacitors dedicated to each of the mechanical, digital, and analogue systems.

The exterior design combines intuitive controls with a newly adopted, large OLED display for excellent visibility.

The front panel features a sleek, square-edged front panel in an elegant Blasted White finish, creating a simple yet elegant aesthetic that enhances any listening space.

The D-03R is a state-of-the-art digital media player that has been designed to preserve the value of our listeners’ CD collections with supreme sound quality, while also supporting high-resolution audio source inputs, including the latest streaming services.

Luxman D-03R Features

Drive Mechanism

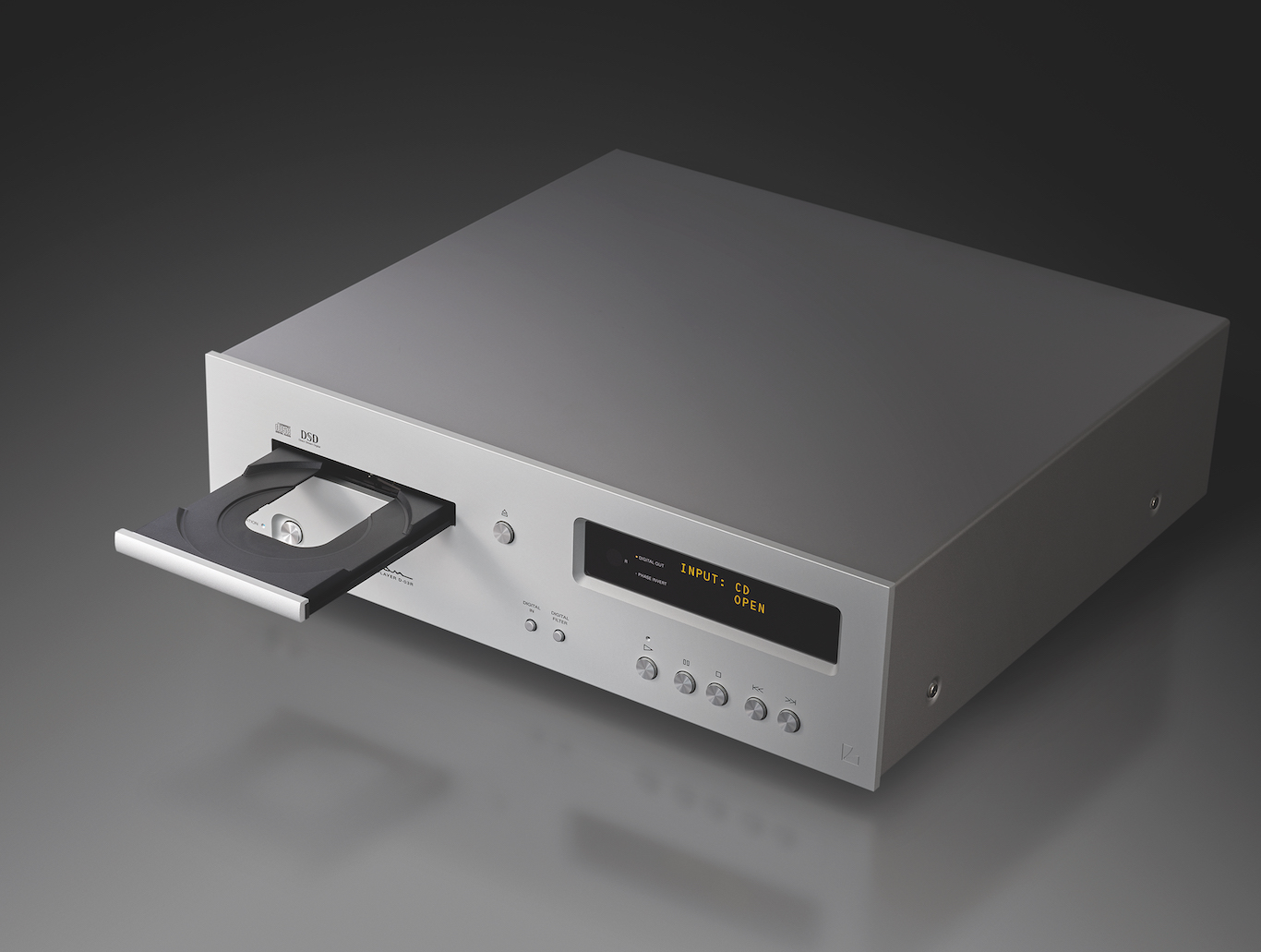

– Equipped with a dedicated single-laser drive optimised for CD playback, ensuring responsive operation as a simple, long-lasting engineering piece.

– Features an asymmetric left-side mechanical layout, positioning the drive mechanism, digital and analogue circuitry in optimal locations to allow for optimal signal flow, vibration control, and weight balance.

– A rigid box structure encloses the entire mechanism, incorporating a top plate and a newly adopted 3.2mm ultra-thick steel plate mounting base to isolate external vibrations and enable high-precision, stable digital signal reading.

Digital Circuit

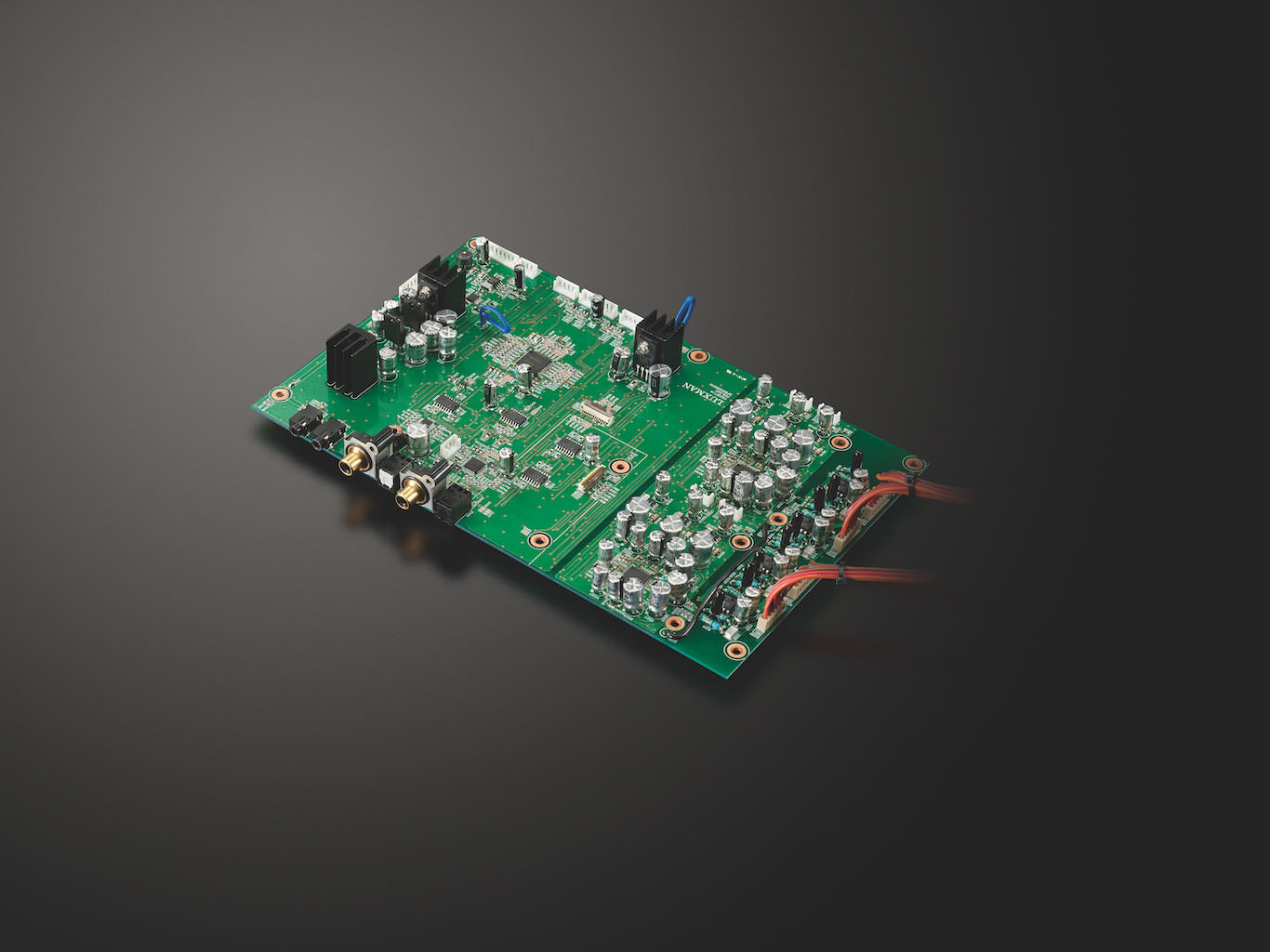

– Utilises ROHM BD34352EKV DAC chips in a dual-mono configuration for high-quality digital-to-analogue conversion.

– Supports PCM 384kHz/32bit and DSD 22.5MHz via USB input, and PCM 192kHz/24bit, DoP (DSD) 2.8MHz via COAX/OPT input.

– Includes a full MQA decoder, supporting MQA format playback across all inputs (MQA-CD, USB, COAX, OPT) with a bypass function.

– Features a high-precision, ultra-low phase noise clock module, reducing noise around oscillation frequencies for improved sound quality.

– Offers a selectable filter function, allowing users to customise the sound (PCM: two digital filter modes when MQA bypass is active, DSD: two analog FIR filter modes).

– Implements various jitter reduction features optimised per input (USB: asynchronous transmission via dedicated DSP, COAX/OPT: high-precision clock via built-in DAIR).

Analogue Circuit

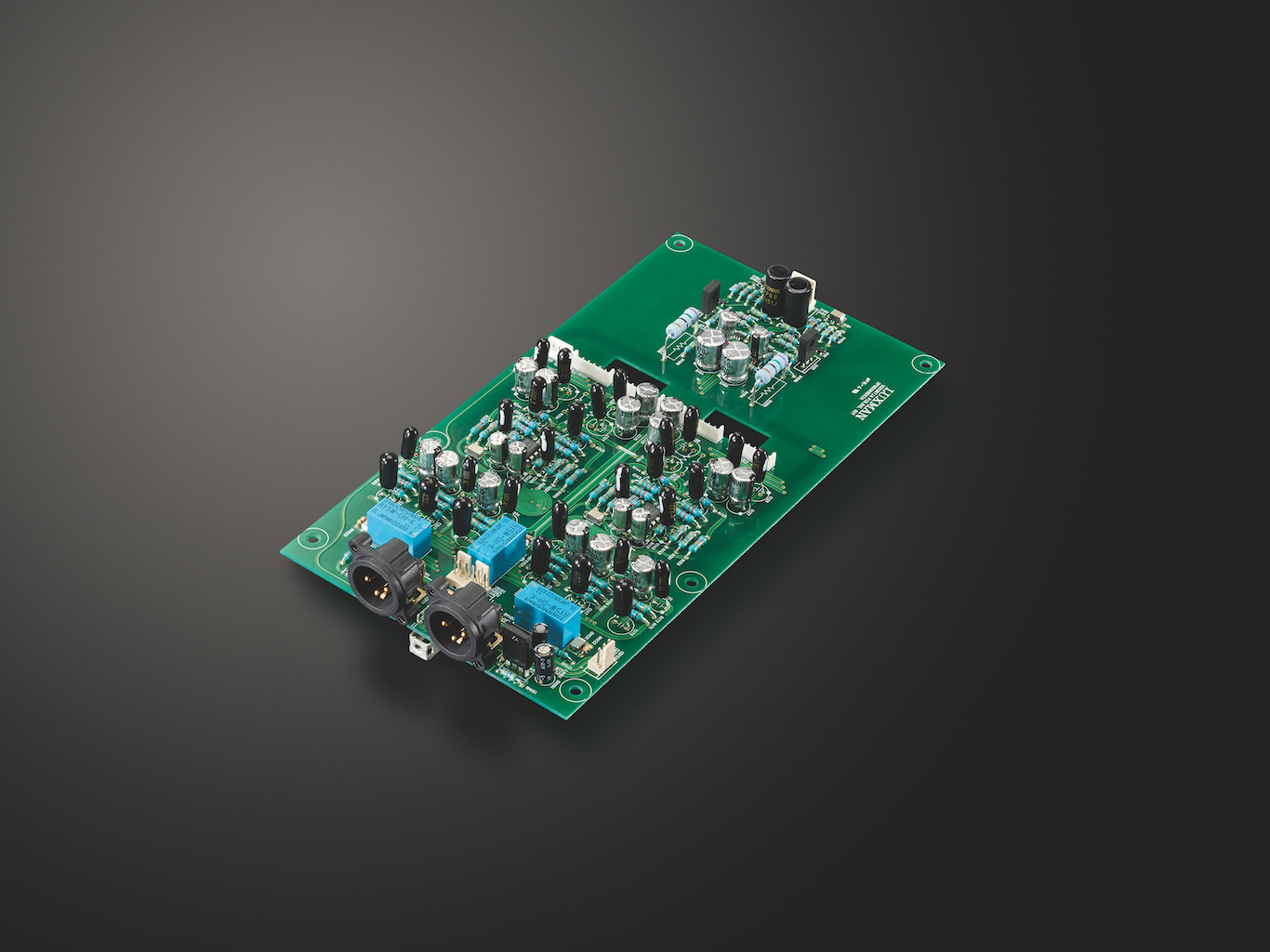

– Features fully balanced buffer circuitry (four identical amplifier units) that cleanly drives the differential outputs from the dual mono-mode DACs.

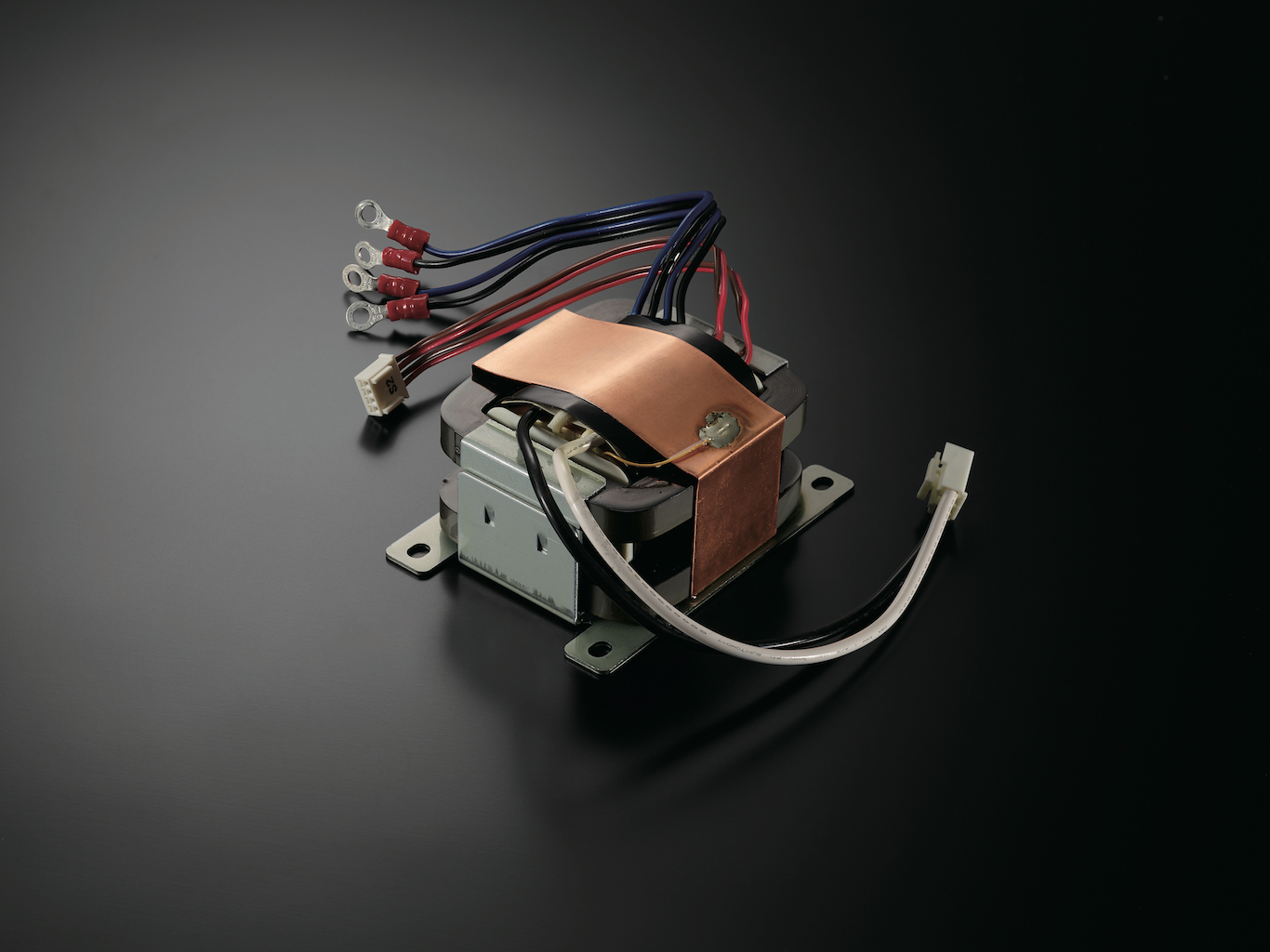

– Adopts a highly stable power supply, incorporating a large power transformer, independent regulators for each circuit and large value filter capacitors (DAC circuit capacitor capacity doubled from 3,300μF to 6,600μF) for stable, high-quality power delivery.

– Uses smoothly rounded-pattern PCB traces to ensure smooth current transmission while preserving the integrity of delicate audio signals. – Employs OFC (Oxygen-Free Copper) non plated internal wiring to enhance natural signal transmission.

Design & Construction

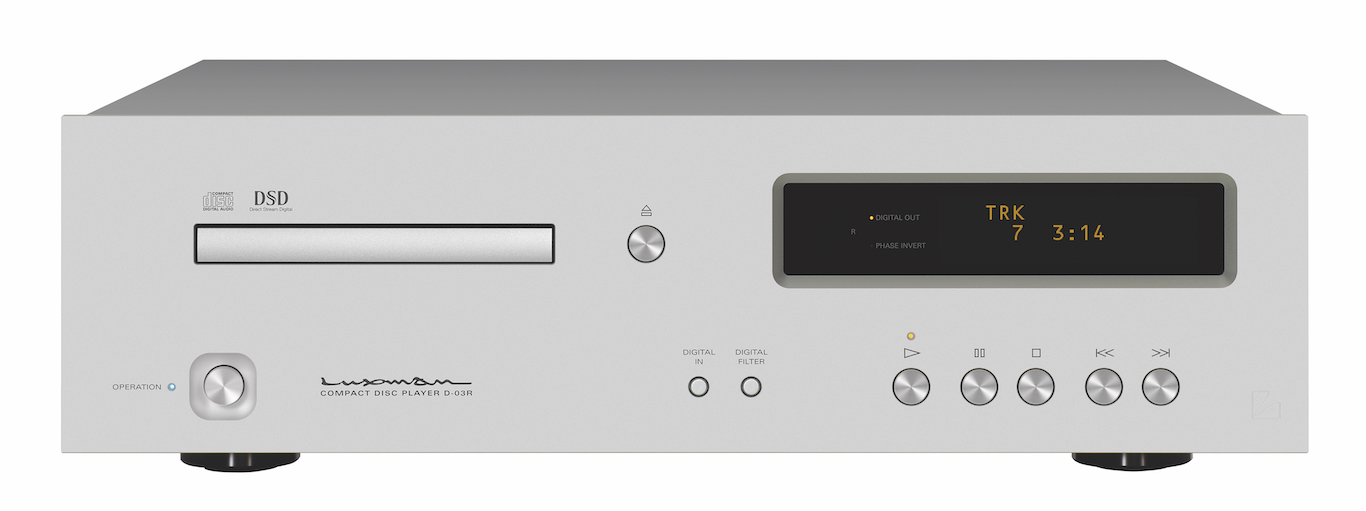

– Features a sleek, square-edged front panel in an elegant Blasted White finish, designed to complement any listening room.

– Equipped with a high-definition OLED display with four brightness levels, zoom display, and auto-dimming functionality.

– Built with a loopless chassis that isolates grounding impedance and magnetic field effects, combined with a shielded chassis to block digital noise.

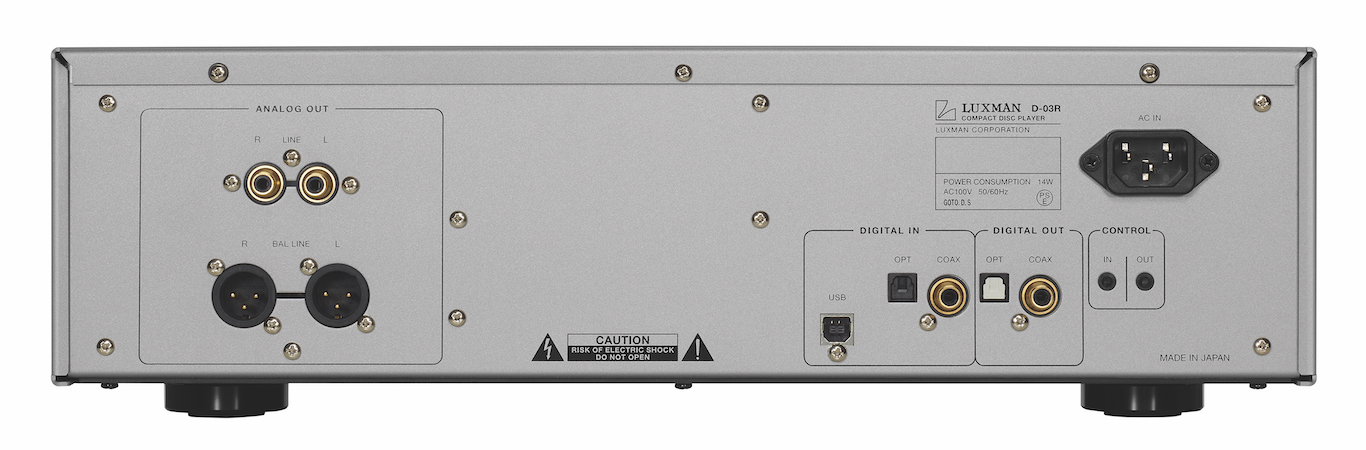

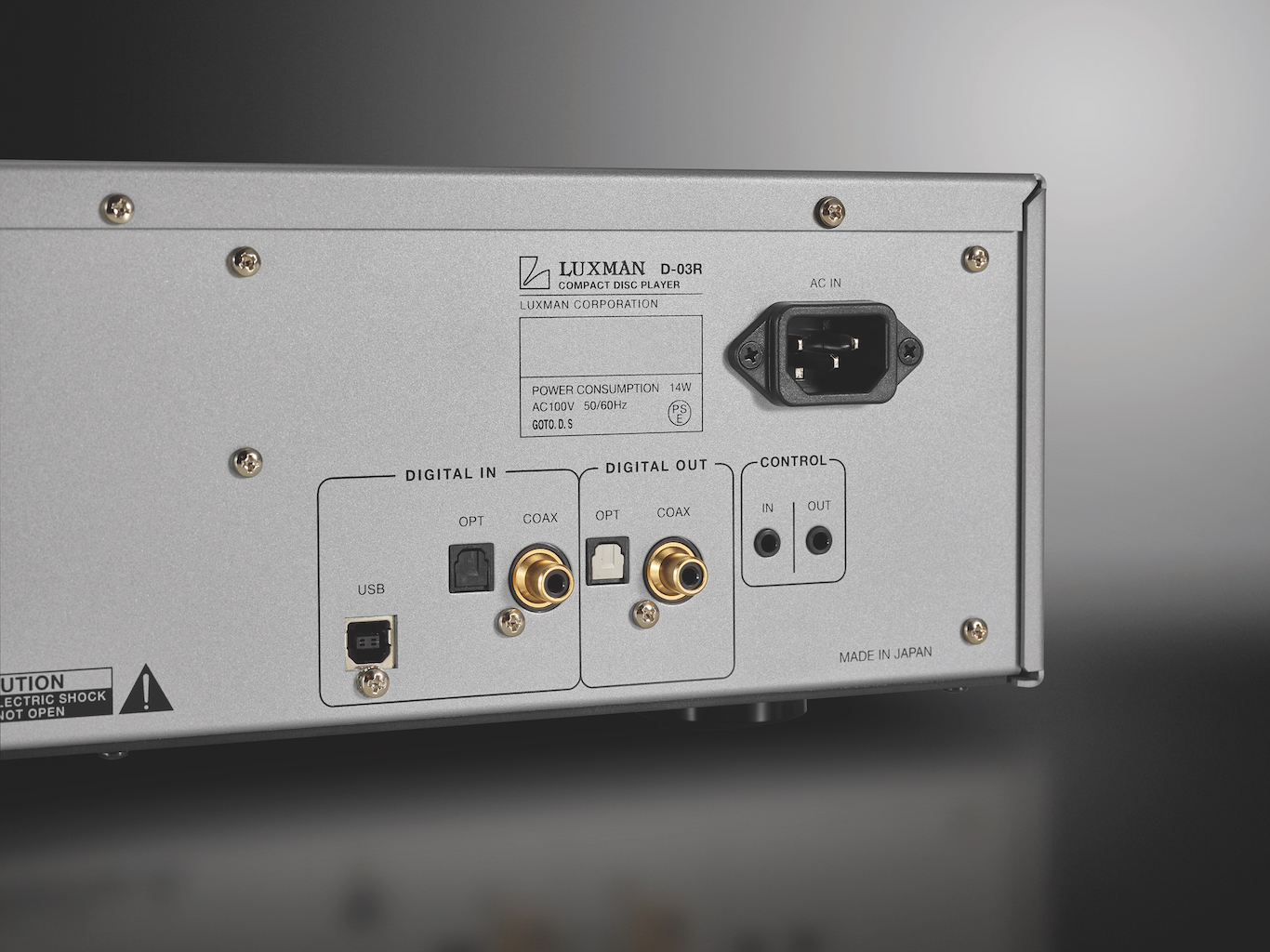

– Offers comprehensive digital I/O connectivity, including USB, COAX, and OPT inputs, as well as COAX and OPT outputs, ensuring compatibility with various audio components such as the NT-07 network transport.

– Features high-quality, gold plated, 18mm pitch RCA terminals, accommodating large, high-performance cables plugs, alongside premium Neutrik XLR connectors. – Equipped with a highly rigid AC inlet, allowing for flexible cable orientation, while supporting cable weight across the entire terminal.

Additional Features & Accessories

– Includes a newly added control input/output terminal, enabling remote operation via compatible devices and future expansion for wireless control.

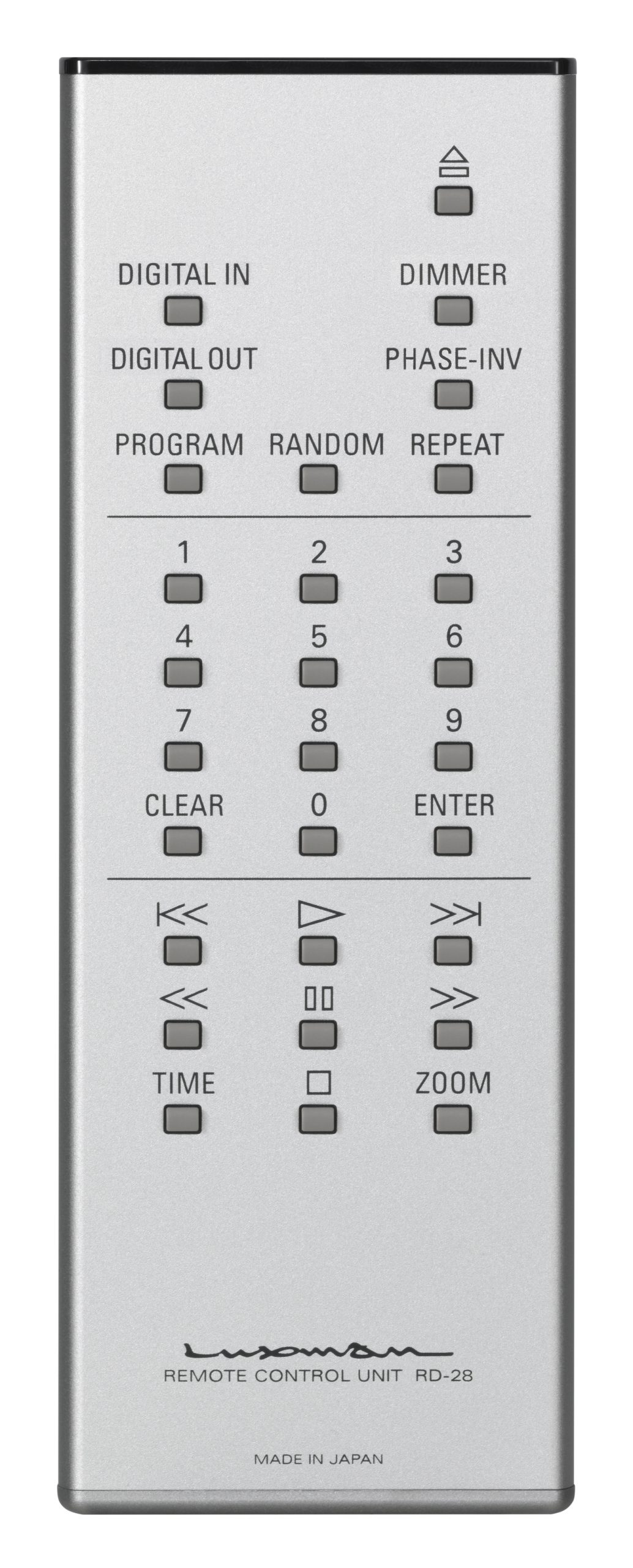

– Comes with a luxurious aluminium remote control (RD-28) featuring a numeric keypad for enhanced usability.

– Offers LUXMAN Audio Player software, supporting multiple audio formats with high-quality playback (available for Windows and Mac, free for download online).

– Provides a dedicated driver for BulkPet transmission, optimising USB audio transfer for high-fidelity sound quality (available for Windows and Mac, free for download online).

Luxman D-3R Specifications

Supported discs – CD, MQA-CD

Supported sampling frequencies
USB input (PCM): 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz (16, 24, 32bit) USB input (DSD): 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (1bit)
COAX/OPT input 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (16, 20, 24bit), 2.8MHz (DoP)

Analogue output voltage – Unbalanced 2.4V, Balanced 2.4V

Output impedance – Unbalanced 300Ω, Unbalanced 600Ω

Frequency response – CD 5Hz to 20kHz (+0, -1.0dB), USB/COAX/OPT 5Hz to 47kHz (+0, -3.0dB)

Total harmonic distortion – CD 0.002%, USB/COAX/OPT 0.001%

S/N ratio (IHF-A) – CD 110dB, USB/COAX/OPT 118dB

D/A converter – ROHM BD34352EKV (monaural mode) x2

Dimensions – 440(W)×133(H)×410 mm (front side knob of 2mm and rear side terminal of 8mm include in depth)

Weight – 13.2kg (main unit), 17.6kg (when packed)

Accessories – Remote control (RD-28), Power cable
