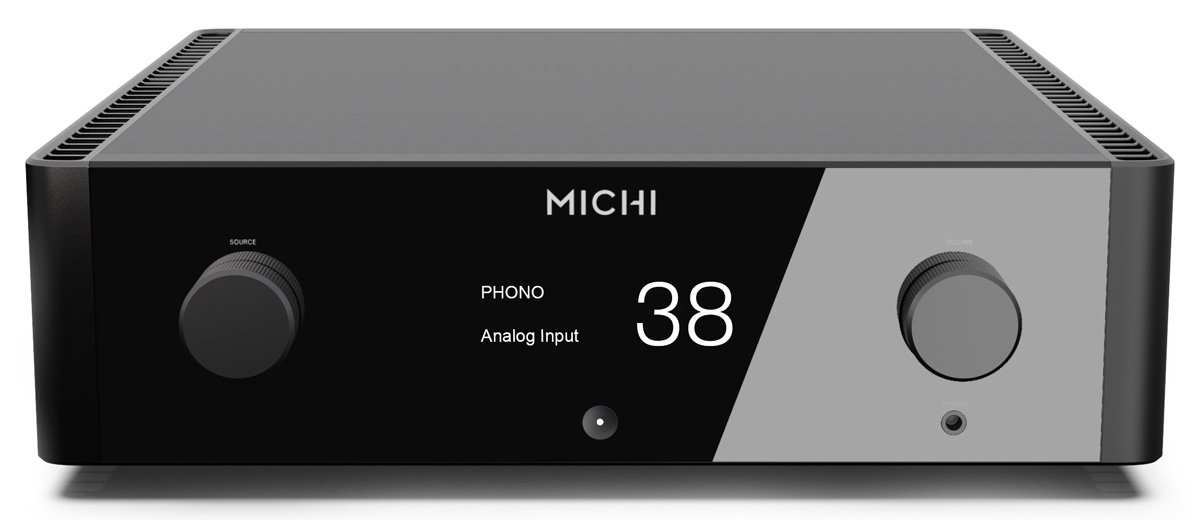

Michi P5
Discontinued awaiting replacement
The Michi P5 Control Amplifier delivers the ultimate culmination of audio performance with a full complement of source inputs.
The meticulous circuit design, critical component selection and over 3 years in the making ensures the P5 meets the highest of standards allowing this pre-amplifier to proudly wear the Michi logo.
Features Michi P5
- AKM premium 32-bit/
- 768kHz Digital to Analogue Converter
- Moving Coil and Moving
- Magnet phono stage input
- Bluetooth with aptX
- and AAC
- Balanced XLR
- inputs and outputs
- Supports MQA
The Michi P5 Control Amplifier delivers the ultimate performance in audio processing with a full complement of analog and digital source inputs.
Over 3 years in the making, every aspect of the P5 has been carefully crafted including the power supply, circuit design and critical component selection to ensure the highest integrity of the audio signal eliminating unwanted noise and distortion.
The Dual AKM 32-bit DACs feed the Class-A pre-amplifier circuit ensuring detail, accuracy and the highest musical fidelity while maintaining crucial rhythm and timing for all musical genre regardless of your listening style.

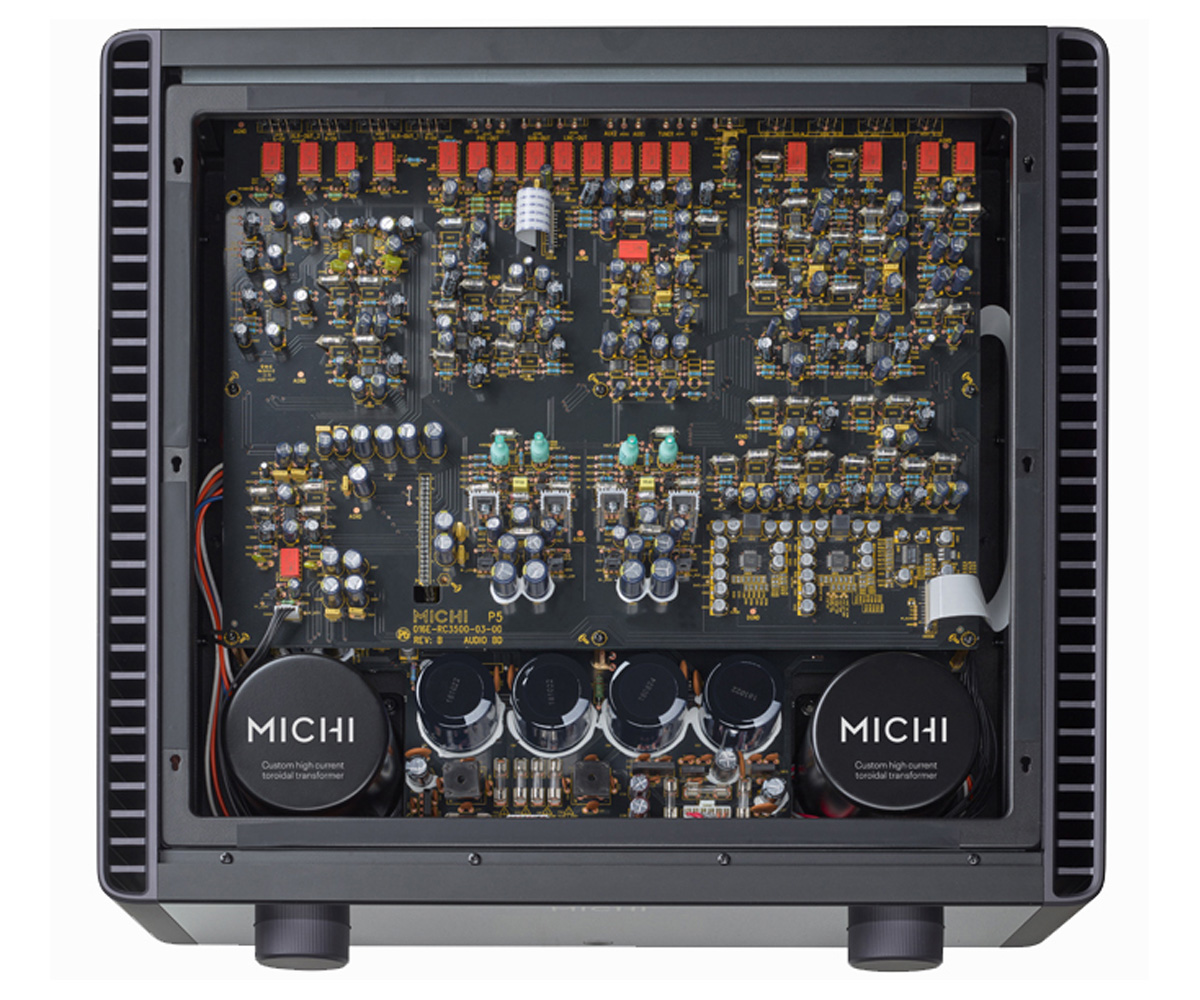

These circuits are supported by an array of 17 independent voltage regulators driven from 2 custom designed and factory built toroidal transformers with low ESR smoothing capacitors to deliver ripple free current to all critical circuits.
Accuracy and detail are essential in reproducing audio and equally important is delivering music that is enjoyable and entertaining.
The P5 excels in all aspects building on over 55 years of audio design experience.
The bespoke in-house manufacturing facility ensures this pre-amplifier is built to highest of quality standards allowing it to proudly wear the Michi logo.
Automation and control system integration is easily supported with RS232 and Ethernet connections.
The Michi P5 includes MQA (Master Quality Authenticated) technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

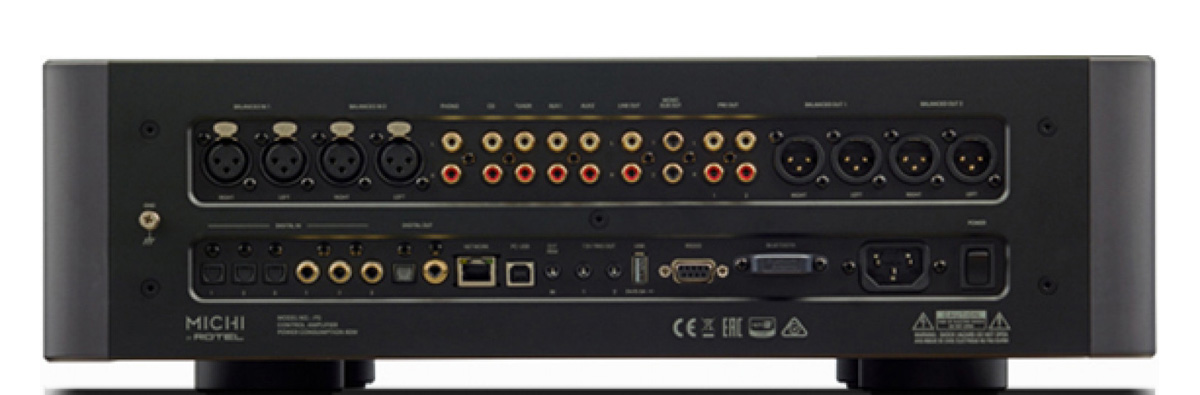

Specifications Michi P5
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.002%
INPUT SENSITIVITY
Line Level Inputs (RCA): 160mV
Line Level Inputs (XLR): 250mV
Phono Input (MM): 2.5mV
Phono Input (MC): 250uV
Digital Inputs: 0dBFs
INPUT IMPEDANCE
Line Level Inputs (RCA): 47kΩ
Line Level Inputs (XLR): 100kΩ
Phono Input (MM): 47kΩ
Phono Input (MC): 100Ω
Digital Inputs: 75Ω
INPUT OVERLOAD
Line Level Inputs (RCA): 12V
Line Level Inputs (XLR): 12V
Phono Input (MM): 199mV
Phono Input (MC): 22mV
OUTPUT LEVEL
Unbalanced (RCA): 1V
Balanced (XLR): 2V
OUTPUT IMPEDANCE
Unbalanced (RCA): 470Ω
Balanced (XLR): 100Ω
CHANNEL SEPARATION
Line Level Inputs: >85dB
Phono Input: >55dB
TONE CONTROLS
