Musical Fidelity M6s Pre
The M6s PRE is a fully balanced pre-amplifier, from beginning to end. Many pre-amps claim to be balanced but in fact are single ended preamps with balanced inputs and balanced outputs. However, the M6s is the real deal.
Its pure Class A circuitry with Surface Mount Devices (SMD) produces very low distortion, minimal phase shift, low noise and excellent linearity. Similarly, the low impedance output stages (both single ended and full balanced) will drive any power amp through any conceivable length of cable, for absolute reliability in performance.
The M6s PRE also features a wide range of inputs, making it the ideal system hub for any high-end audiophile. With two balanced XLR inputs and four unbalanced RCA inputs, the pre-amplifier also features a built-in asynchronous USB DAC, and a switchable MM/MC phono stage. There is also the added convenience of a switchable RCA input for Home Theatre bypass.
For connecting on to a power amplifier, the M6s PRE offers both RCA and XLR outputs, as well as a fixed Tape loop for other system solutions. Operation is effortlessly simple via the front-panel buttons or supplied Musical Fidelity system remote.
The M6s PRE stands apart as a high-performance, high-end pre-amplifier that delivers superlative technical performance, great flexibility, excellent build quality and beautiful visuals. But where it truly delivers is when partnered with the powerful M6s PRX.
The M6s PRE and PRX are big, powerful high-end electronics that combine the expected Musical Fidelity sound signature with a range of features and technical specifications that make them a real feat of engineering. Available separately, or for a special bundle price they are a very exciting addition to the range that will delight audiophiles of all tastes and preferences.
Fully balanced Class A pre-amplifier
Connect Line, Phono and Digital devices
Two XLR and four RCA inputs
Phono stage switchable for MM and MC cartridges
USB (Type B) input
Balanced or unbalanced outputs
SMD construction optimises noise levels
IR remote control included

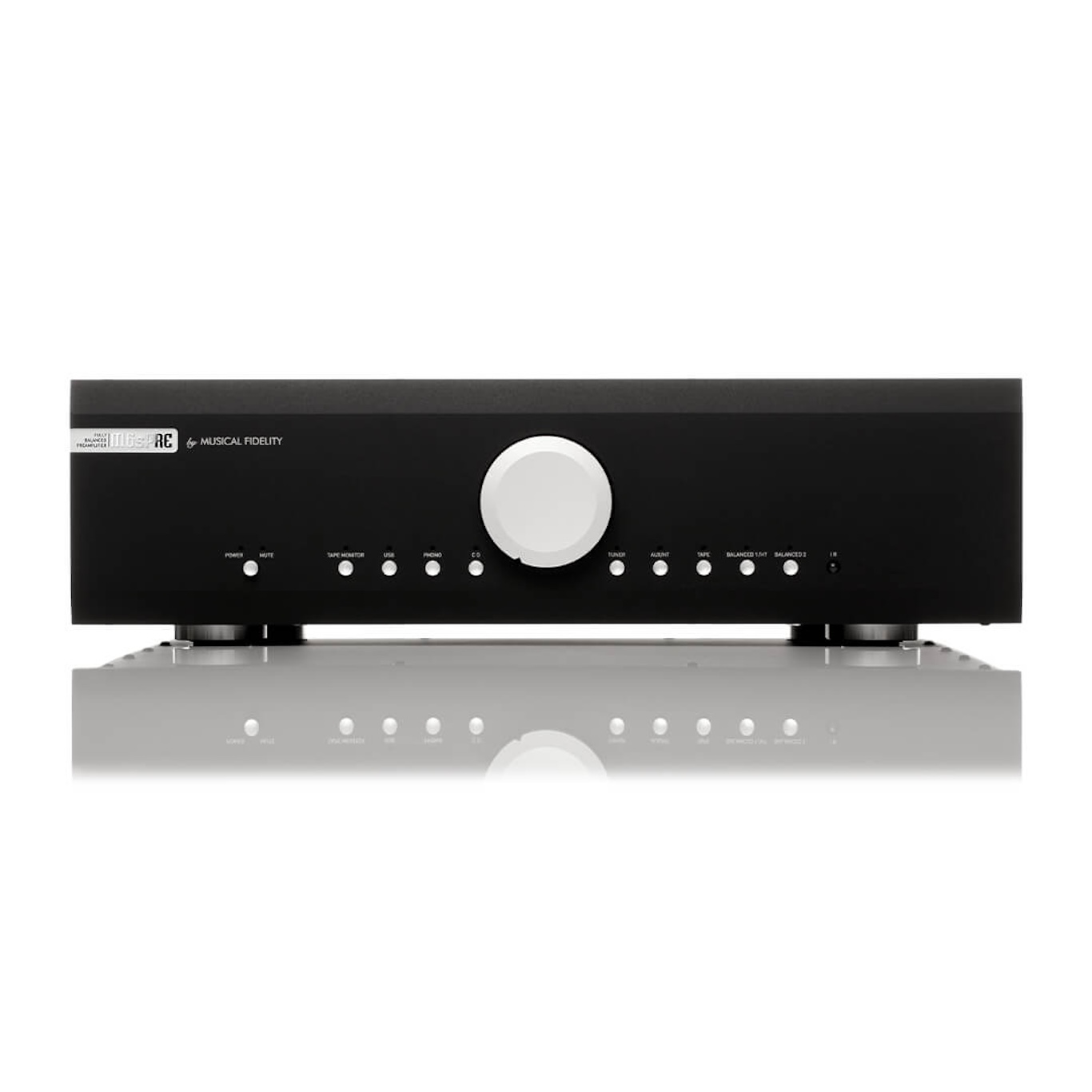

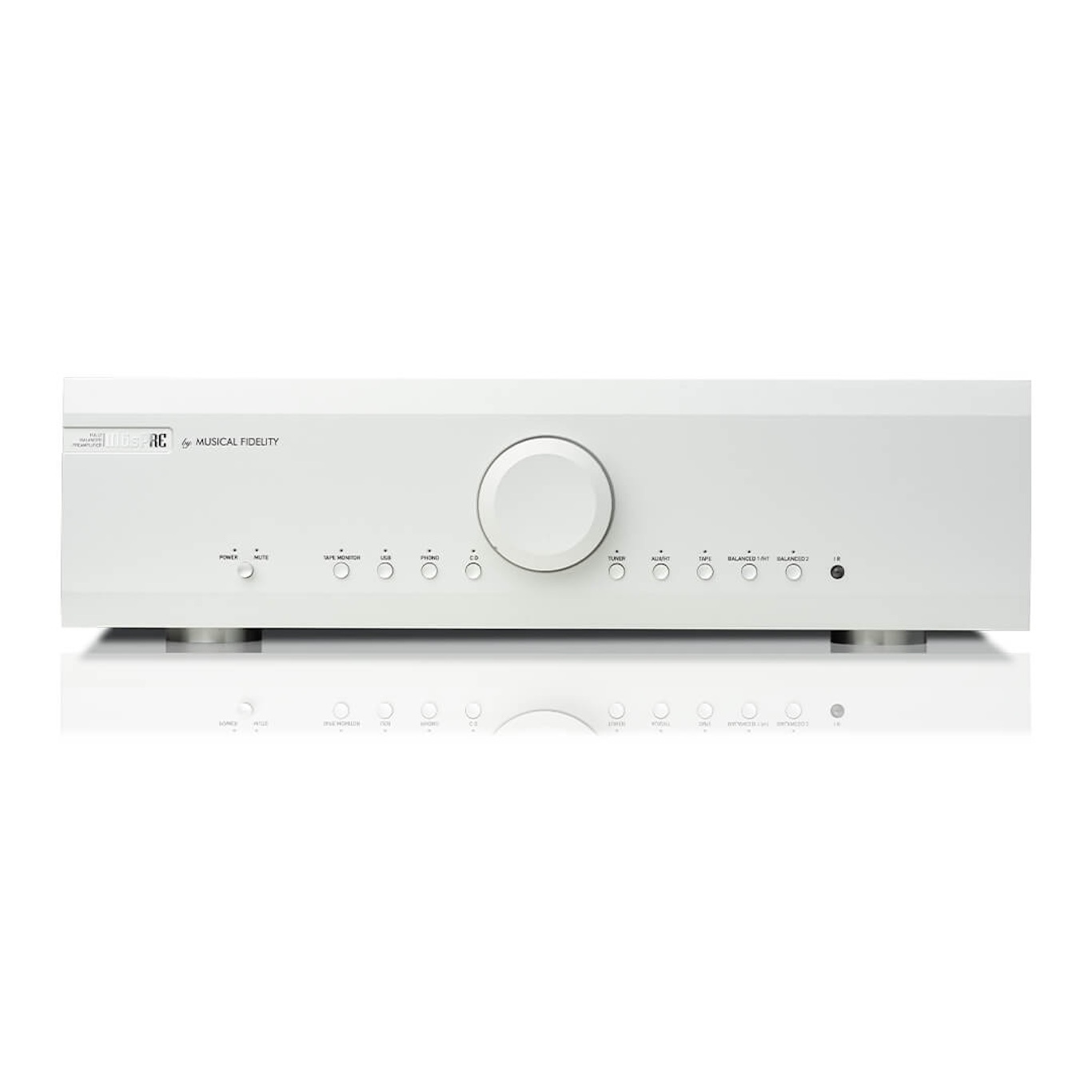

Black or Silver finish
Musical Fidelity M6s Pre specifications
|Output voltage:||9.5V (RCA) / 19V (XLR)|
|Output voltage Peak-Peak:||26V (RCA) / 52V (XLR)|
|THD 20Hz to 20 kHz (Line-In):||<0.005% (RCA) / 0.004% (XLR) typical|
|Signal to Noise Ratio:||>96dB ‘A’-weighted|
|Frequency Response:||+0, –1dB, 10Hz to 80 kHz|
|Inputs:||4 x RCA (Line Level)
2 x XLR (Line Level)
1 x USB (Type B)
1 x Phono Input (MM & MC)
|Phono input sensitivity:||MM & High output MC: 3.5mV
|Phono signal to noise ratio:||>81dB ‘A’-weighted|
|Phono input impedance:||47k Ω (MM & MC)|
|Phono frequency response:||RIAA/IEC ±0,5dB, 20Hz to 20 kHz|

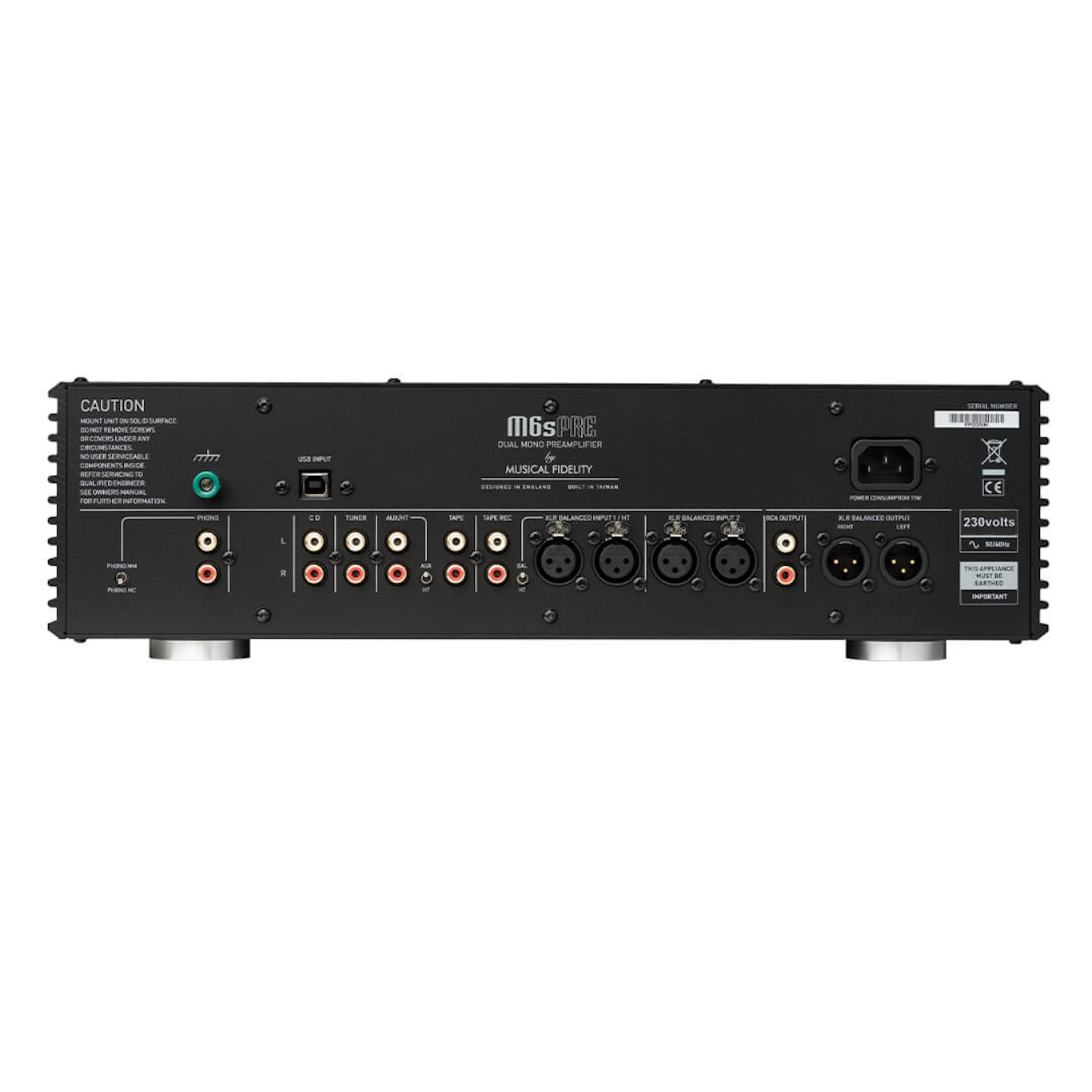

|Outputs:||1 x XLR Pair Pre-Out
1 x RCA Pair Pre-Out
1 x Tape (RCA Pair)
|Dimensions (WxHxD):||440 x 126 x 400mm|
|Weight (net/gross):||11.4kg / 16.0kg|
|Power Consumption:||15W max.|
Mains cable IEC (10-A)
