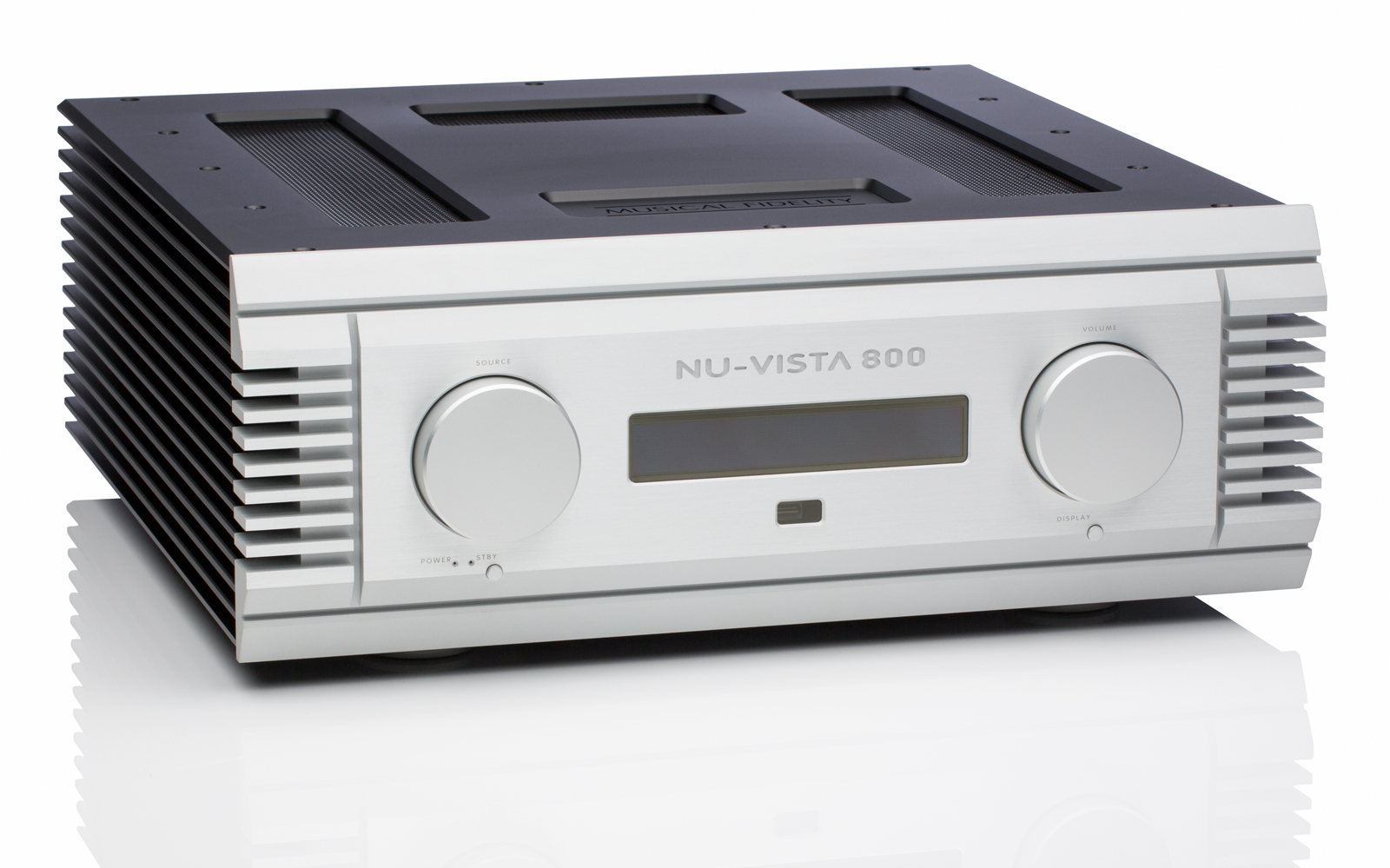

Musical Fidelity Nu-Vista 800

Discontinued Nu-Vista 800 Super Integrated. The Nu-Vista 800 super integrated encompasses the design philosophy from several different eras – Trade-in available

This product is currently out of stock and unavailable.

Musical Fidelity Nu-Vista 800

Discontinued

Super Integrated. The Nu-Vista 800 super integrated encompasses the design philosophy from several different eras

nv800angledup



State of the art tube circuit design

State of the art semi-conductor design

State of the art SMD design

CAD/CAM technology

Software programming. Never before have nuvistor tubes been combined with SMD technology and CAD/CAM design. The result is extraordinary sonic and technical performance. The dual monobloc power amps are a development from their legendary Titan amplifier.

The Titan received reviews said that it was one of the best amps ever made. The power amp stages of the Nu-Vista 800 develop, and improve, from that incredible starting point. What Musical Fidelity have created with the NuVista 800 is an amplifier capable of performing at the very highest levels possible for electronics.

Technical performance NuVista 800

The Nu-Vista 800’s technical performance is a little short of shattering.

nuvista800down

Distortion at 1 kHz is about 0.002%. At 10 kHz about 0.003% and at 20 kHz about 0.004%. These are extraordinary figures which prove the outstanding performance and implementation of the total circuit design integrity of the Nu-Vista 800. Power is a comfortable 300 wpc with about 200 amps peak to peak current available. This amplifier is monster muscle man wearing an extremely sharp Italian suit, fine hand made shoes and the most delicate of accessories.

Sound quality Nu-Vista 800 sound quality is extraordinary. It has the warmth and delicacy of a triode tube amplifier but the power and heft to drive any loudspeaker easily, to any level you could ever want. Overall the sound is sweet and clear but with no grain or harshness. Dynamics, as you would expect, are delivered with incredible speed and precision. Low end is deep, extended and fast. High frequency transients are delivered with no harshness or edge. This amplifier appears to be spherical perfection…perfect whichever way you look at it.

NuVista 800 – Design and Build

nuvista800front



Fifteen years ago, Musical Fidelity were the first company in the world to use nuvistor tubes for their high-end NuVista series.

The original Nu-Vista series (Nu-Vista pre amp, Nu-Vista M3 integrated, Nu-Vista 300 power amp and Nu-Vista 3D CD player) created a sensation when they were launched in 1999. They gave an almost perfect balance between state of the art transistor and tube design.

Because there were only limited tube bases available in 1999, the Nu-Vista series were all made in limited editions. Their reputation is legendary and, to this day, used Nu-Vista series products for very high prices.

Background on Nuvistors

Nuvistor tubes were designed in the late 1950s. Their design process took into account all the criticisms and weaknesses of the standard glass tubes that had gone before. As a result, nuvistor tubes offered:

Unprecedented reliability

Compact size

Very low microphony

State of the art technical performance

Total consistency between manufacturing batches

Indeed, nuvistors were the ultimate, high performance, triode tube. Unfortunately for them, transistors were just coming of age as nuvistors became available.

A bright new dawn

For at least three years after the launch of the original Nu-Vista series, Antony Michaelson tried to get more tube bases. Nuvistor tubes were plentiful but bases were impossible to obtain. After a time, he stopped searching.

As many of you know, Antony Michaelson is persistent. About eighteen months ago, he started thinking about Nu-Vistas again. This time, things were different. Via the internet, he was able to locate what are probably the last nuvistor bases on this planet Earth. Antony was thrilled. He purchased all that could be found.

This made it possible for Musical Fidelity to realise their dream of manufacturing more nuvistor-based products, including the new mega super integrated, the NuVista 800.

This time, they would be able to combine their state of the art Nu-Vista technology with their state of the art Surface Mount Design PCB techniques, and the new designs would benefit from the freedom of layout that they offer.

General description

nuvista800interal

The Nu-Vista 800’s front end is positioned on the same PCB as the input circuitry. This keeps all PCB tracks as short as possible, and ensures that this highly sensitive function is at right angles to any stray hyseresis field from the transformers, ensuring superlative sonic performance.

The nuvistor stage itself combines nuvistor tubes with our exclusive Surface Mount Design and technology systems. This allows them to perform at a level never seen before.

The power amp stage is derived from their monster Titan amp, regarded by many as one of the best amplifiers ever made. However, they have made subtle improvements to the circuit, squeezing even more performance from what was already a legendary circuit design.

The overall configuration is dual mono, with a separate 1.5 kV, super silent drive mains transformer per channel.

The result -maximum performance from every part of the circuit- clearly shows just how much of a labour of love and passion for the NuVista 800 was for Musical Fidelity.

Technical performance

The NuVista 800 delivers a comfortable 300 wpc. It is capable of truly massive current swings: about 200 Amps peak to peak. In a word, vast. Distortion at 1kHz is vanishingly low at 0.002%. At 10 kHz, it is about 0.003% and at 20 kHZ 0.004%. These are extraordinary figures. More astonishingly is the distortion into 4 Ohms (1kHz) is its exactly the same is into 8 Ohms.

NuVista 800 has very low noise and excellent stereo separation.
Because of its huge peak current capability, it can drive any speaker with any cable, without breaking a sweat.

NuVista 800 combines the beauty, delicacy and poise of state of the art tube and semiconductor design blended with massive power and current.

Nu-Vista 800 – Specifications

nuvista800rear

Amplifier
Power output: 330 Watts per channel into 8 Ohms

THD (+ noise): 107dB ‘A’ – weighted

Frequency Response: +0, –0.1dB, 10Hz to 30 kHz

Line Level Inputs

4x Line Level RCA / Phono

1x Line Level XLR Balanced

Line Level Outputs

1 pair line level RCA connectors, constant level LINE outputs

1 pair line level RCA connectors, PREAMP outputs for e.g. biamping

Speaker Level Outputs

2 pairs 4mm banana plug/binding posts

Power Requirements

115/230VAC 50/60Hz (factory pre-set)

Power Consumption
130W on and idle (blue LED lit)

900 Watts maximum

General

Dimensions – WxHxD (mm): 483 x 187* x 510

*212mm on included optional pointed feet

Weight (unpacked / packed): 39 kg/ 47 kg

Matching CD Player

Brand

Musical Fidelity

Musical Fidelity has been designing and manufacturing Hi-Fi electronics for over thirty years and  are proud to have become one of the best-known brands in the Hi-Fi industry.

They are driven by a passion for wonderful music and the challenge of world-class engineering.

They approached each new design by looking for the absolute best solution to a given challenge and embrace new technologies in our designs as well as developing more traditional methods for even greater performance.

1982

Their first product – The Preamp – launched to rave reviews. Followed by shoebox-style Dr Thomas power amp.

1984

Launch of A1 integrated amp, ‘the most important development so far in the renaissance of the UK hi-fi scene’ (Hi-Fi Answers).

1986

New A370 Power Amp proclaimed ‘the best power amp I’ve ever heard’ (Hi-Fi Answers).

1987

World’s first high-end DAC- Digilog – makes debut

1988

Another world first: MVX preamp, combining tube circuit topology with transistors.

SA470 launched: 86Kg power amp running 99% in Class A

1992

A1000 integrated released, featuring pure Class A power amp section

1993

Classic valve-driven Tubalog DAC goes on sale

1995

X Series launches with X-10D Class A triode line stage: ‘the most dramatic sonic enhancement you’re likely to hear!’ (F1).

1997

Nu-Vista Preamp launched, using miniature, metal-cased nuvistor tubes. All 500 units sold within three months.

X Series expands with X-ACT DAC, praised for ‘smooth, easy-going sound’ (What Hi-Fi?)

1998

X-24K upsampling DAC released: ‘capable of getting sound to die for’ (Stereophile).

X-Ray CD player launched. Described as ‘the sort of object you just want to fondle’ (Hi-Fi News) ‘a thrilling, substantial and satisfying listen’ (What Hi-Fi?) and ‘Hi-Fi meets nuclear warhead’ (T3).

2000

Futuristic CD-PRE 24 arrives, combining a high-quality CD transport, DAC and preamp. On Hi-Fi says it ‘represents a combination of features, functional performance and affordability that seems an audiophile dream come true’.

Debut of Nu-Vista M3 pre/power amp, including discrete Nu-Vista power amp modules with choke regulation. ‘This is what hi-fi should be all about’ (Gramophone).

X-DAC V3 released, offering ‘stunningly good measured performance’ (Stereophile).

2002

World’s first audio application of trivistor tubes in new Tri-Vista series, including legendary Tri-Vista 21 ‘Super DAC’.

2003

Flagship kW pre-amp and kW power amp launched: ‘the very finest amps you can buy…the MFs redefine audio standards’ (What Hi-Fi?)

Next up: kW 500 super integrated amp with twin-triode tubes. Hi-Fi News said, ‘For one rare reviewing occasion I could not find a thing to fault about the musical presentation of an amp’.

Limited-edition M1 turntable released. Considered one of the best-engineered decks ever, it’s now a collector’s item, fetching above its original price.

2004

Supercharged X-DAC V8 introduced, with switchable tube buffer and extra-heavy-duty power supply. ‘For its superb performance as a detailed, sweet-sounding DAC, the X-DAC V8 stands on its own’ (Stereophile).

X-150 wins European Stereo Amplifier of the Year, EISA Awards 2004-2005.

2006

Debut of kW250S one-box wonder, packing in dual 250-watt monobloc amps, tube hybrid preamp, phono stage, 24-bit 192K upsampling CD player, FM/DAB tuner and iPod input.

2009

Meet the mighty TITAN: 1kW per channel dual monobloc design with external power supply. Hi-Fi News was ‘Smitten… The Titan is the best power amplifier I’ve used’.

Reference-standard Primo pre-amplifier released; pure Class A with 14 hand-picked ECC81

2011

New M1 CLiC unites analogue and digital sources under universal control. Wins European Network Music Player, EISA Awards 2011-2012.

2012

Line-up expands to meet every hi-fi need and budget. Highlights include the AMS CD/DAC – our finest digital product yet – and AMS100, the world’s most advanced pure Class A amp
