Naim CI-NAP 108
8-channel power amplifier
The Naim CI-NAP 108 power amplifier is designed for high-quality audio installations and is the perfect complement to Focal in-wall hi-fi speakers.
It can control multiple speakers in different rooms or amplify up to eight separate audio streams when paired with the CI-Uniti 102.
With local inputs for each amplified channel, the CI-NAP 108 delivers uncompromising power and sound quality to your audio system.
Performance and reliability

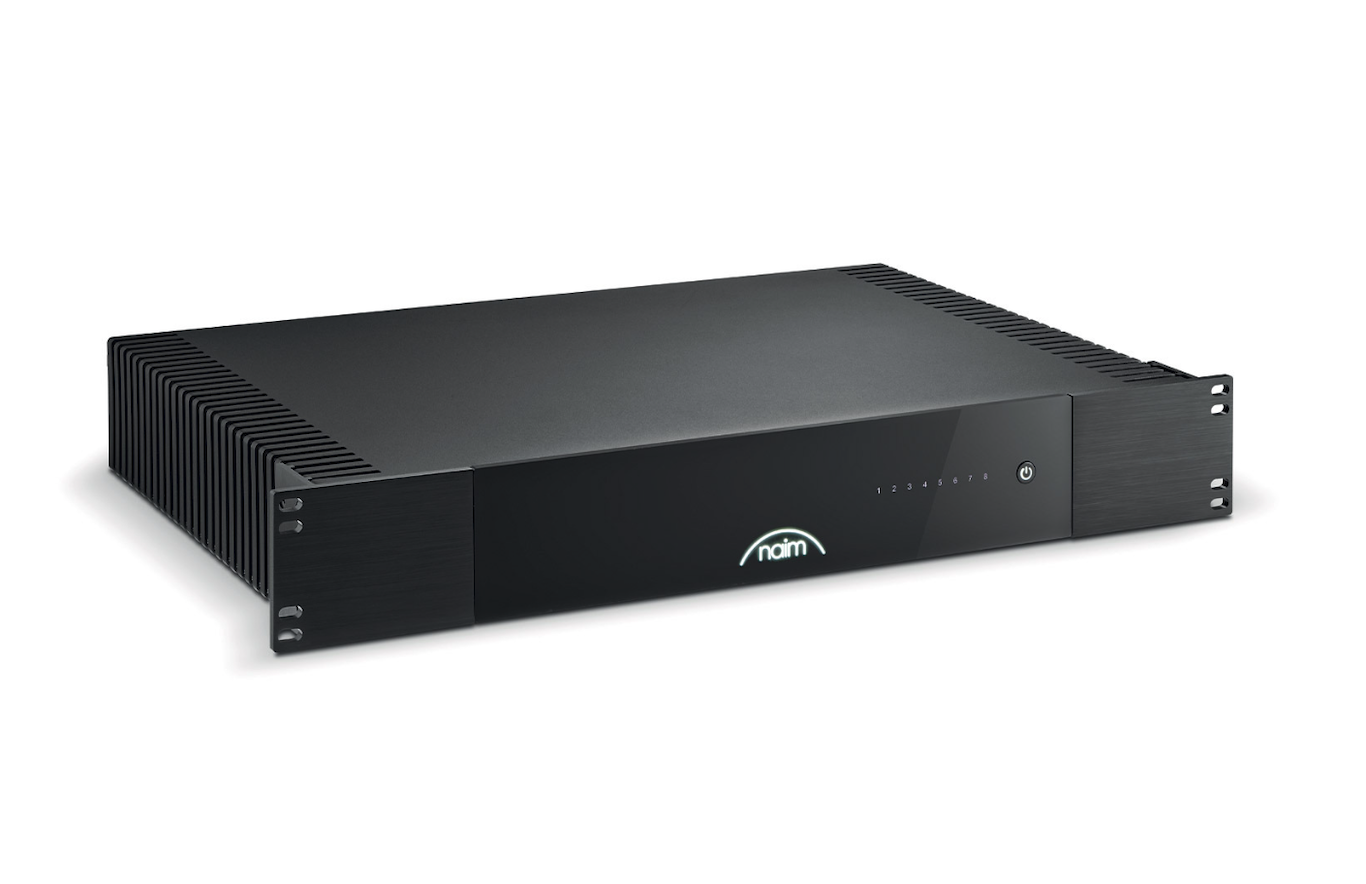

The CI-NAP 108 is a rack-mountable audio device that offers 8 channels, allowing you to cover large listening areas without affecting Naim’s world-class sound quality.
The device features local inputs that enable 8 different streams to be separated, providing greater flexibility.
Combined with the CI-Uniti 102 streamer and the CI-NAP 101 mono and 70V/100V line amplifier, this complete system represents the pinnacle of Naim electronics.
It is designed for integrated audio systems, whether it be for home, retail outlets or boats. Additionally, it complements audio-video processors by combining superior sound quality and power.
Naim CI-NAP 108 Features

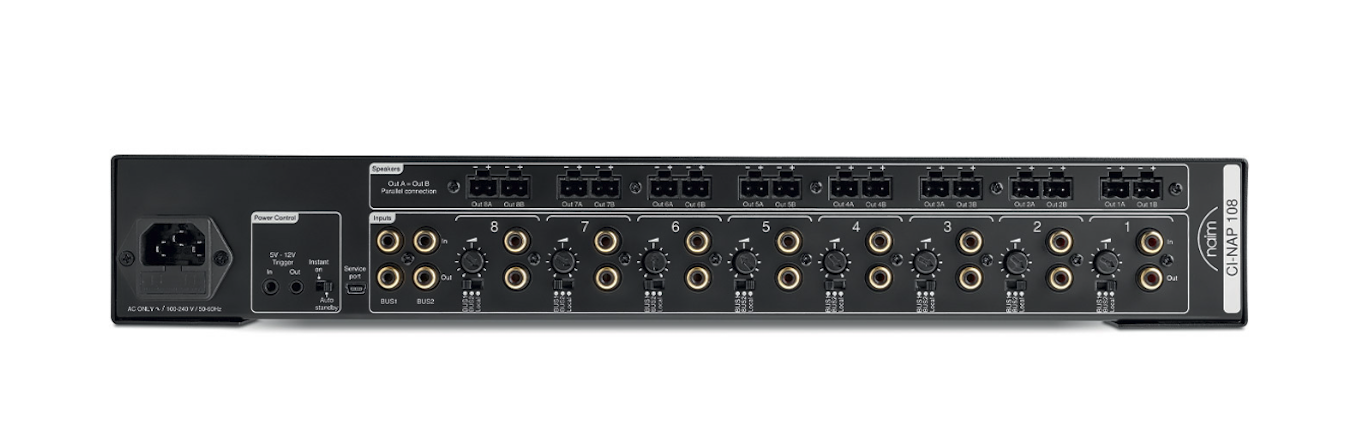

– 10 RCA inputs, including 8 local inputs and 2 L/R bus inputs.
– 10 RCA outputs for series connection with other amplifiers, such as the CI-101.
– A silent, efficient and compact integrated power amplifier.
– Two Euroblock outputs per channel for easy parallel connections between loudspeakers.
– Independent level control.
– Input signal detection with automatic power-down after 20 minutes.
– Universal 100V to 240V mains power supply.
Focal & Naim App
The Focal & Naim app is the ultimate remote control for your home hi-fi system, giving you millions of tracks at your fingertips as well as access to product settings and features.
Enjoy instant playback via your connected Naim devices, whatever room they’re in.
The application is available from Apple Store and Google Play Store.
Naim CI-NAP 108 specifications
Type – Amplifier
Number of channels – 8
Power (Low Impedance) – 8Ω 150W, 4Ω 260W, 2Ω 260W
Input connections – Analogue – RCA – (47kΩ)
Output connections – Line RCA, Speakers Euroblock
Total Harmonic Distortion (THD+N@1kHz) – <0,006%
Gain – 29dB
Signal-to-noise ratio – 105dB (A-Weighted)
Frequency response (-3dB) – 3Hz – 70kHz
Operating power supply – 100V to 240V +/-10%, 50/60Hz
Wired Automation – 12V in/out
Rack height – 1.5U
Dimensions (H x L x D) 6.66 x 44 x 30cm
Weight 15.43lbs (7.7kg)
Nominal power consumed 340W
Power consumption in standby mode 0.5W
Operating temperature 5°C to 35°C
Storage temperature -20°C to 60°C
