Nuprime AMG HPA

Nuprime AMG HPA

1MΩ input impedance, high power, and full-balanced design delivering the most transparent and detailed signal with a wide frequency bandwidth and rich harmonics

The AMG HPA is the world’s first headphone amplifier that utilises the 1MΩ input impedance design, first used in their flagship EVO ONE amplifiers, and now in the AMG series.

Adhering to the philosophy of the AMG series, the intention is to deliver the most transparent and detailed signal from the source to the rest of the audio chain.

With the intimate listening experience that headphones provide, the stark difference in the level of performance easily demonstrates the advantage of the AMG 1MΩ design.

Technical Highlights

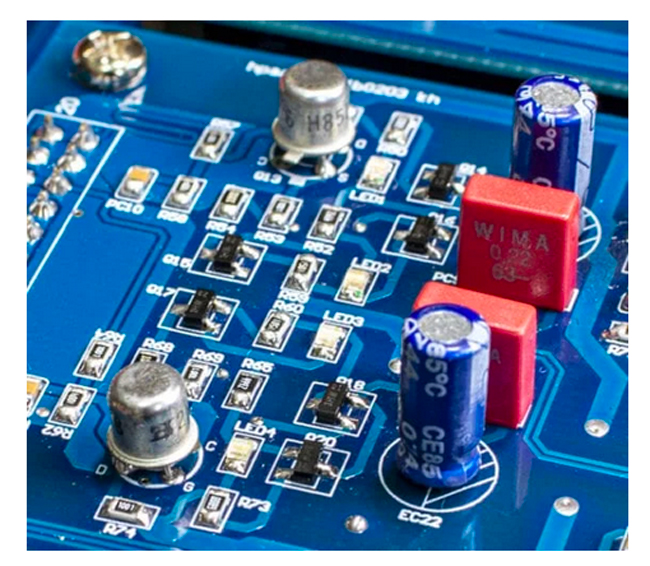

The input stage utilises Ultra-High Bandwidth (communications applications), Low-Noise JFET for the 1MΩ input impedance circuitry.

Amplification circuitry uses a Single-Ended, Non-Negative Feedback Class A module for a wide frequency bandwidth and rich second order harmonics.

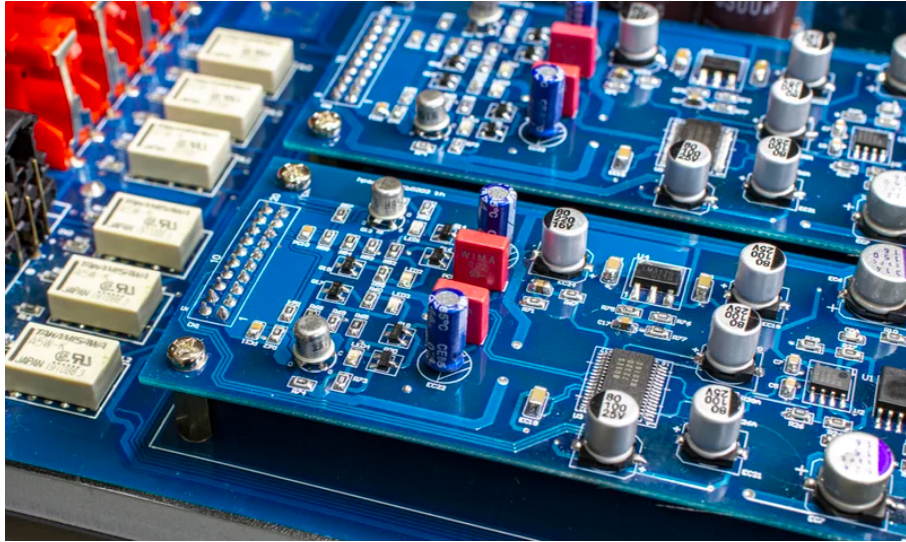

Fully balanced amplification that consists of independent circuitries for input, volume, amplification and power output stages.

The volume control uses two MUSES72320 to achieve a fully balanced 100 levels (0-99) of volume adjustments.

This is the best volume control they have put into a product and likely the best for any headphone amplifier.

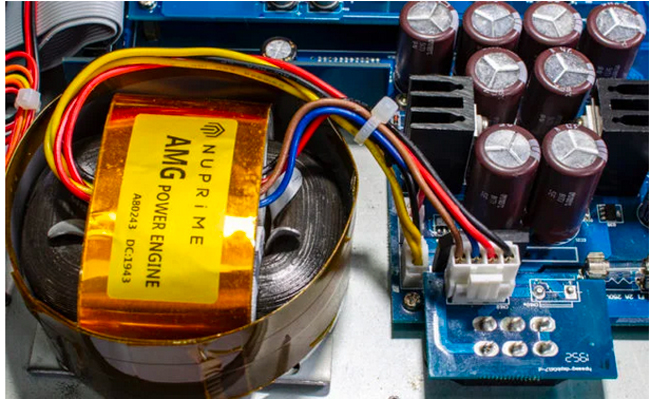

A specially customised R-Core transformer and 26000uF of filtering capacitors used in the power supply ensures that the circuitries are provided with fast and stable power.

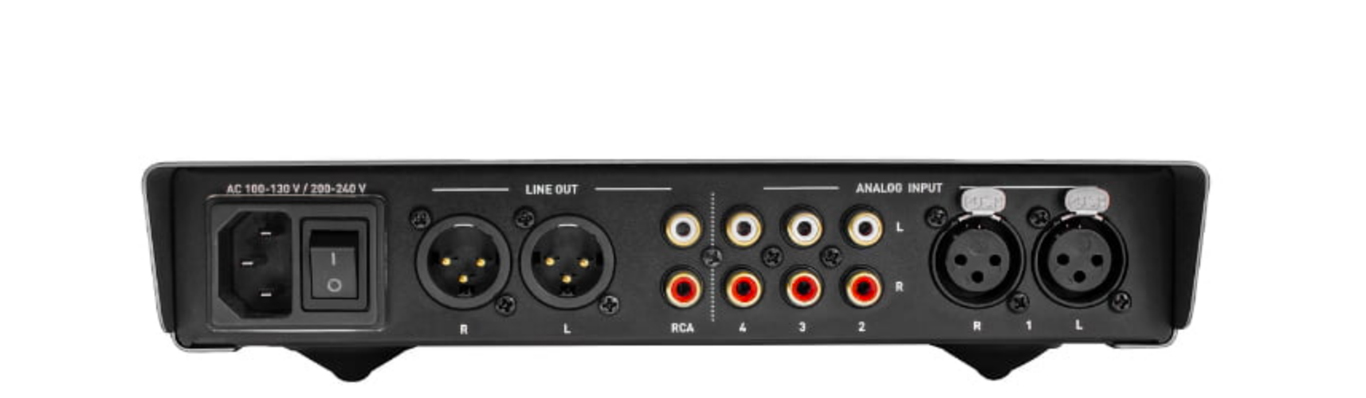

Besides having the headphone outputs, the AMG HPA also has 2 sets (XLR and RCA) of analogue outputs where it could be used as a reference level pre-amp with 1MΩ inputs.

Specifications Nuprime AMG HPA

• Inputs:
  • 1 x Balance XLR
  • 3 x Analog Stereo RCA
• Outputs:
  • 1 x 6.3mm Headphone Out
  • 1 x 4.4mm Balance Headphone Out
  • 1 x 4 Pin XLR Balance headphones out
  • 1 x Stereo RCA Out
  • 1 x Balance XLR Out
• Input Impedance:
  • Balanced In: 1M Ohm @ 10 Hz ~ 200 kHz
  • Line In: 1M Ohm @ 10 Hz ~ 200K Hz
• 6.3mm Headphone Output Power: Max 2000mW @ 32 ohm / 150mW @ 600 ohm
• Balanced Headphone Output Power: Max 3500mW @ 32 ohm / 300mW @ 600 ohm
• Capable of driving headphone with impedance as low as 8 ohm.
• Dynamic Range > 80 dB
• THD+N: 0.05 %
• S/N ratio > 100 dB
• Frequency Response: 20 Hz to 200KHz (-3dB)
• Crosstalk Attenuation: min. 80 dB @ 1 kHz
• Worldwide AC Voltage: 90VAC~130VAC / 210VAC~ 250VAC with Voltage Select Switch
• AC Fuse: Slow-blow, T2A, 250VAC
• Color: Grey
• Product Dimension:  55 x 235 x 300 mm (H x W x D)
• Package Dimension: 120 x 450 x 320 mm (H x W x D)
• Product Weight: 2.5kg
• Package Weight: 5kg

Warranty: 2 years.
