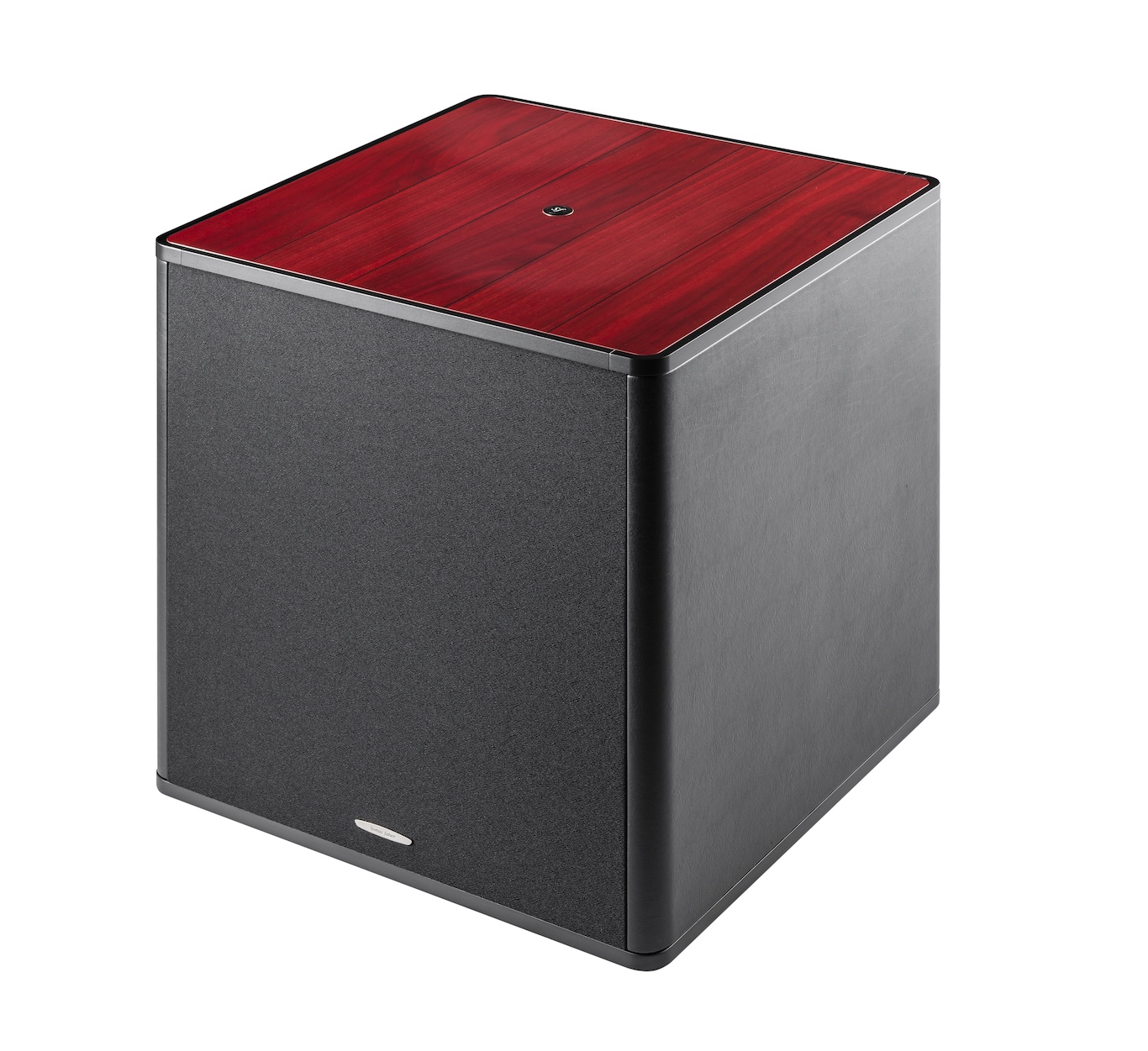

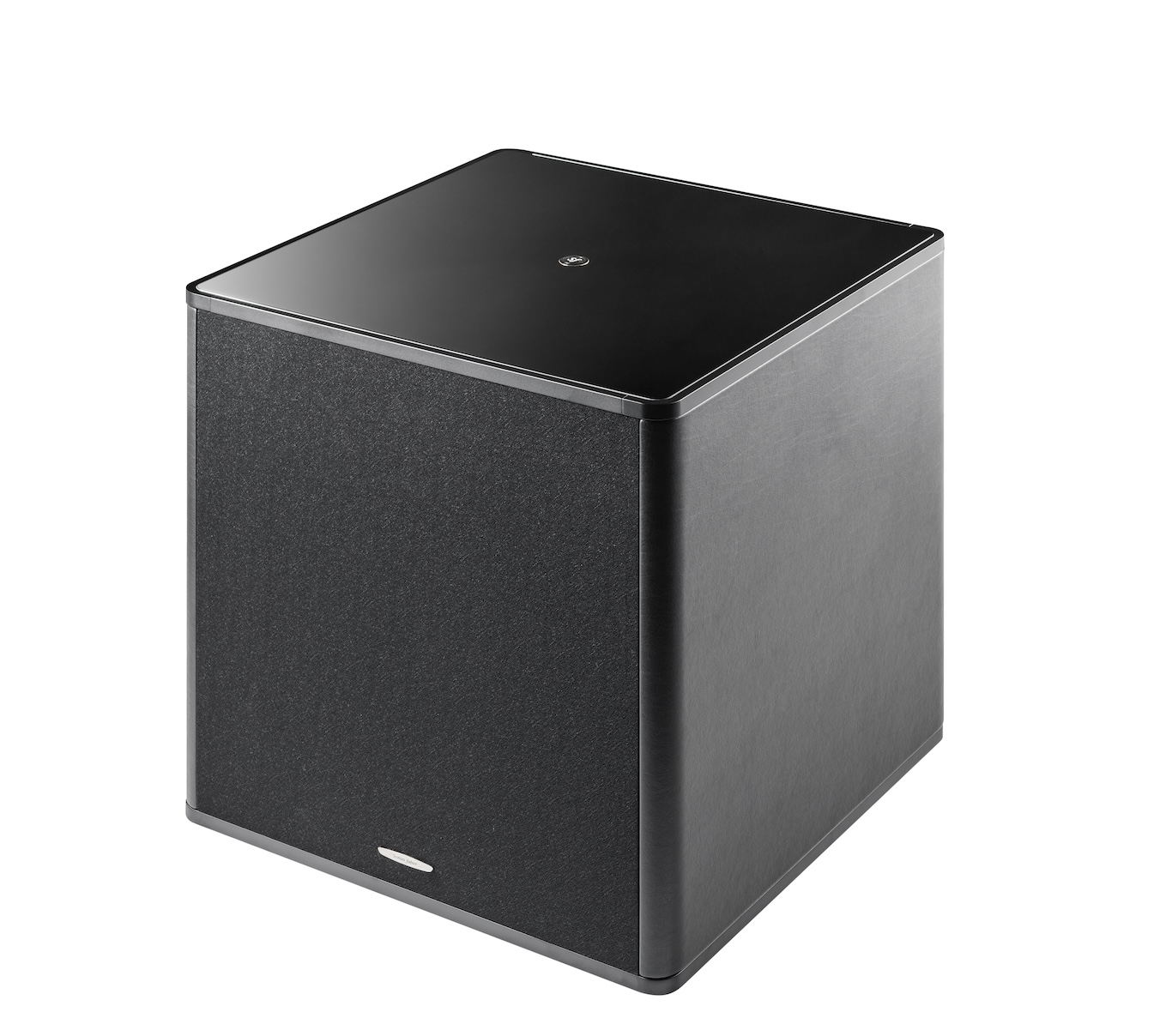

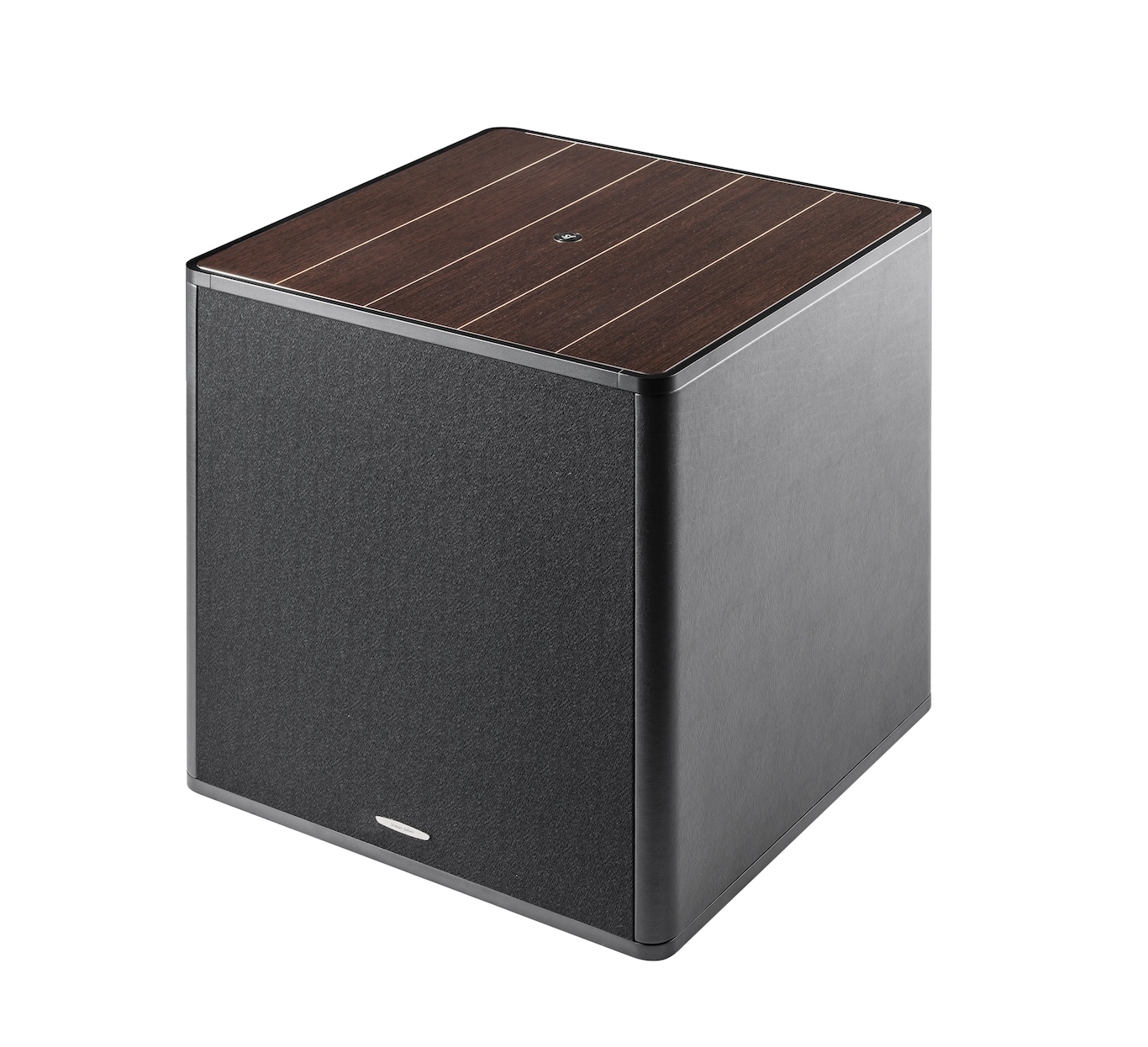

Sonus faber Gravis V
Active Subwoofer
The Gravis V active subwoofer delivers powerful and precise bass, with Sonus faber’s signature style and Natural Sound.
PRECISION AND ELEGANCE
Exemplifying unmatched power and elegance, the Gravis V active subwoofer is meticulously crafted to deliver striking bass performance. It seamlessly harmonises with various sound systems and is matched in acoustics, design, and performance with the Sonus faber Homage collection.
ICONIC SONUS FABER DESIGN
Each Gravis V subwoofer boasts an artisan-crafted wooden or lacquer top, enhancing its aesthetic allure. With its sleek, unembellished body, the design radiates a sense of purity and sophistication, complemented by Sonus faber’s signature leather finish on the sides.
EXPERTISE AND ARTISANSHIP
Gravis melds decades of Sonus faber design and audio expertise into a contemporary package, enhancing the depth and clarity of our Natural Sound signature in a seamlessly integrated design.

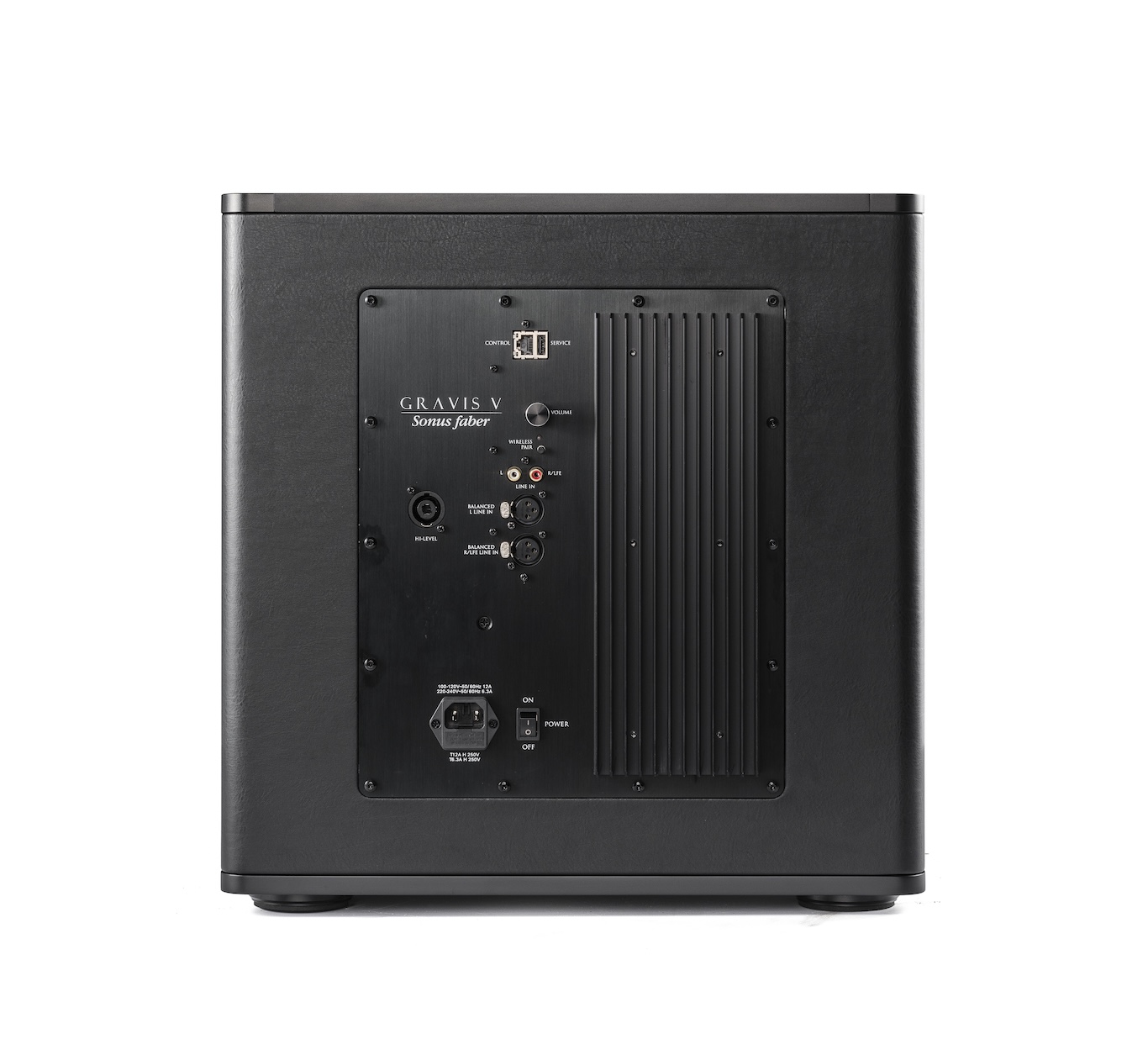

THE REAR PANEL
The Sonus faber Gravis V subwoofer offers versatile connectivity, accommodating both high-level and low-level signals. The high-level input employs a Speakon© 4-pin connector, while the line-level signals can be transmitted via balanced or unbalanced cables.
SPEAKER UNIT
Gravis V features a potent 12” (305mm) long-stroke driver equipped with a Trilaminated sandwich cone diaphragm. This diaphragm is constructed from two layers of woven synthetic fibers (Fiberglass) with a nomex honeycomb layer in between, enabling precise control of driver excursion and resistance flexing. The cone’s remarkable blend of stiffness and lightweight design ensures that Gravis V delivers both massive air movement and precise articulation.
WIRELESS PAIRING
Gravis V can be wirelessly paired by using the Gravis Transmitter. The Gravis Transmitter transmits signals in wireless mode to the Gravis V active subwoofer, with maximum versatility in a compact form that is easy to integrate into any listening environment.
DEDICATED APP
The Gravis V is fully controllable through dedicated, user-friendly app. Available for iOS and Android systems, this app makes the subwoofers simple to configure and use.
Sonos faber Gravis V Technical Specification
System – Sealed box loading, single driver, active subwoofer
Loudspeakers
Sw: Ø 320 mm, long throw, sandwich honeycomb
cone, wide rubber surround LF unit
Frequency response – @ – 6dB acoustic Linkwitz 4th order roll-on, default setting from 20 Hz to Fc (user continuously adjustable)
On board amplifiers – High performance Class AB. 850 W rms, 1200 W (peak)
Power consumption – < 2 W (Stand-by), 1000 W (Rated power)
Audio Input / Output
High performance Class AB
850 W rms, 1200 W (peak) N/A 2x LINE (unbalanced), Left and Right/LFE – RCA plugs
2x LINE (balanced) – XLR plug
HIGH LEVEL – Neutrik 4-pole Speakon© plug
Mains Input Voltage – 100 – 120 Vac – 50 / 60 Hz or 220 – 240 Vac – 50 / 60 Hz. Factory selected
Decoupling Systems – Rubber pad
Product dimensions (HxWxD) – 455 x 448 x 448 mm / unit
Dimensions with packaging (HxWxD) – 640 x 590 x 590 mm / unit
Weight – 32 Kg / unit
Packaging weight – 42 Kg / unit
Cabinet – Squared shape, High gloss wood, Black leather & Aluminium
Fuse – T12A H250V (100-120 Vac – 50/60 Hz), T6.3A H250V (220-240 Vac – 50/60 Hz)
Controls
Direct access Master volume.
APP control featuring: 4 selectable presets, volume, continuously adjustable crossover frequency (40 to 150 Hz , filtering slope 24 dB/oct); continuously adjustable signal phase (0° to 360°); up to 8 parametric EQ filters, delay (1 to 20 ms); automatic room calibration; selectable threshold auto power on/off
