Trilogy 994
Mono Power Amplifiers
A zero negative feedback hybrid design, the 994 embodies much of the attributes of their highly acclaimed 995R mono amplifiers but in a smaller and equally distinct sculpted form.
Offering the listener 140W into 8 Ohms and significantly more into lower impedances, the 994 is eminently capable.
Again using the 6H6П in a grounded grid configuration driving Trilogy’s unique generous compound output stage.
As with the 995R, the 994 offers the ability to be operated in Class AB, Class A or ecoA modes.
Of course, a massive choke input power supply as one would expect.
Yet another Trilogy statement piece of form and function from the mind of Nic Poulson – made reality.
Conclusion of Alan Sircoms review
“No hair shirts Good preamplifiers are often the most ‘hair-shirt’ in approach.
The Trilogy 914 is a rare exception: a tremendous sounding preamplifier that allows a lot of user control.
But even the 914 pales compared to the 994s, which are some of the best-sounding power amplifiers I have ever heard, irrespective of price.
The combination works exceptionally well, too. I’m usually pretty good at second-guessing the price of a product based on its performance, build, weight and so on.
I’m generally correct within a ±10% margin.
So, here’s a perfectly good £25,000 preamp paired with a pair of £40,000 per channel mono power amps (which sound like £160,000 per channel mono amps with the wind in the right direction)… that happens to be £13,000 and £21500, respectively.
The Trilogy 914 and 994 amplifiers are the best little secret in the audio world.”

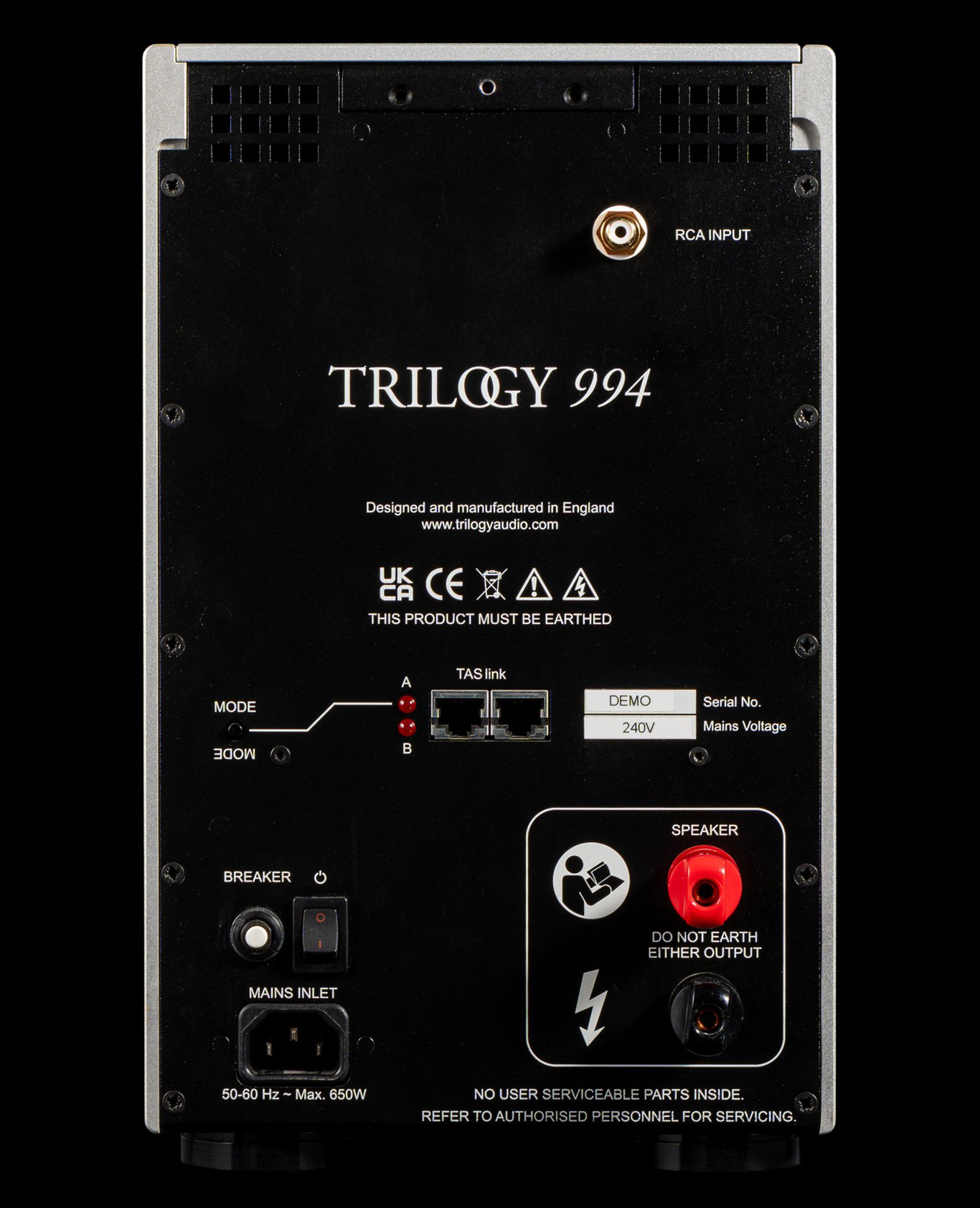

Specifications Trilogy 994
| Size | 190*365*312 (W*D*H) |
|
Size including connectors |
190*400*312 (W*D*H) |
|
Weight |
25 Kg per unit |
|
Standby Power Consumption |
< below 1 Watt |
|
Maximum Power consumption |
600 Watts |
|
Inputs (single ended) |
1 RCA phono socket |
|
Input impedance |
200K Ohms |
|
Gain (single ended) |
31dB |
|
Input sensitivity (single ended) |
1.1V RMS for Rated output |
|
Rated Power Class AB Mode |
140 Watts into 8 Ohms /200 Watts into 4 Ohms |
|
Rated Class A power (Class A Mode) |
20 Watts into 8 Ohms |
|
Actual usable power (Class A Mode) |
30 Watts into 8 Ohms / 55 Watts into 4 Ohms |
|
Recommended load impedance |
2-16 Ohms |
|
Frequency response |
2-100KHz +/- 0.5dB |
|
Distortion |
Less than 1% A weighted at rated output into 8 Ohms |
|
Phase |
Phase correct (non inverting) |
| Specification subject to change | |
Priced as pairs
