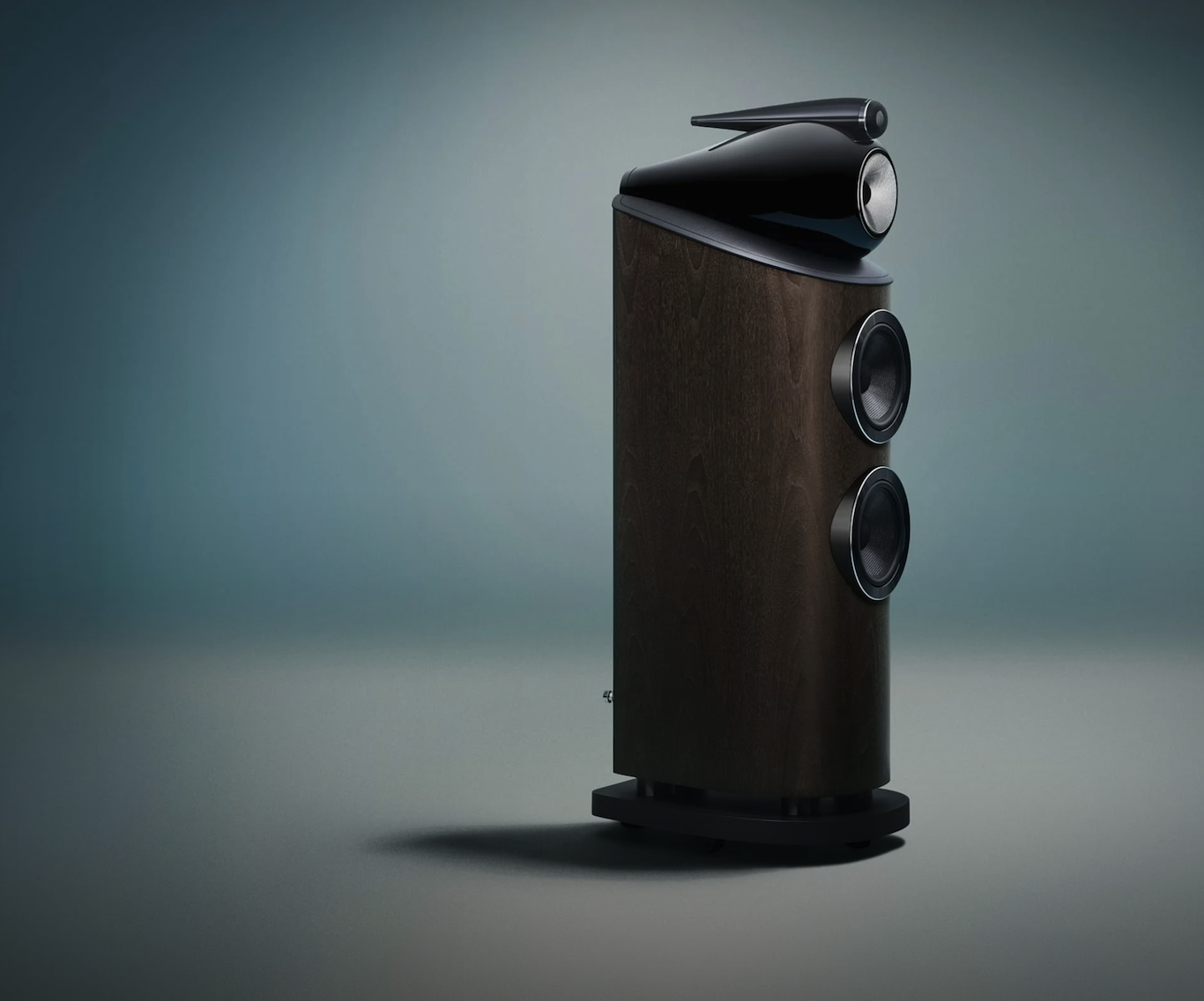

Bowers & Wilkins 803 D5

Bowers & Wilkins 803 D5

Reference floor standing speaker

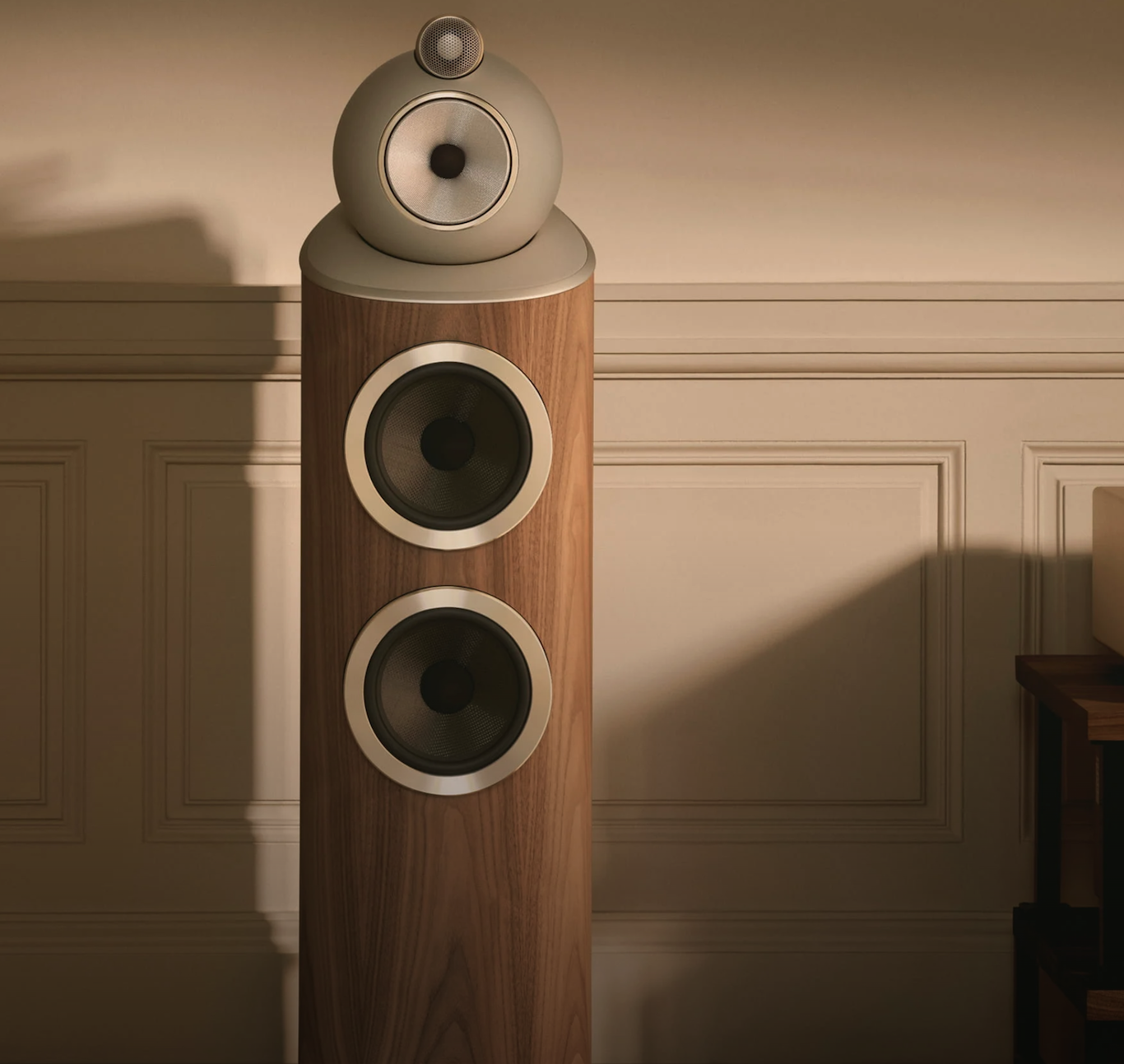

The 803 D5 is the most compact 800 Series Diamond model to feature the iconic Turbine Head configuration. Thanks to its smaller proportions, it delivers reference-quality Bowers & Wilkins audio performance across a wider range of living and listening spaces.

As well as their Diamond dome tweeter and Solid Body Tweeter-on-Top, 803 D5 features new innovations, including enhanced Matrix™ with Space Frame Bracing and an Aluminium Top Plate with damping collar, ensuring the most precise and compelling sound possible. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 803 D5 is uncompromising in both performance and design.

Ultimate drive unit technology

Pairing their most advanced and innovative drive unit technology, the 803 D5 delivers Bowers & Wilkins purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the Continuum™ cone delivers voices and instruments with lifelike detail.

Optimised for pure performance

Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section within the cabinet help deliver an even more spacious and immersive sound.

Crafted to be better by design

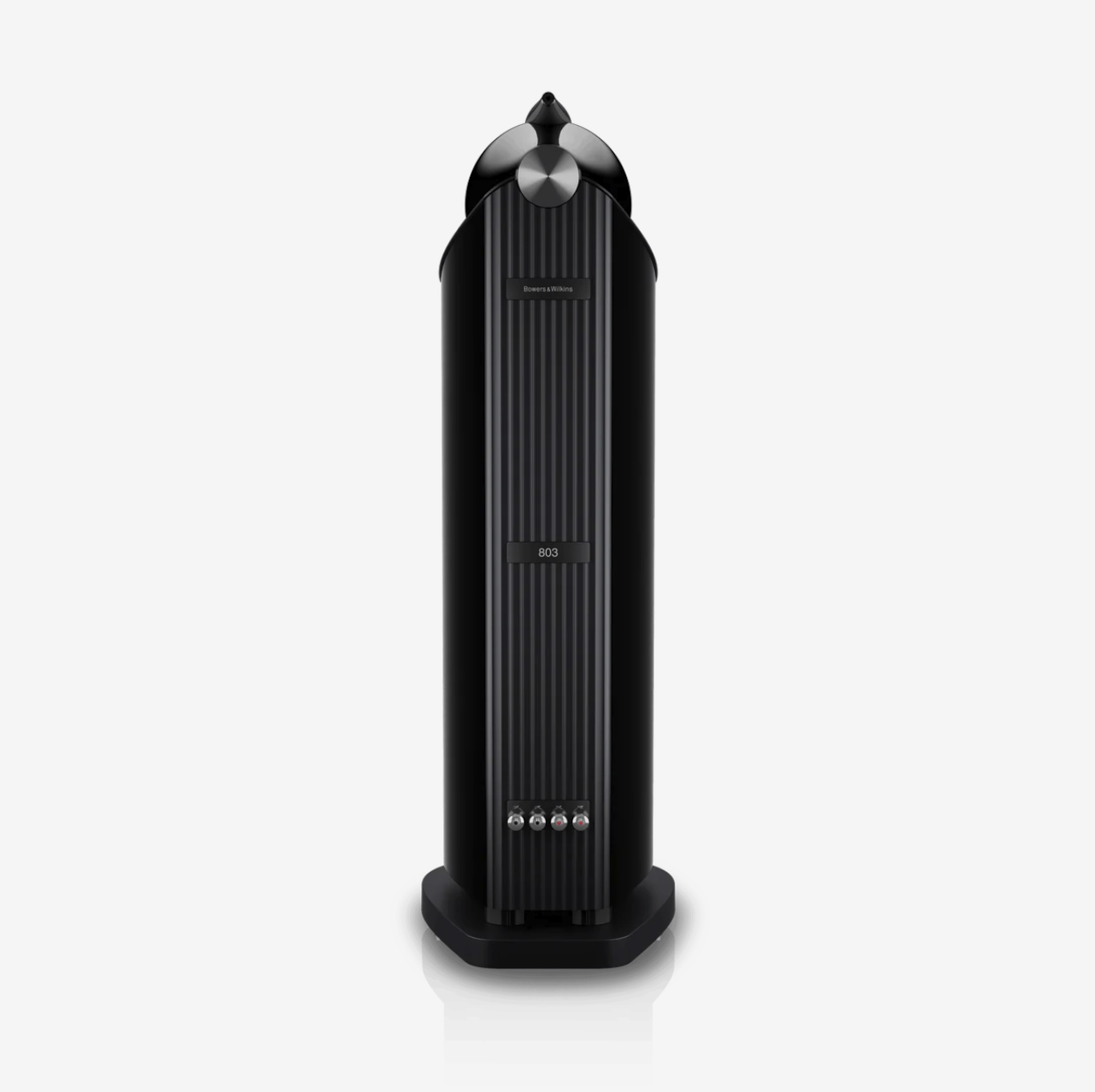

The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. The cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top and Turbine Head, musical performance is always as precise as possible.

Bowers & Wilkins 803 D5 Technical Specifications

Dimensions
Height: 1165mm (45.8 in) including tweeter and plinth
Width: 301mm (11.9 in) cabinet only, 359mm (14.1in) including plinth
Depth: 473mm (18.6in) including grille and terminals, 499mm (19.6in) including plinth
Net weight
63.7kg (140.3lbs)

Technical features

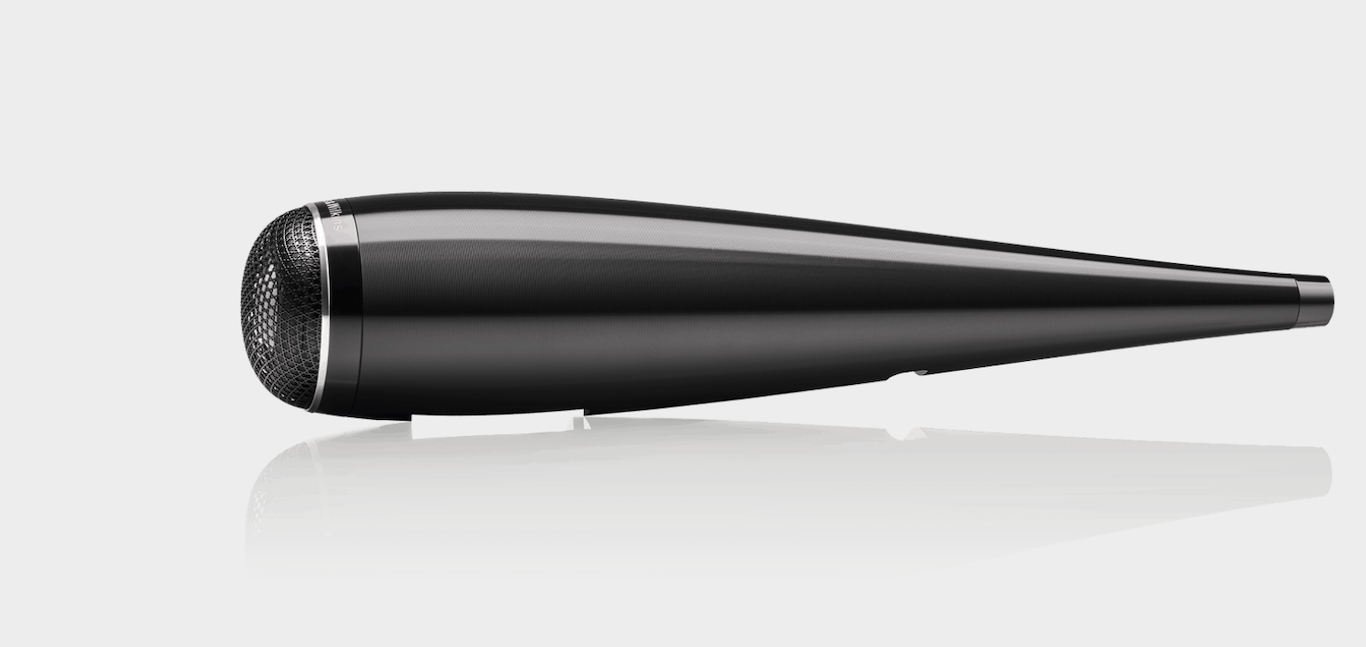

• Diamond dome tweeter
• Solid body Tweeter-on-Top
• Continuum™ cone FST midrange
• Anti-Resonance plug
• Biomimetic Suspension
• Turbine Head
• Matrix™
• Aerofoil™ base cones
• Flowport™

Description – 3-way vented-box system
Drive units

• 1x ø25mm (1in) Diamond dome high-frequency
• 1x ø130mm (5in) Continuum cone FST midrange
• 2x ø180mm (7in) Aerofoil™ bass

Frequency range -6dB 16Hz to 35kHz
Frequency response – 19Hz to 28kHz (+/-3dB)
Sensitivity – 90dB
Harmonic distortion

• 2nd and 3rd harmonics (90dB, 1m on axis)
• <1% 80Hz – 20kHz
• <0.3% 100Hz – 8kHz

Nominal impedance – 8Ω (minimum 3.0Ω)
Recommended amplifier power – 50W – 1000W into 8Ω on unclipped programme
Max recommended cable impedance – 0.1Ω

Cabinet finishes

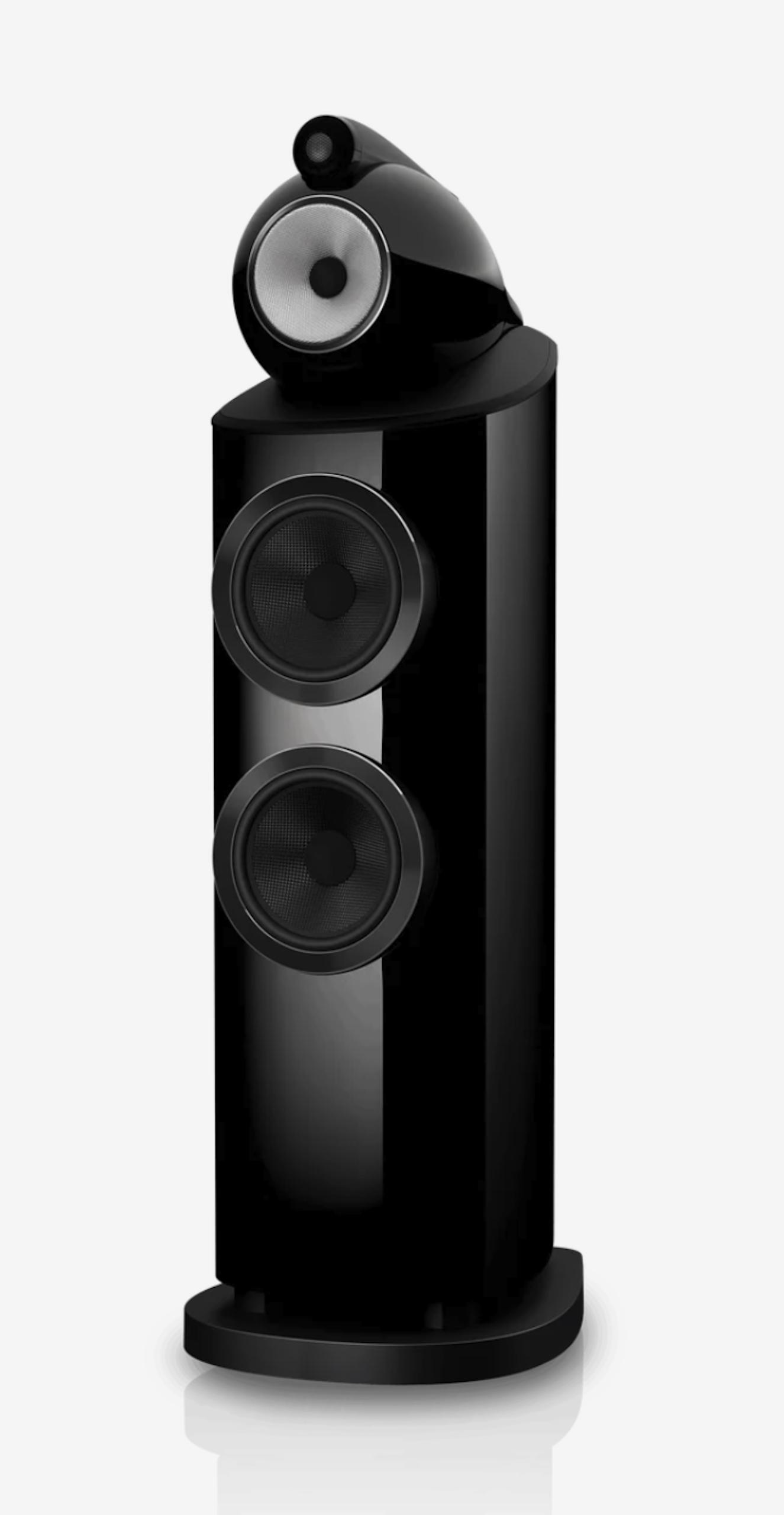

• Stealth Black

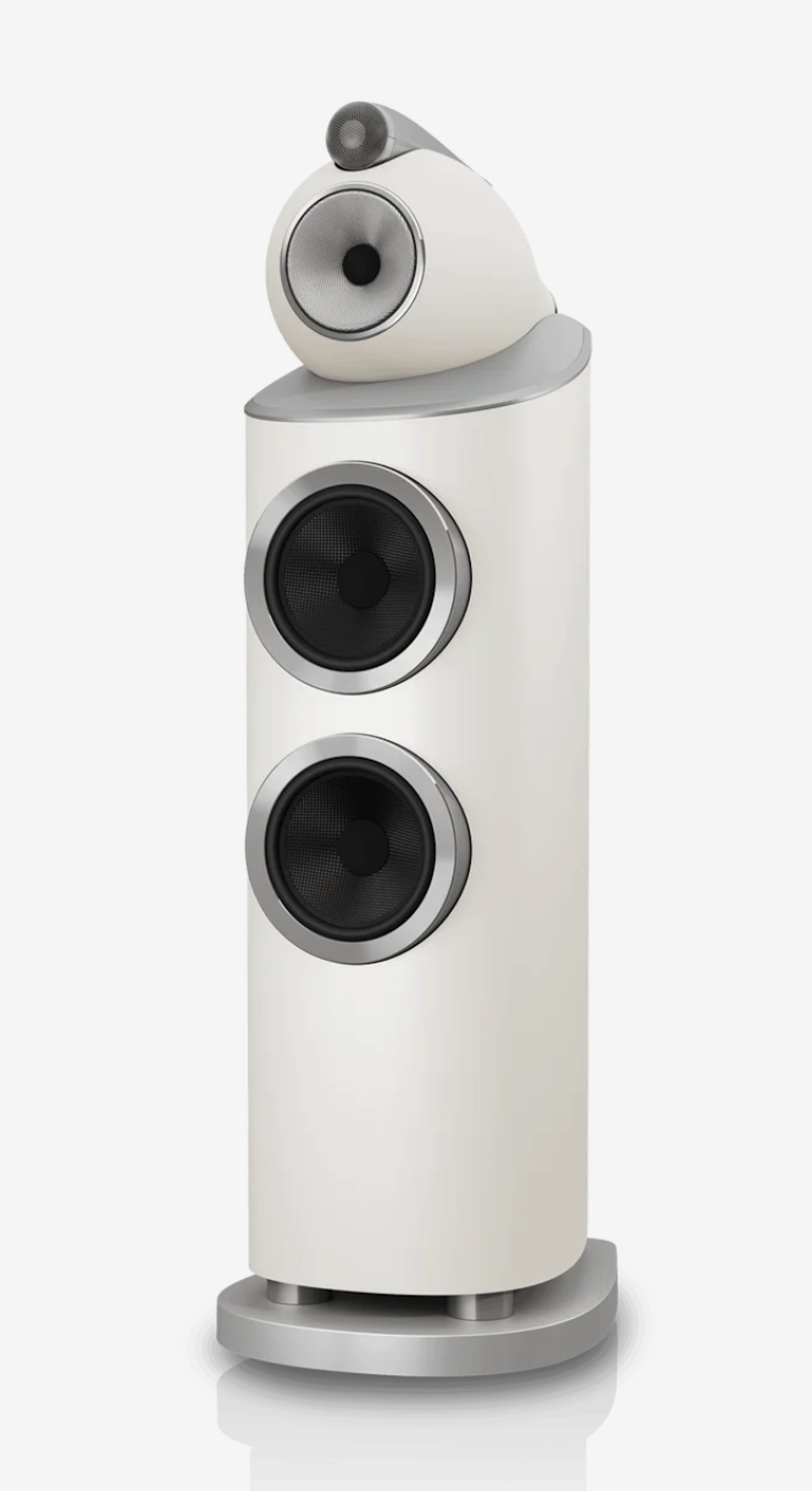

• Warm White

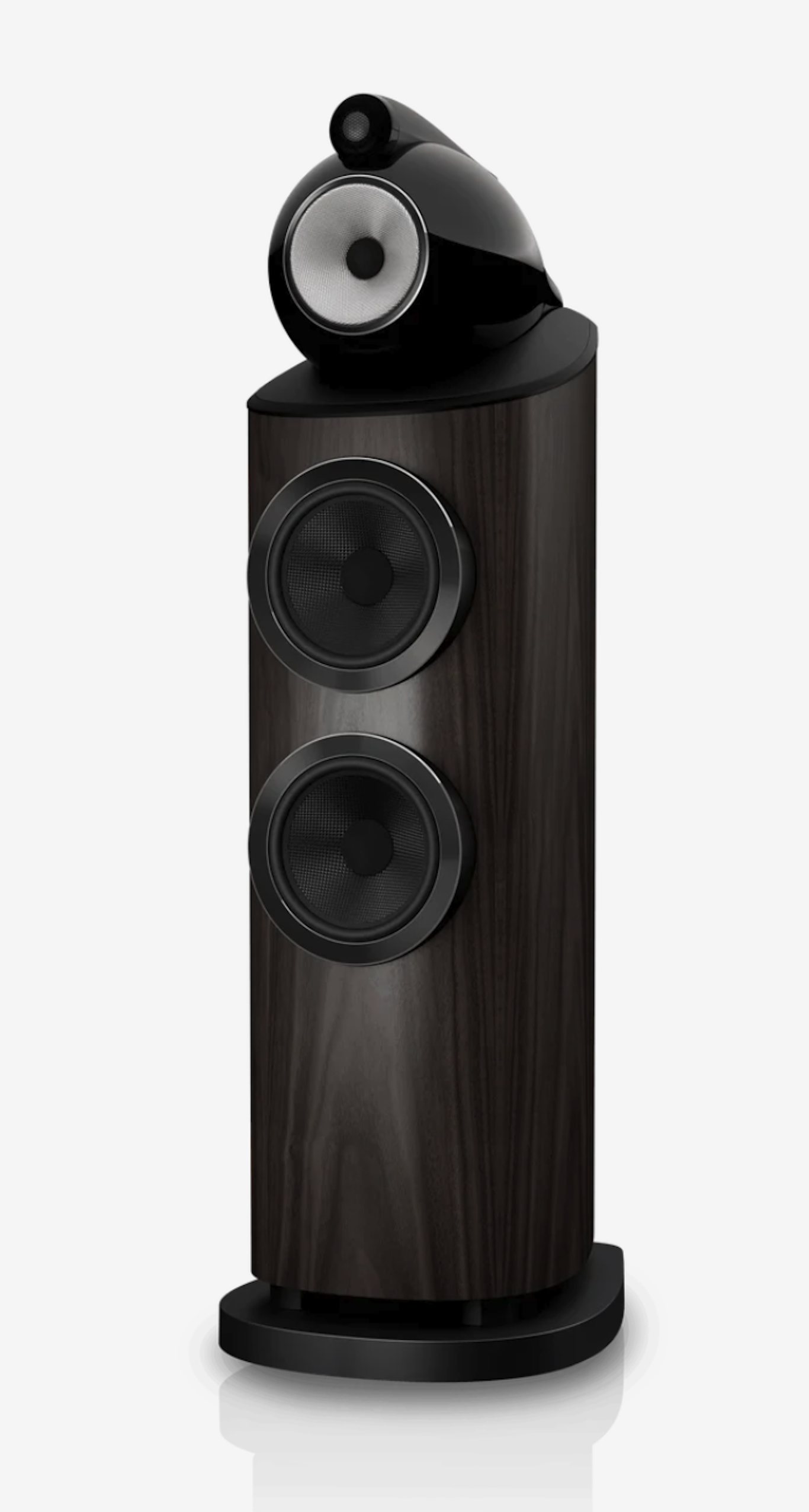

• Dark Walnut

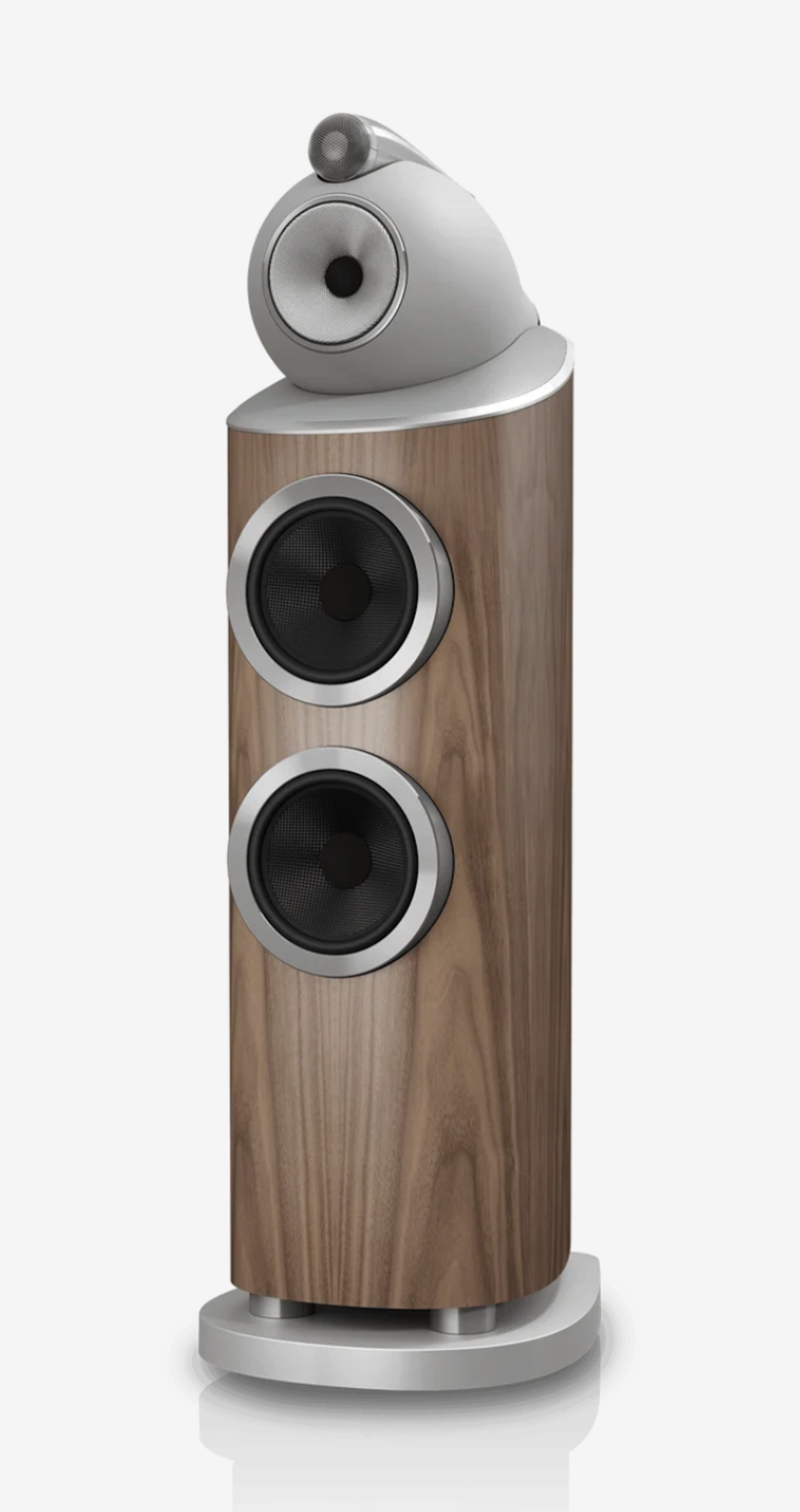

• Light Walnut

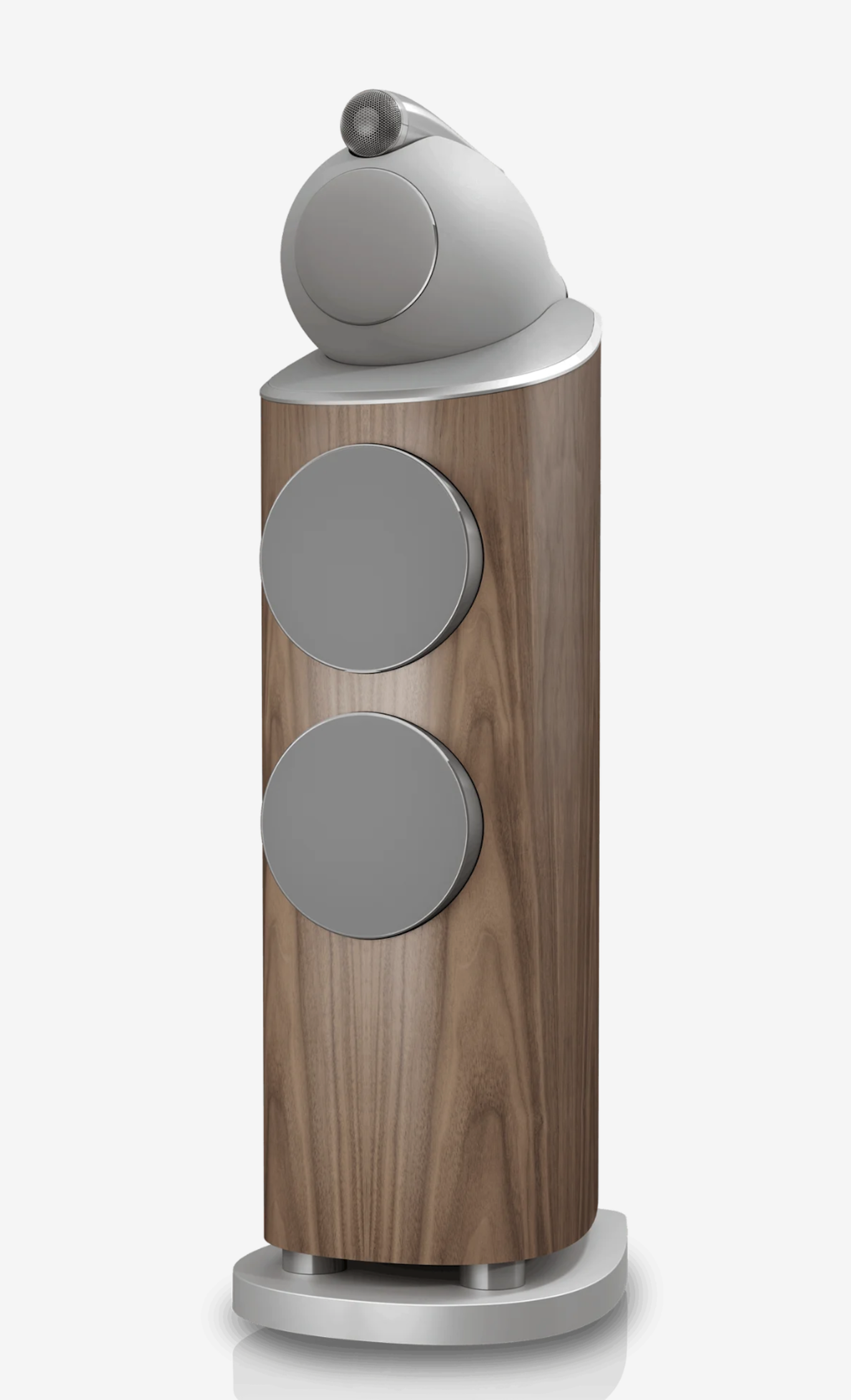

Grille finishes

• Black (Stealth Black and Dark Walnut)
• Grey (Warm White and Light Walnut)
