Fyne Audio Vintage 5


With a touch of class in the integrated Presence control to further refine the sound to your listening environment, the Vintage Five is a bold statement in a compact cabinet.

In-Store Only: This product can only be bought in store.

SKU: FyneAudioVintage5 Categories: , Tags: , ,

Fyne Audio Vintage 5

Fyne Audio Vintage 5

Representing the ultimate fusion of classic loudspeaker aesthetics with advanced acoustic engineering.

The all-new Vintage Series is unashamedly traditional in aesthetics yet encapsulates Fyne’s Technical Director, Dr Paul Mills’, no-compromise approach to leading-edge acoustic engineering.

A timeless traditional design with technology and engineering native to the 2020s.

Each model in the three strong Series features the latest iteration of the IsoFlare driver and FyneFlute roll surround.

These commanding point source drivers combine a multi-fibre low frequency cone LF unit with a 75mm titanium dome compression tweeter driven by a powerful neodymium magnet system.

Premium electronic components, Deep Cryogenically Treated crossovers and Fyne’s ultimate implementation of the BassTrax downward-firing port system, define the acoustic performance across the Vintage models.

Dressed in gloriously retro design, each model features a bespoke, hand-built, twin cavity cabinet fabricated from the finest birch plywood, then contoured into variable radius curves to stop standing waves.

Encased in stunning, hand finished real Walnut veneer, with Burr Walnut inlays and gold anodised metalwork, the Vintage Series loudspeakers exude timeless luxury.

Each model is fitted with Fyne’s Presence Adjustment dial, with a bespoke, hand-crafted knob perfectly weighted complementing the same luxurious feel as the cabinet finishes.

The Vintage Series incorporates Fyne Audio’s BassTrax downward firing port system in its most advanced and highly tuned format to date, along with Fyne’s largest ever BassTrax implementation in the mighty Vintage Fifteen.

Designed as an integrated part of the rigid birch ply cabinets, the lower chamber LF energy is vented downwards onto a large, Tractrix profile diffuser cone that transfers the plane wave LF energy into a 360 degree spherical wavefront.

The Tractrix profile of the diffuser cone maintains a 90 degree angle at each intersection of the expanding wavefront, thus avoiding reflections and creating a smooth bass response in-room.

Fyne Audio Venue

The result is an extended, smooth and incredibly tuneful LF response that integrates seamlessly into the room.

The clever system makes the Vintage loudspeaker much less critical of room positioning, further aiding home integration of the large cabinets.

The system was originally applied to horn loudspeakers in the 1920, brought right up to date by Fyne Audio development and patented over the last five years.

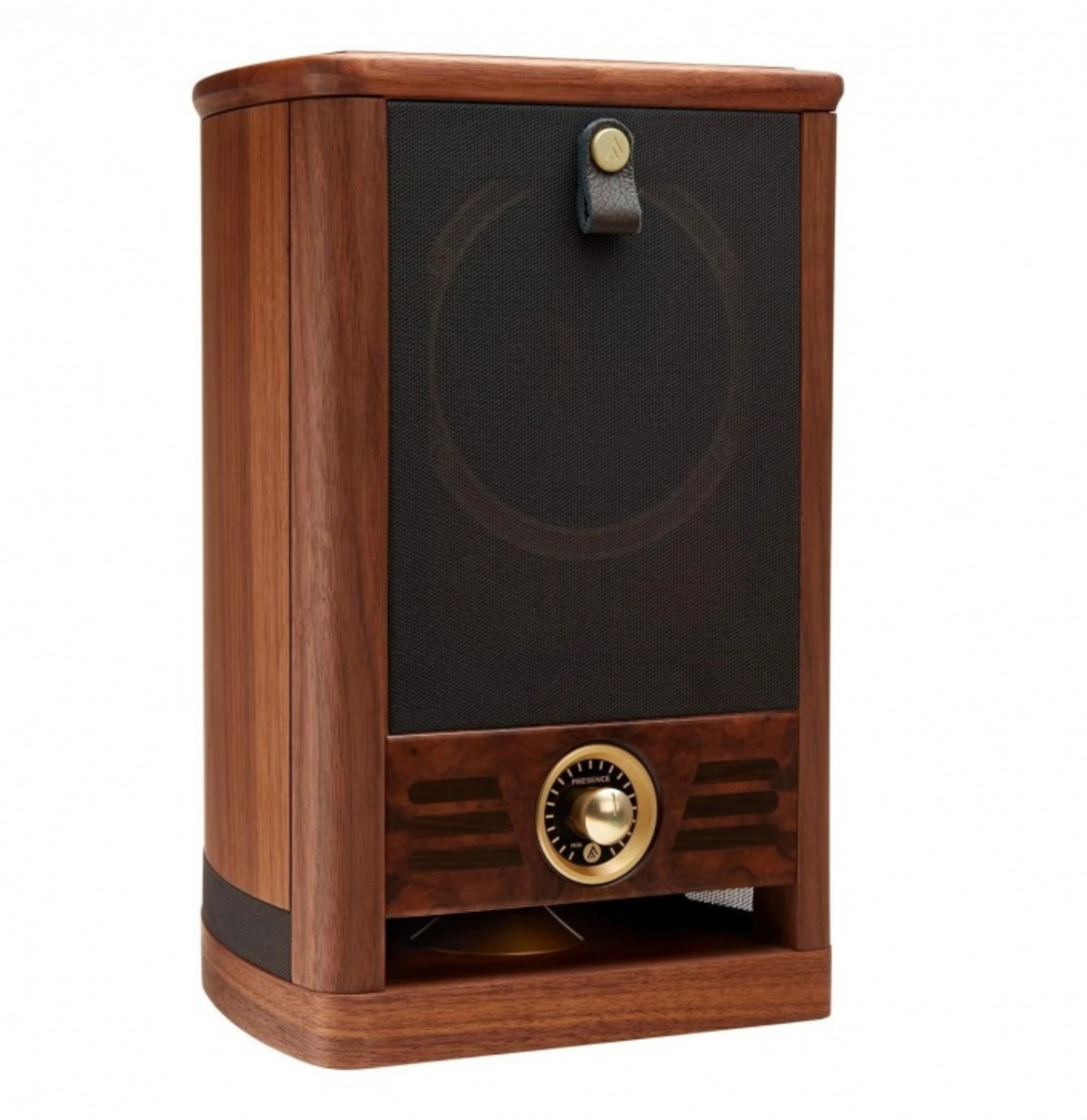

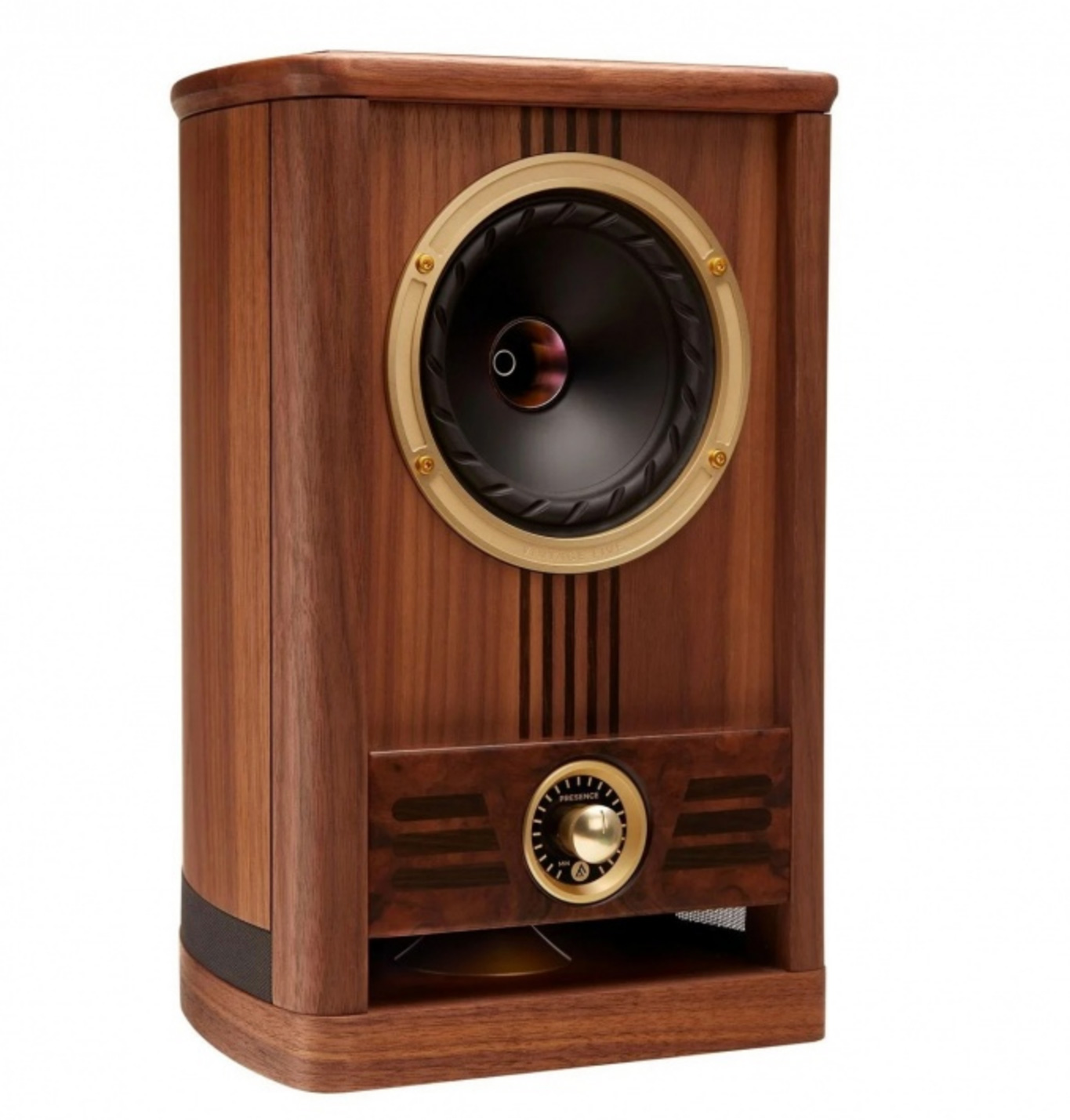

Like it’s larger siblings, this 5” compact bookshelf design celebrates the cabinet finery of traditional loudspeakers alongside the cutting-edge audio engineering of Dr Paul Mills.

The handcrafted enclosures of the Fyne Vintage Five are kept compact to allow easy integration into small and medium sized spaces.

With ‘no compromise’ as the theme across the Vintage Series, the Vintage Five comes with all the audio advancements of its larger siblings, including a 125mm (5”) IsoFlare driver featuring a FyneFlute roll surround, state-of-the art BassTrax downwards-firing port system and hand-built Deep Cryogenically Treated crossovers.

With a touch of class in the integrated Presence control to further refine the sound to your listening environment, the Vintage Five is a bold statement in a compact cabinet.

Specifications: Fyne Audio Vintage 5

Specifications: Fyne Audio Vintage 5
System Type 2 way, downwards firing port, with BassTrax Tractrix diffuser
Recommended amplifier power (Watt RMS) 30 – 100
Peak power handling (Watt) 200
Continuous power handling (Watt RMS) 50
Sensitivity (2.83 Volt @ 1m) 87dB
Nominal impedance 8 Ohm
Frequency response (-6dB typical in room) 46Hz – 38kHz
Drive unit complement 1 x 125mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 19mm magnesium dome compression tweeter, neodymium magnet system
Crossover frequency 1.9kHz
Crossover type Single wired passive low loss, 2nd order low pass, 1st order high pass. Deep Cryogenically Treated
System adjustments Presence (2.5kHz – 5.0kHz) +/- 3dB
Dimensions – HxWxD 350 x 219x 260mm (13.8 x 8.6 x 10.2”)
Net Weight – Each 6.2kg
Finishes Walnut
Cabinet Construction Pressed high density birch ply
Vintage 5


Fyne Audio

Are you are looking to delve into the exciting world of Hi-Fi for the first time? Or perhaps you already know your bi-wire from your bi-amp? Maybe you prefer the sound of a floorstander over a bookshelf, or you’re looking for something a bit more compact and only bookshelf speakers will do? Everyone has their own needs, wants and budget. That’s why each carefully considered Series comes in a variety of finishes, crafted to its own unique style of floorstanding and bookshelf or standmount models. With a mission to bring audiophile quality speakers to each unique Hi-Fi system, all Fyne Audio products use trickle down technology from our audiophile F1 Series. Listen to music like never before, experience Fyne Audio in your home.
