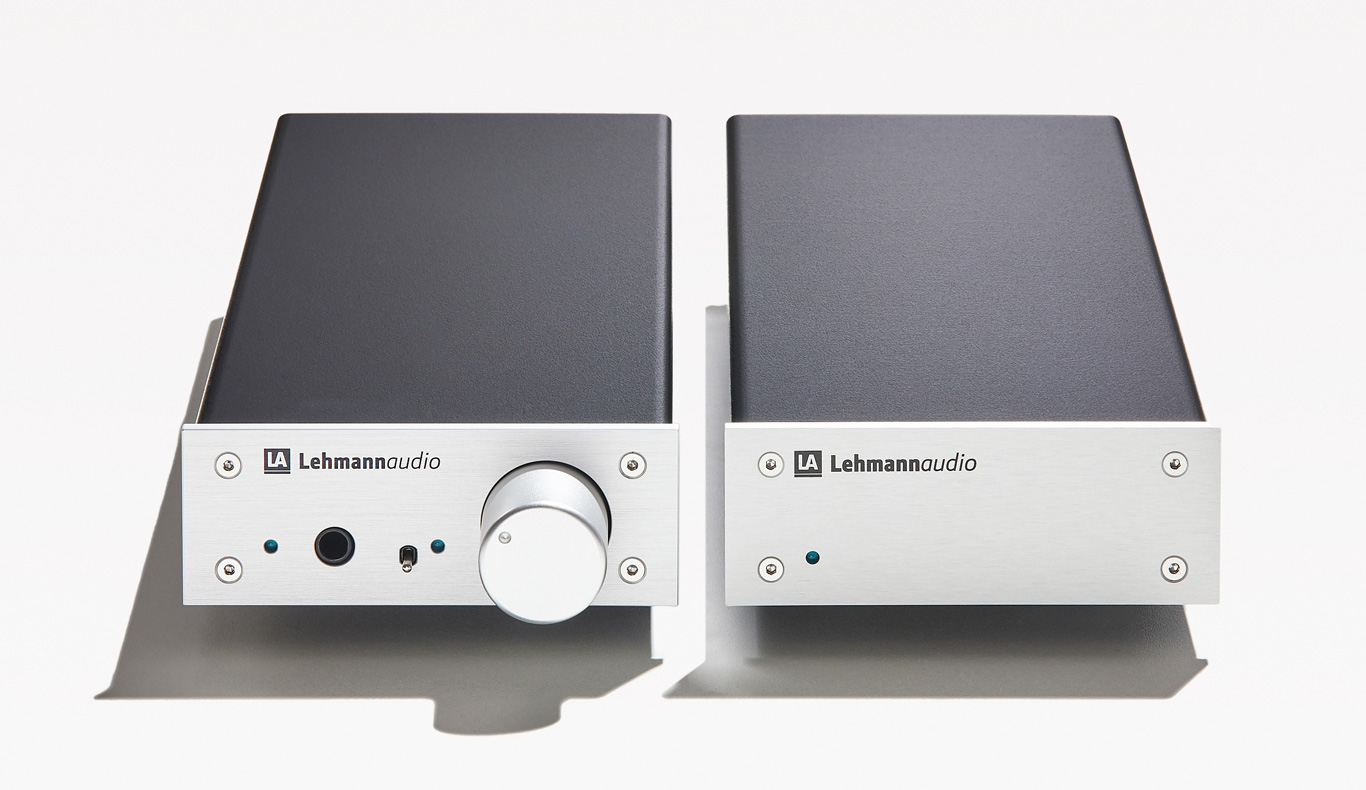

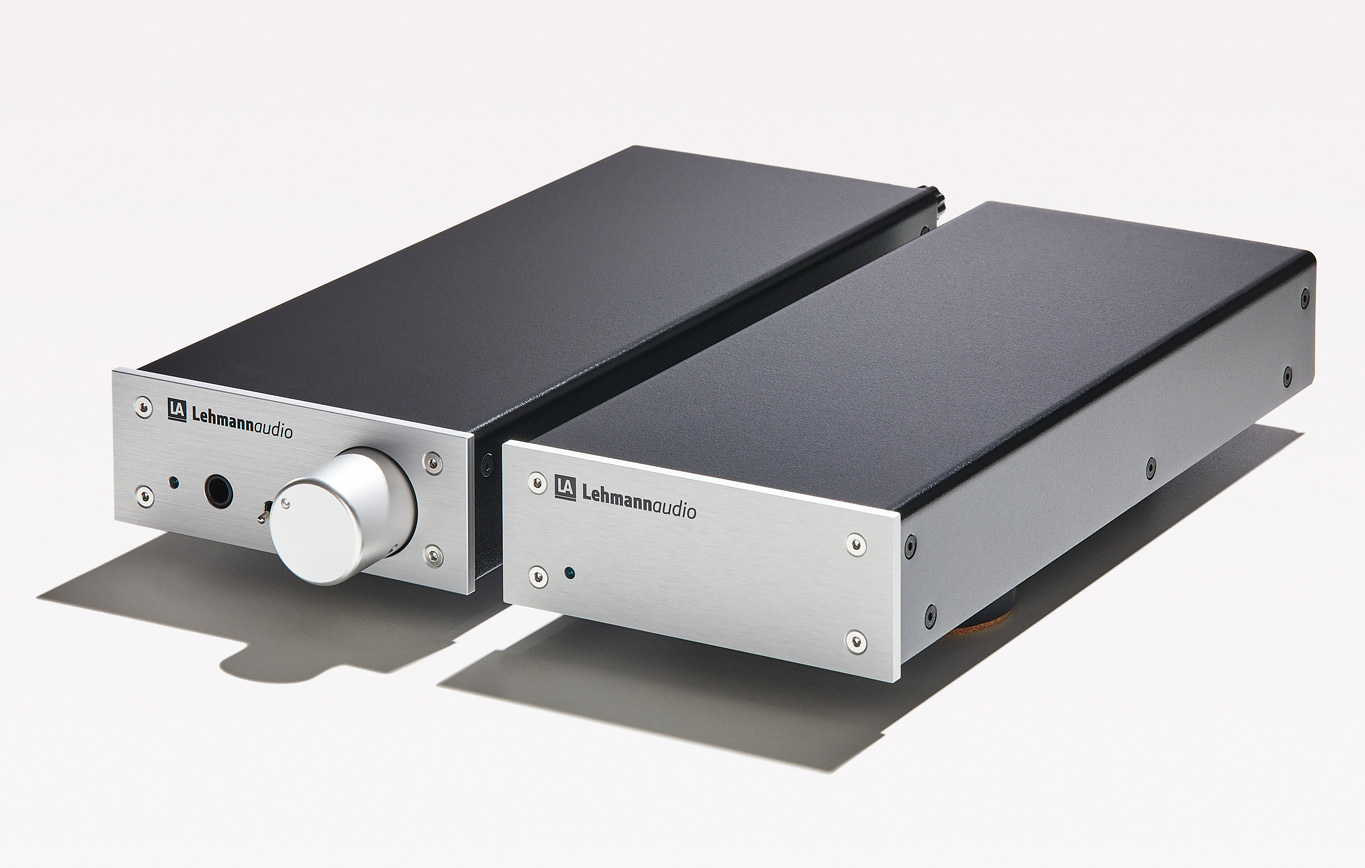

Lehmannaudio Phonolith
The Phonolith combines an enormously ambitious phono preamplifier, a top-class preamplifier and a reference headphone amplifier in one device.
The form factor is unobtrusive, the audio performance leaves nothing to be desired.

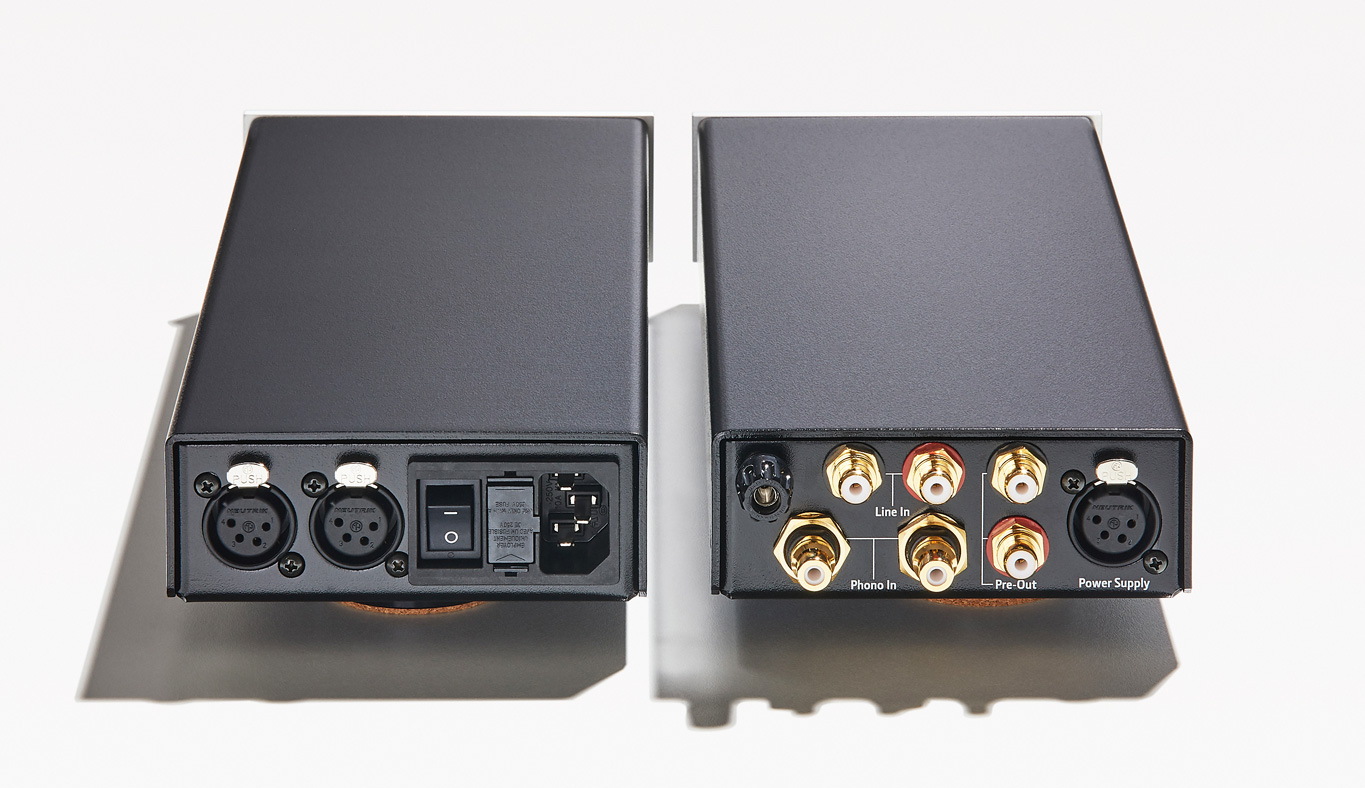

Produced to give convenient access to the hi-fi sector’s most popular playback sources in the modern age, the Phonolith has two inputs.
First, the line-level input is designed to work with your favourite digital source, most likely a streaming device.
Second, it boasts a high-quality phono stage that’s capable of accommodating the very best turntables and cartridges available today.
Both inputs are selected using the switch on the main unit’s front panel.
The phono preamplifier section in the Phonolith offers extensive setting options for cartridge impedance and four different gain settings.
This allows for wide compatibility with most turntable systems.
It also includes an adjustable filter with three selectable cut-off frequencies to ensure silence in the bass range, where necessary.
Lehmannaudio is well-known for its headphone amplifiers, which are used by internationally renowned mastering studios and sound engineers.
The headphone output on the Phonolith is of the highest quality that the company has offered so far, with adjustable output gain to ensure optimal
performance even with insensitive headphones.
The Phonolith’s preamplifier output can easily drive long cable runs and can be connected to any active speakers or power amplifiers, such as the Lehmannaudio Stamp, ensuring that it as flexible to accommodate as possible.
The Phonolith is supplied with a high-quality separate PWX II LZ power supply, housed in a matching chassis, for perfect power delivery and minimal interference with the audio electronics.

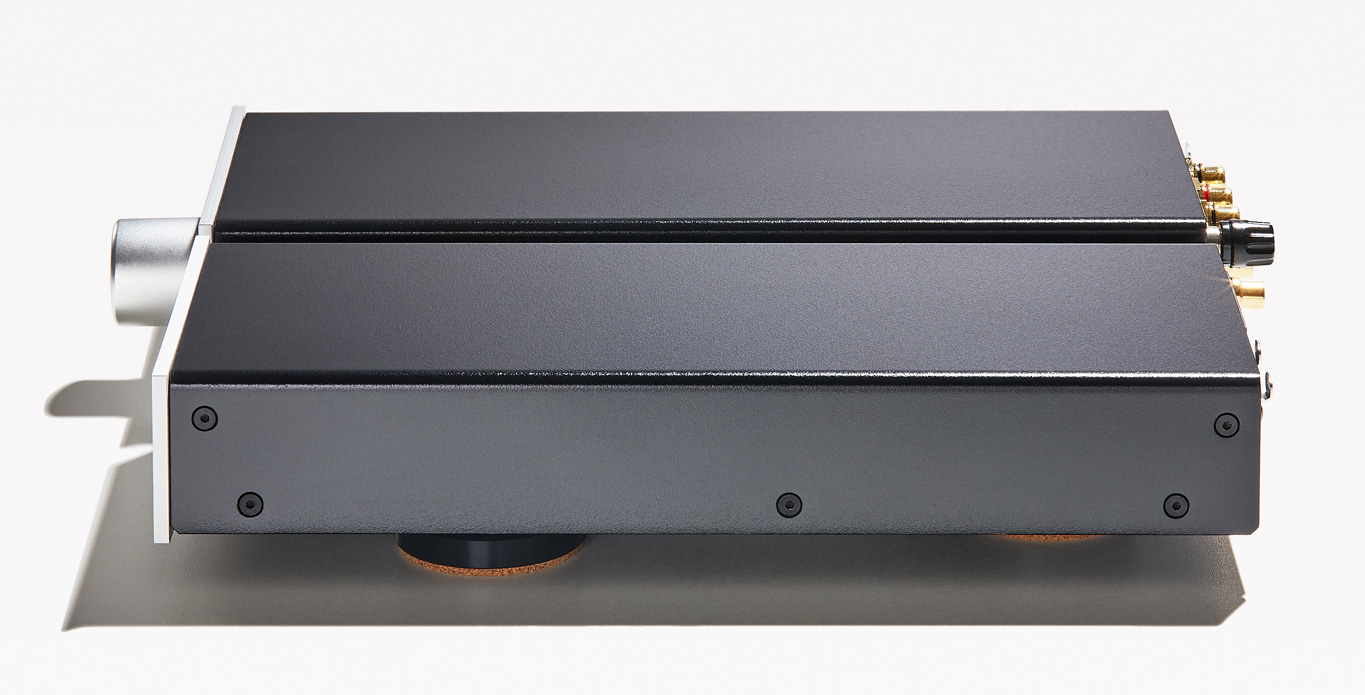

Both the audio and power supply sections benefit from sturdy metal chassis’ with Lehmannaudio’s specially engineered 3S feet underneath, which reliably absorb parasitic resonances
Specifications Lehmannaudio Phonolith
- Input Impedance (MM)
47 kΩ
- Input Impedance (MC)
100Ω, 390Ω, 1000Ω and 7000Ω selectable
- Phono Stage Gain (MM)
36 or 46 dB
- Phono Stage Gain (MC)
56 or 66 dB
- Amplifier Voltage Output
Max. 9V eff.
- Channel Separation
> 70 dB
- Subsonic Filter
7 Hz, 32 Hz, 50 Hz, 78 Hz selectable via DIP switches
- Output Impedance
50 Ω
- RCA Input(s)
2 (1 x Phono)
- Headphone Output
6.3mm Jack
- Headphone Amp Output Power
400 mW (60Ω), 200 mW (300Ω)
- Headphone Output Impedance
5 Ω
- Variable Analogue Output(s)
1 x RCA Pair
- Maximum Power Consumption
13 W
- Dimensions (W x H x D)
110 x 50 x 280 mm
- Additional Dimensions (W x H x D)
(Power Supply) 110 x 50 x 280 mm
- Weight
2.8 kg
