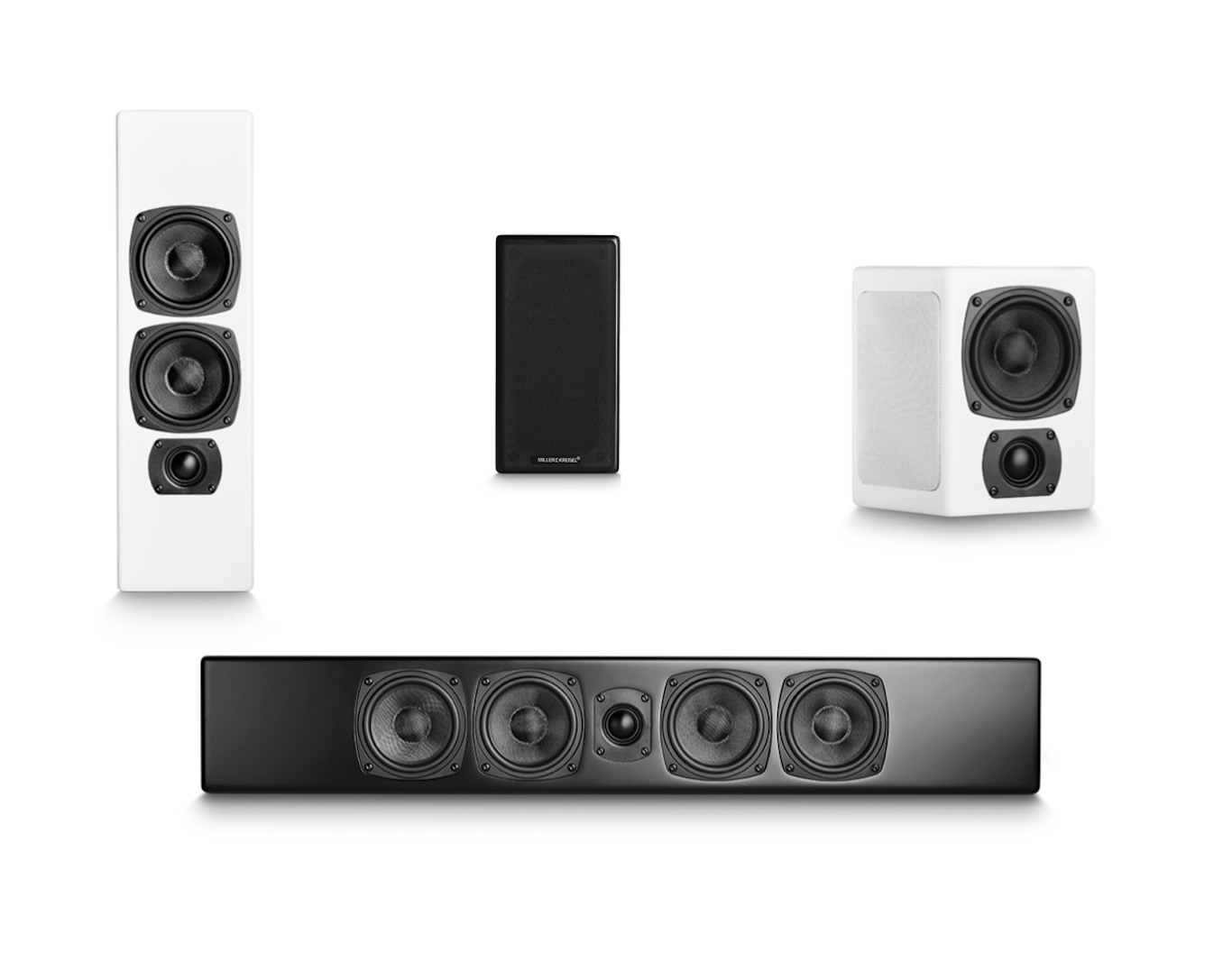

Miller & Kreisel® M Series

Miller & Kreisel® M Series

NEW design – form and function are optimized for today’s listening and viewing experience. The décor-friendly On-Wall design gives the customers the flexibility for an easy and simple installation where performance and aesthetic are the core elements.

The ultra slim, low-profile enclosure is the benchmark for the NEW Miller & Kreisel® M Series. All models are designed specifically for direct On-Wall mounting and is fitted with integral rear panel brackets, along with specially designed damping pads to ensure easy and vibration-free installation. All mounting accessories are included providing a simple and hassle-free installation

All models feature new components as well as a new improved cross-over making each model a true voice match within the M Series.

The M Series employs proprietary Miller & Kreisel Phase-Focused crossover technology to achieve seamless integration of woofers and tweeter in the frequency domain. The carefully optimised crossover points add new dimensions to the famed clarity of Miller & Kreisel loudspeakers by implementing ideal transient response and time domain characteristics.

As a result of extensive frequency domain and time domain analysis, Miller & Kreisel® M Series speakers deliver smooth response over a very wide listening window, as well as more focused and coherent sound on-axis all the way up to the highest frequencies. For all these reasons, the in-room response of the M Series is defined by the three-dimensional realism that has put Miller & Kreisel at the forefront in the art and science of sound reproduction.

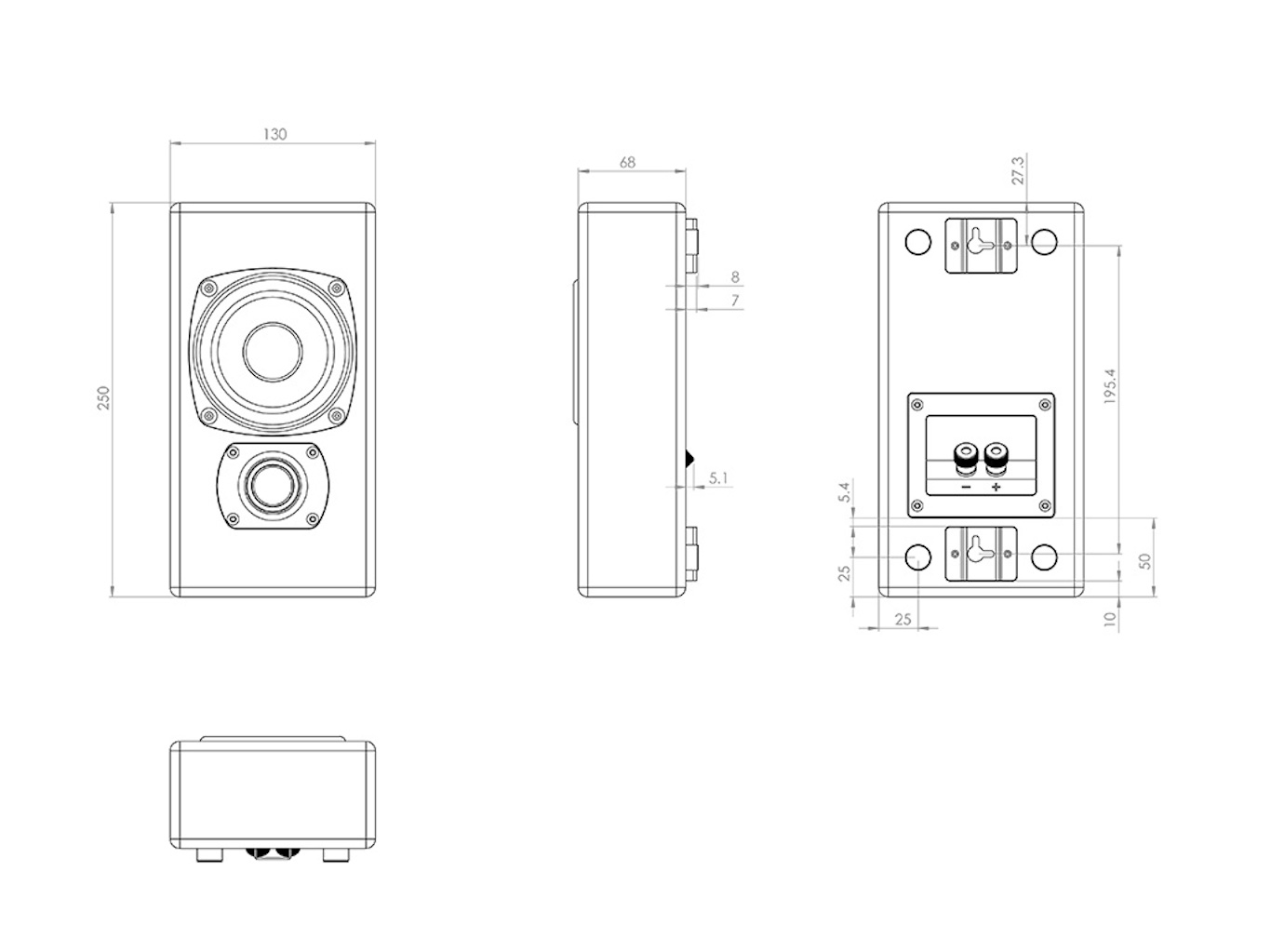

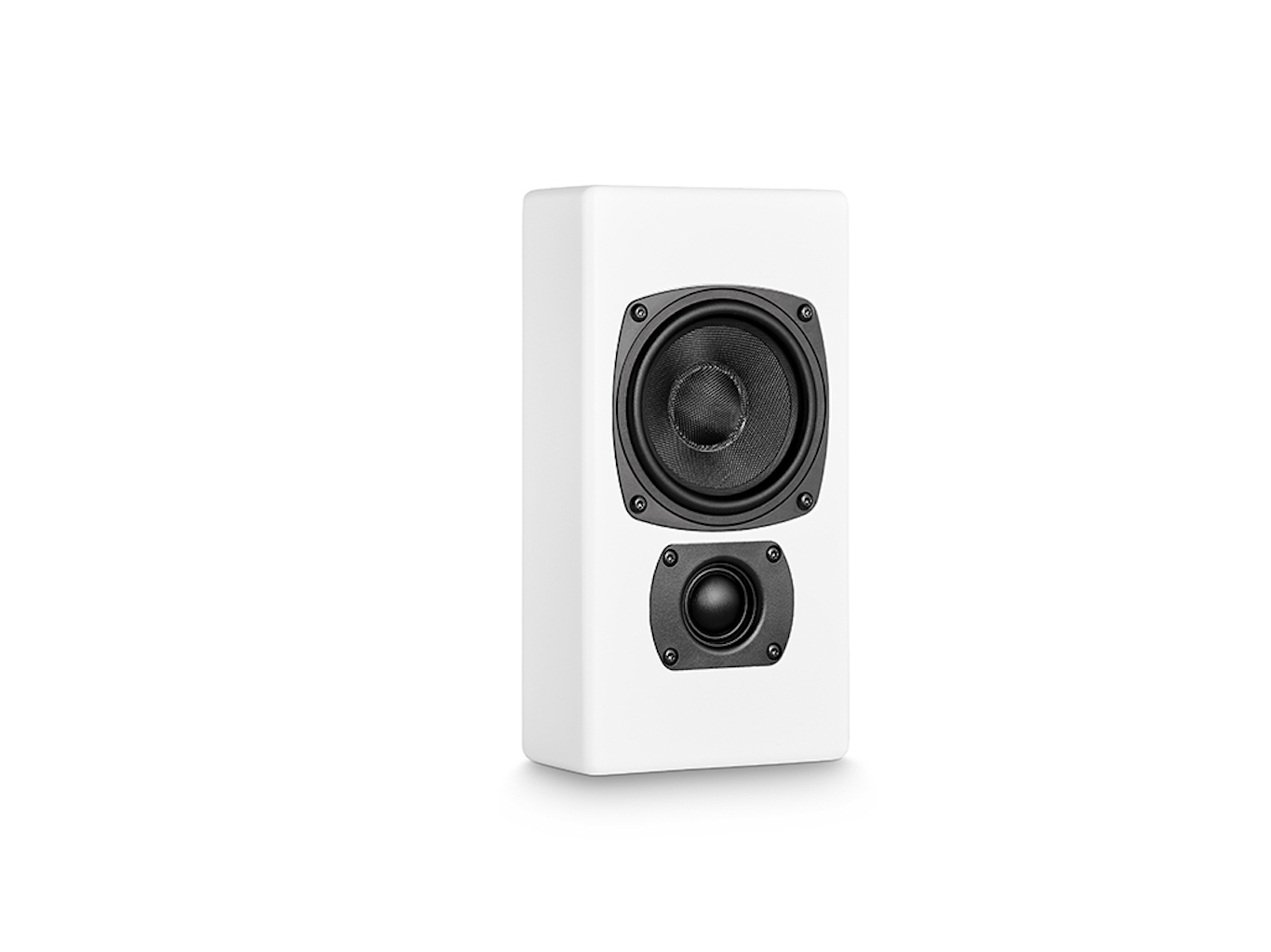

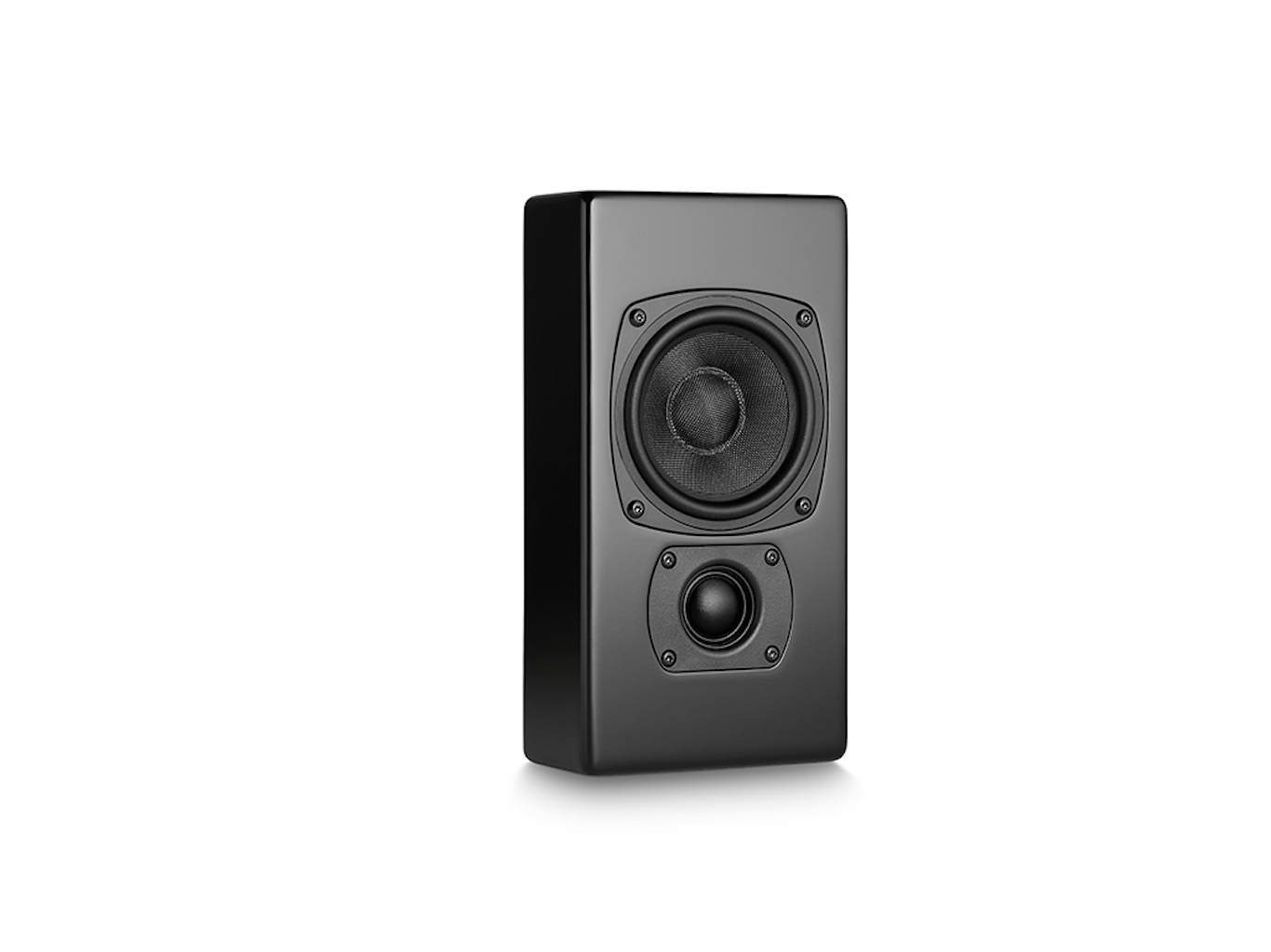

Miller & Kreisel® M50 Speaker

The redesigned M50 offers a more compact solution than the larger M70 for customers who require a more discreet on-wall home cinema or music system.

The M50 employs identical drivers to the M70 and M40T models, and is available in stylish Black Satin and White Satin colour options. Voice-matched to the rest of the M Series, the M50 can be an ideal solution for building out a bijou home cinema or multi-room music system on a budget.

Specifications for the M50 Speaker

SOUND
Nominal system impedance: 4 ohm (Z-min 4.9 ohm)
Frequency Response: 100-20Khz (average response in room +/- 2dB)
Frequency Roll Off: 100Hz (-6dB 100 Hz near field wall mounted)
Crossover Frequency: 1.8 Khz “Phase focused” (4th&2nd order)
Tweeter (shielded): 1” Dome – Coated silk dome / Neodymium magnet
Woofer (shielded): 4” Coated glass fibre
Power Handling: 80 watt Long term IEC-268-5 (cycled input 100-20Khz)
Power Handling: 50 watt (Rated IEC-268-5 (constant input 100-20Khz)
Recommended Amplifier Power: 25-125 watt
Sensitivity: 85 dB (Average SPL 2.83 Volt / 1mtr (on axis 200-10KHz)
System Principle: Sealed enclosure
Connection: Terminal gold plating (Screw for 5 mm cable / Banana)
Dimensions HxWxD: 9,8 x 5,1 x 3,3 inch – 25 x 13 x 8,5cm (incl grill)
Weight: 4.4 lb / 2.0 kg

COLOURS
Finish: Black / White satin

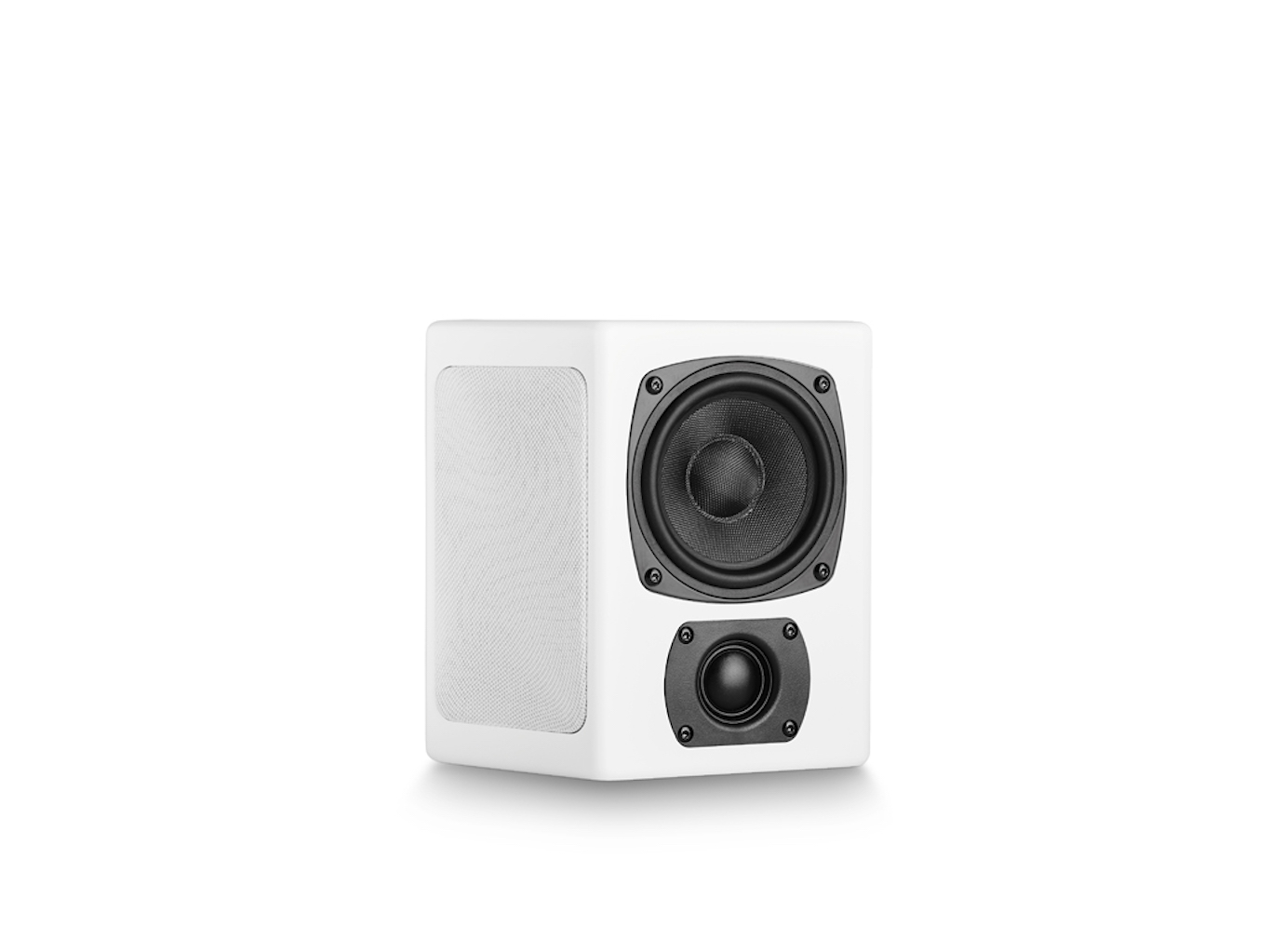

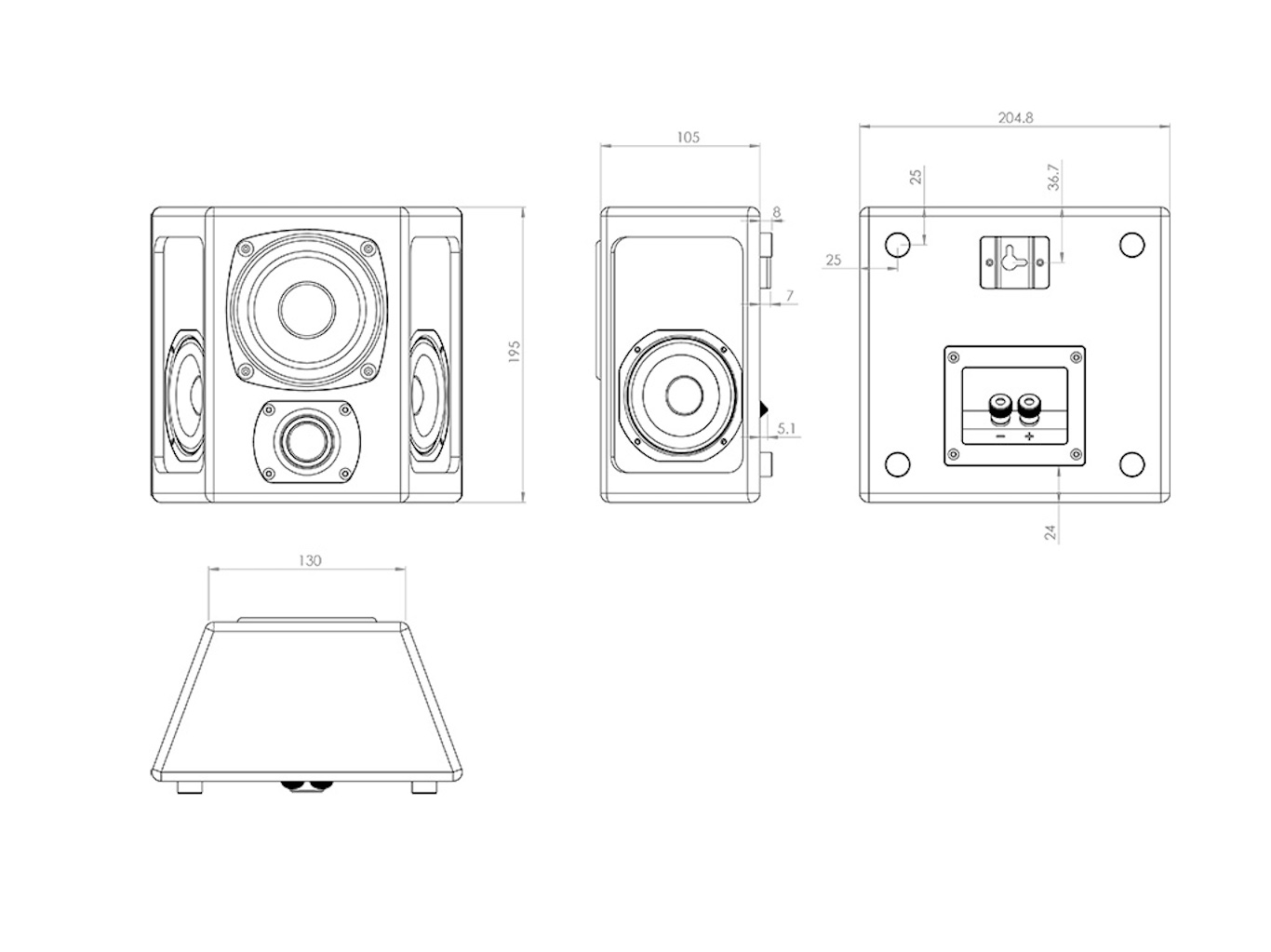

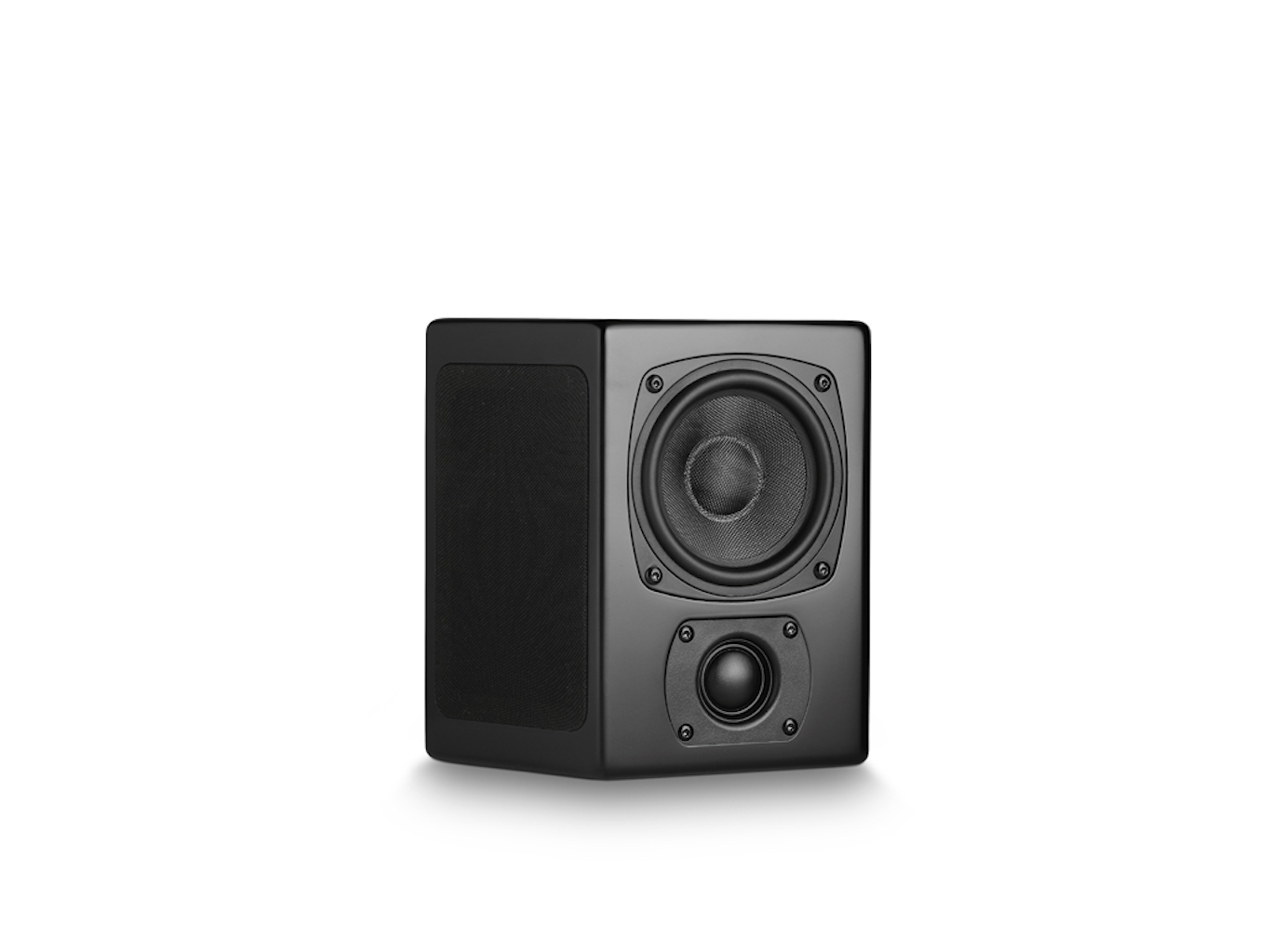

Miller & Kreisel® M40T Tripole® Speaker

The M40T Tripole® is a multi-polar side- and rear-channel speaker, and forms part of the compact M Series family. This nifty surround loudspeaker designed for small home cinemas offers the benefits of M&K Sound’s exclusive Tripole® technology in a remarkably compact and affordable package.

The M40T combines direct radiating front mounted drivers with dipolar side-mounted drivers in the same cabinet. When this unique driver arrangement is blended with M&K Sound’s proprietary Phase Focused Crossover, the M40T Tripole® provides extraordinarily even dispersion of sound across a broad listening area with superior imaging and sonic quality.

Specifications for the M40T Speaker

SOUND
Nominal system impedance: 4 ohm (Z-min 4.6 ohm)
Frequency Response: 100-20Khz (average response in room +/- 2dB)
Frequency Roll Off: 100Hz (-6dB 100 Hz near field wall mounted)
Crossover Frequency: 2.0 Khz “Phase focused” (4th&2nd order)
Tweeter (shielded): 1” Dome – Coated silk dome / Neodymium magnet
Woofer (shielded): 4” Coated glass fibre
Side drivers (shielded): 2 X 3″ (Polymer Coated Textured Paper)
Power Handling: 80 watt Long term IEC-268-5 (cycled input 100-20Khz)
Power Handling: 50 watt (Rated IEC-268-5 (constant input 100-20Khz)
Recommended Amplifier Power: 25-125 watt (Recommended amp power to drive speaker)
Sensitivity: 85 dB (Average SPL 2.83 Volt / 1mtr (on axis 200-10KHz)
System Principle: Sealed enclosure
Connection: Terminal gold plating (Screw for 5 mm cable / Banana)

DIMENSIONS
Dimensions HxWxD: magnet7.7 x 7,8 x 4,8 inch- 19.5 x 20 x 12,2 cm (incl grill)
Weight:6.5 lb / 2.9 kg

COLOURS
Finish:
Black / White satin

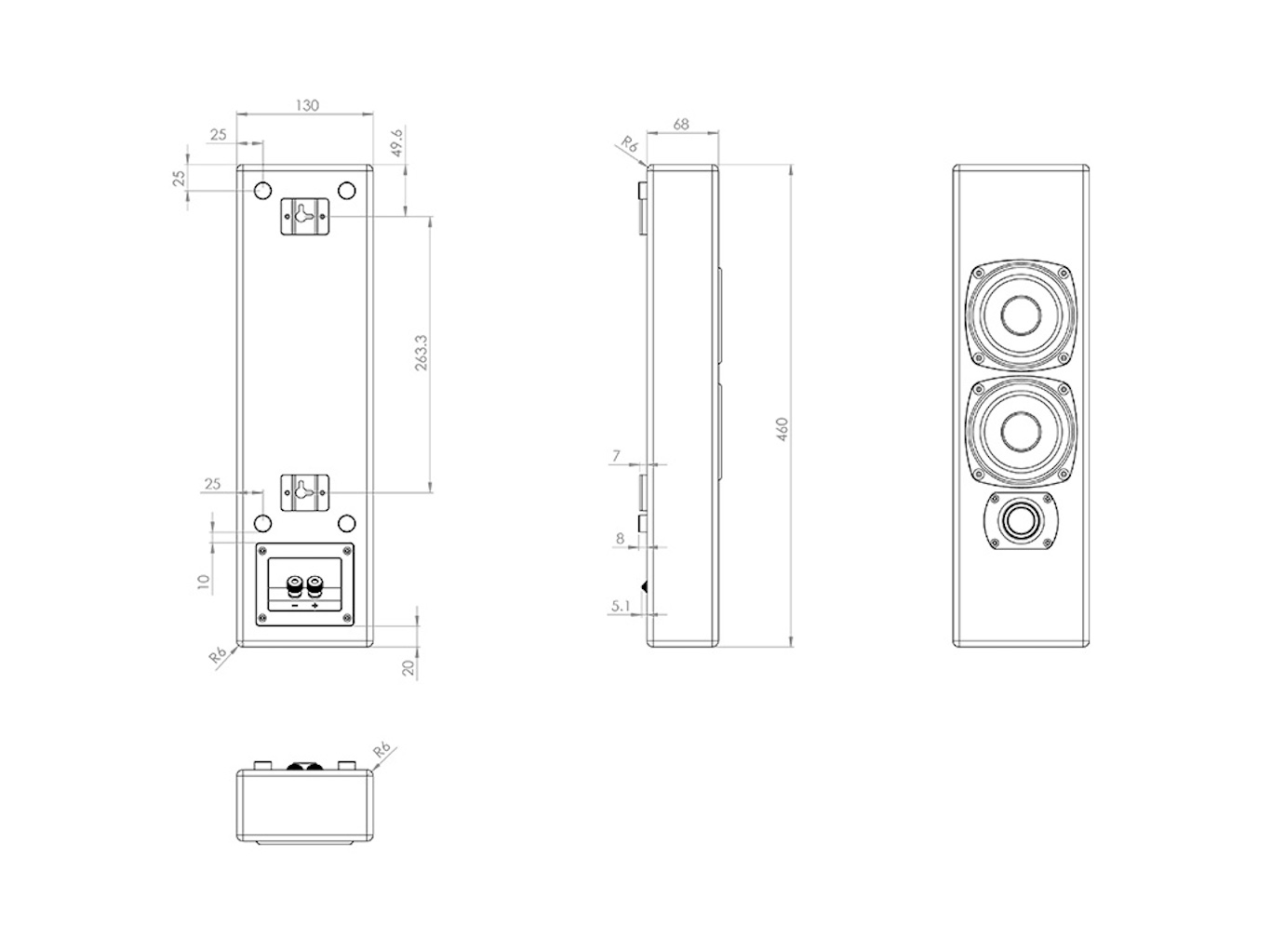

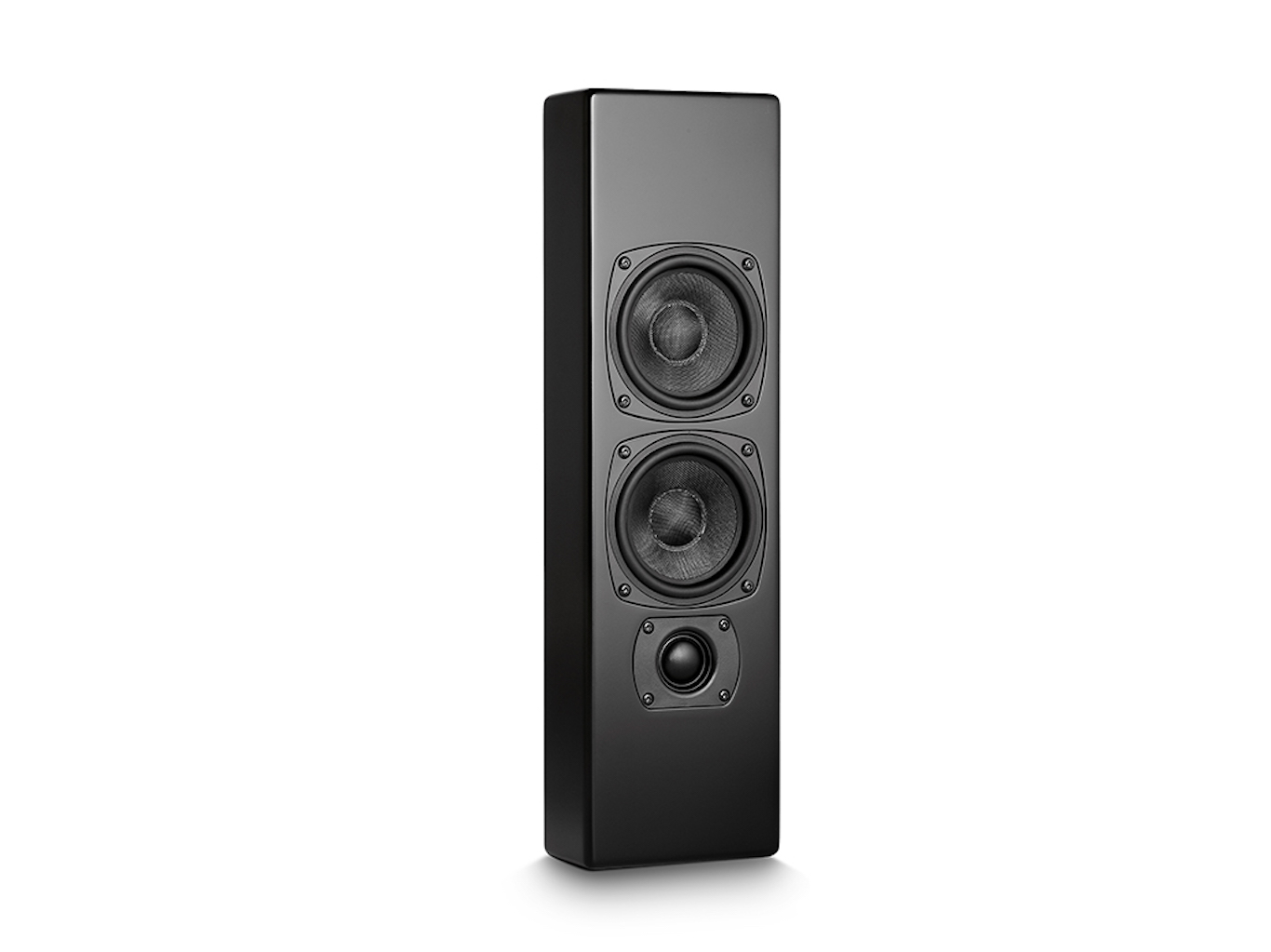

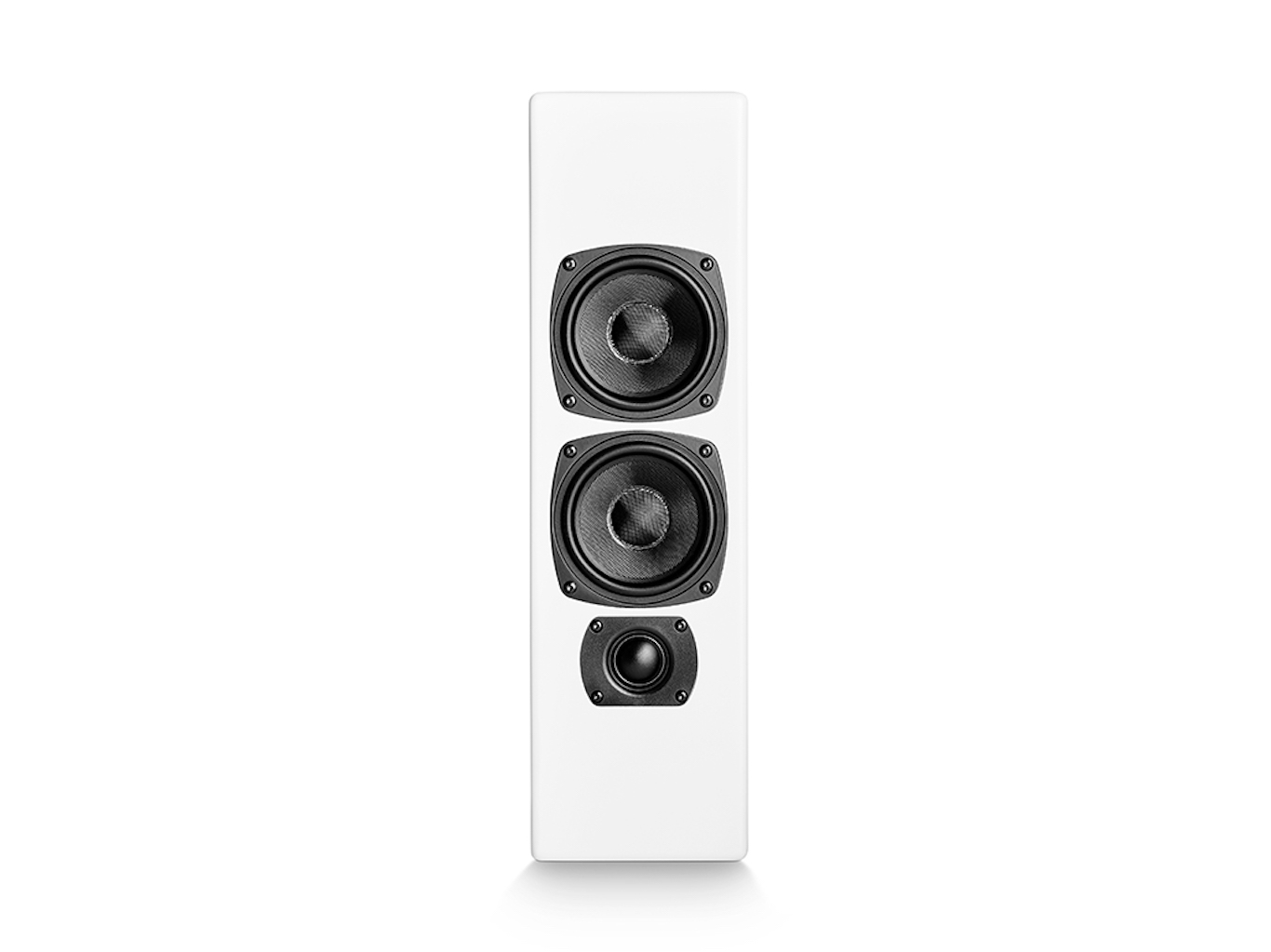

Miller & Kreisel® M70 Speaker

Both form and function are optimized for today’s listening and viewing experience with M&K Sound’s latest version of the M70 Speaker. This décor friendly on-wall design loudspeaker enables customers to perform a simple installation at home. While embodying performance and aesthetics as its core elements, the M70’s ultra-slim, low-profile enclosure is the benchmark of the M Series.

All models in the range are designed specifically for direct on-wall mounting, and are fitted with integrated rear panel brackets and specially designed damping pads to ensure a vibration-free installation. Mounting accessories are included for an easy and hassle-free deployment. The entire Miller & Kreisel® M Series features new and improved components and crossover circuits, making each model truly voice-matched to its siblings.

Specifications for the M70 Speaker

SOUND
Impedance 4 ohm
Frequency Response: 80 – 20Khz (+/- 2dB)
Frequency Roll Off: 80Hz (-10dB 80 Hz near field wall mounted)
Crossover Frequency: 1.8 Khz
Tweeter (shielded): 1” Dome – Coated silk dome / Neodymium magnet frequency
Woofer (shielded): 2 x 4” Coated glass fibre
Power Handling: 125 watt (Long term IEC-268-5)
Power Handling: 70 watt (Rated IEC-268-5)
Recommended Amplifier Power: 25-200W
Sensitivity: 89 dB
System Principle:
Sealed enclosure Wall

DIMENSIONS
Dimensions HxWxD: 18,1 x 5,1 x 3,3” / 46 x 13 x 8,8 cm
Weight: 8.4 lb / 3,8 kg

COLOURS
Finish: Black / White satin

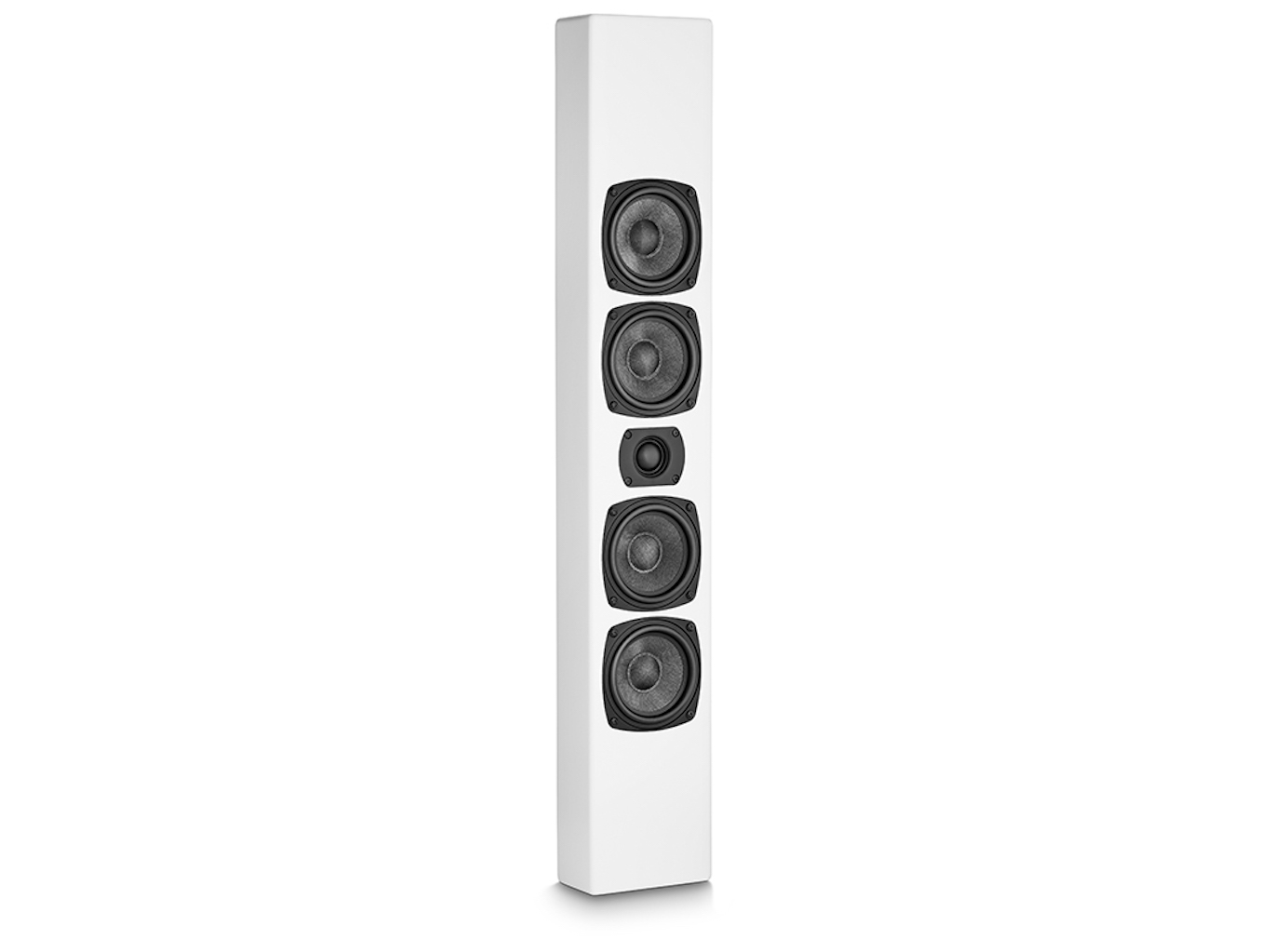

Miller & Kreisel® M90 Speaker

M90 is a step-up to the M50 and M70 speakers. The décor friendly On-Wall ultra slim and low enclosure design is the benchmark for all M Series.

In the NEW M90, we have added 2 additional bass drivers, it adds both sensitivity and bass response. Ideally suited for rooms where extra output is needed.

The M90 has each set of woofers in their own anti-resonant acoustic chamber, the center 2 working as a midrange, and the other 2 woofers covering bass frequencies. This is to ensure minimal distortion and cabinet resonances common with slim speakers.
The M90 is also phase aligned to operate as an ideal center channel speaker, with 100% symmetric coverage vertically and horizontally

In addition to the performance enhancements of the M90, it also sports a long profile, designed to match up to today’s large format flat screen TV’s for a more pleasing aspect ratio.

Specifications for the M90 Speaker

SOUND
Nominal System Impedance 4 ohm (Z-min 3.4 ohm)
Frequency Response: 70-20K Hz (average response in room +/- 2 dB)
Frequency Roll Off: 70 Hz (-10 dB 80 Hz near field wall mounted)
Crossover Frequency: 600 Hz / 2.0 KHz “Phased focused” (2nd order) Tapered
Tweeter (shielded): 1” Dome Coated Silk dome / Neodymium magnet
Woofer 4 x 4″ Coated Glass Fiber
Power Handling: 150 watt Long term IEC-268-5 (cycled input 80-20K Hz)
Power Handling: 70 watt Rated IEC-268-5 (constant input 80-20K Hz)
Recommended Amplifier Power: 25-200W (Recommended amp power to driver speaker)
Sensitivity: 89 dB
System Principle: Sealed enclosure
Connection: Terminal gold plating Screw for 5mm Cable / Banana

DIMENSIONS
Dimensions HxWxD: 31,5 x 5,1 x 3,3 inch / 80 x 13 x 8,5 cm (incl grill)
Weight: 12.40 lbs / 5.62 kg

COLOURS
Finish: PaintedBlack / White Satin
