Musical Fidelity Nu-Vista Vinyl S

£5,499.00

 The Nu-Vista Vinyl S delivers the luxurious sound of Musical Fidelity’s nuvistor tube technology at a more accessible price, with a compact design and uncompromising performance.

Musical Fidelity Nu-Vista Vinyl S

Phono stage

Nu-Vista Vinyl S

 The Nu-Vista Vinyl S delivers the luxurious sound of Musical Fidelity’s nuvistor tube technology at a more accessible price, with a compact design and uncompromising performance.

Refined Design, Compact Footprint

The Nu-Vista Vinyl S retains the signature aesthetic and build quality of its predecessor while introducing a new, slimmer “S” chassis.

With a 45% reduction in mechanical footprint, it offers the same tactile luxury and robust construction in a more space-efficient form.

Milled from extruded aluminium, the chassis acts as a Faraday cage, shielding sensitive components from vibration and electromagnetic interference.

The streamlined aluminium remote control completes this elegant package.

Balanced Architecture for Pure Sound

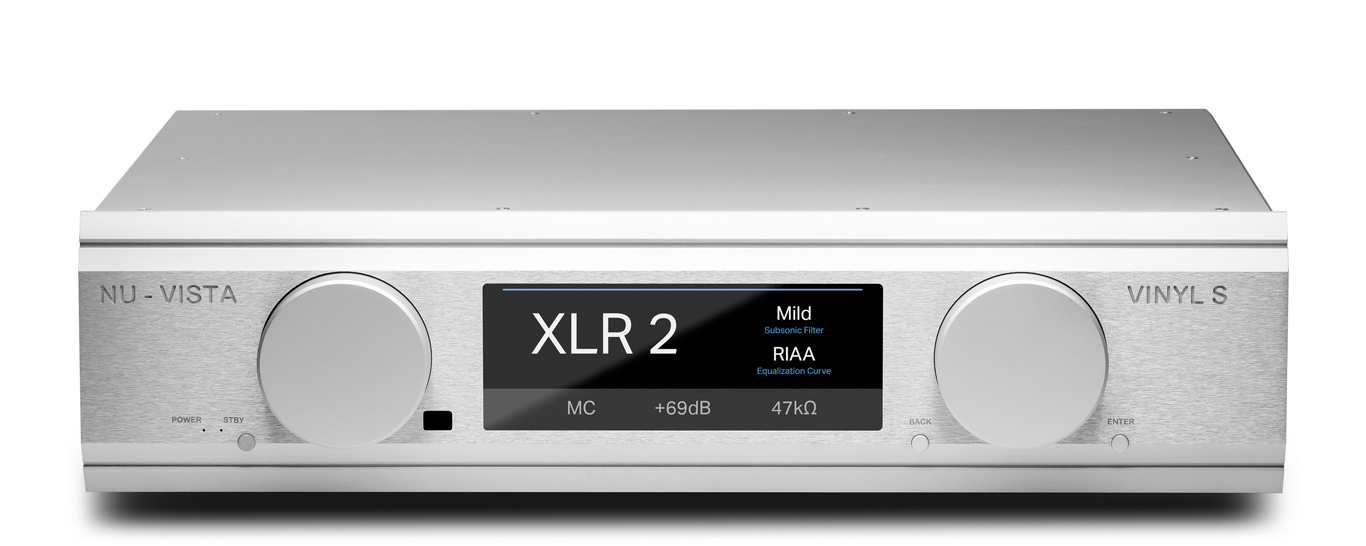

Nu-Vista Vinyl S-silver

At its core, the Vinyl S features fully balanced, discrete Class A circuitry, mirroring the acclaimed Nu-Vista Vinyl 2.

Its phono preamplification includes three gain stages and a split-passive EQ design, ensuring precise RIAA, DECCA, and COLUMBIA curve reproduction.

Each channel has its own board and balanced Nuvistor stage, delivering ultra-low noise and distortion. RCA and XLR outputs operate independently, allowing simultaneous use.

Versatile Cartridge Compatibility

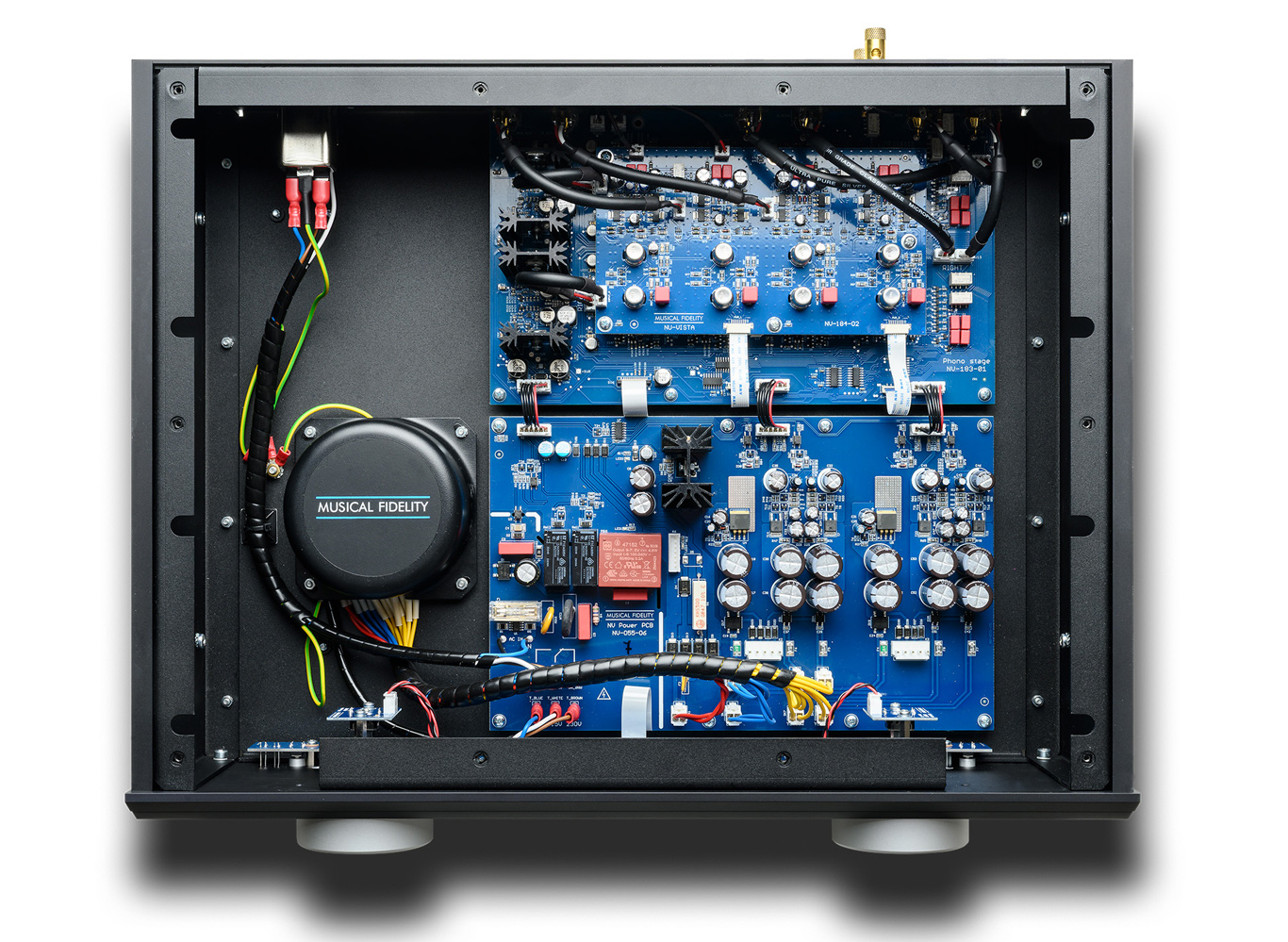

phono stage internals

The Vinyl S offers extreme cartridge loading flexibility, with each RCA or XLR input configurable for MM or MC cartridges.

Settings are stored per input and offers gain ranges from 40dB to 69dB (100x to 3690x amplification).

Signal relays and JFET-switched capacitance and impedance ensure silent, distortion-free operation.

This makes it ideal for matching with virtually any cartridge, preserving the artist’s intent with astonishing clarity.

Power and Precision

Musical Fidelity’s Super Silent Power Transformers power the Vinyl S, featuring EMI filters, DC blockers, and encapsulated toroidal transformers for minimal interference.

Each channel benefits from its own symmetrical low-noise power supply, with passive filtering and regulation.

DC servos maintain optimal operating conditions, ensuring every microvolt from your cartridge is handled with the utmost care.

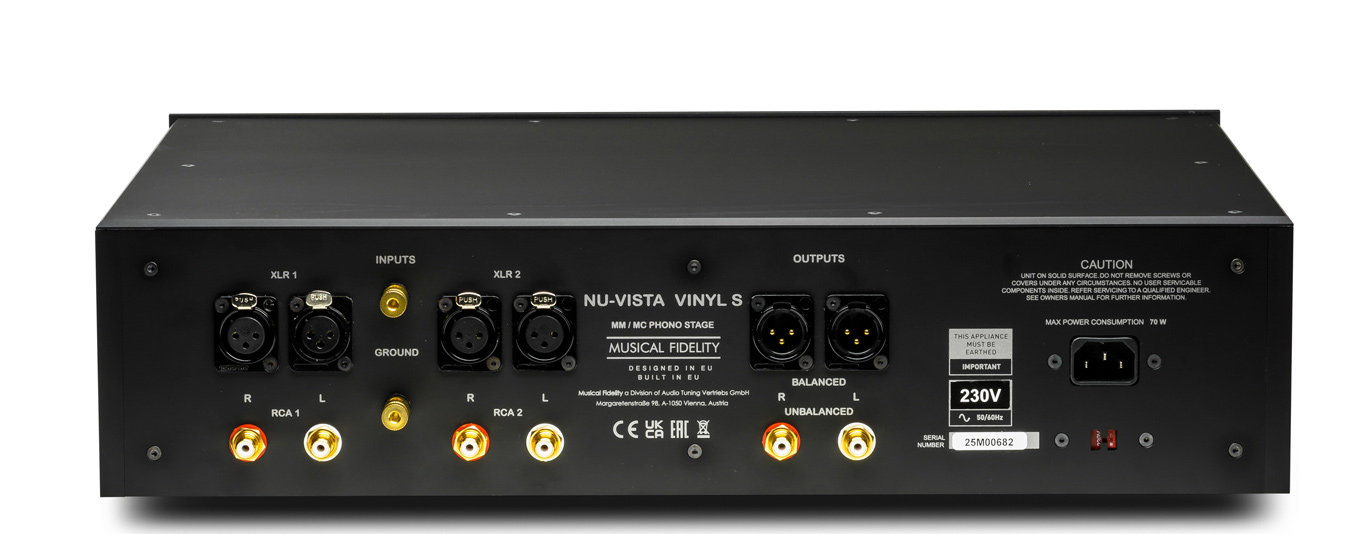

Specifications Nu-Vista Vinyl S

Specifications Nu-Vista Vinyl S
  • Input Impedance (MM)

47 kΩ

  • Input Impedance (MC)

5Ω – 47kΩ

  • Phono Stage Capacitance (MM)

50 – 400 pF

  • Phono Stage Capacitance (MC)

400 pF

  • Phono Stage Gain (MM)

40, 43, 46, 49 dB

  • Phono Stage Equalisation Options

RIAA, DECCA, COLUMBIA

  • Phono Stage Gain (MC)

60, 63, 66, 69 dB

  • Phono Input Sensitivity (MM)

5 mV

  • Phono Input Sensitivity (MC)

500 mV

  • Subsonic Filter

Off, Mild (IEC), Standard (at 20Hz with 18dB/octave)

  • Frequency Response (MM)

+0.25dB, -0.25dB

  • Frequency Response (MC)

+0.3dB, -0.3dB

  • THD (MM Input)

<0.005 %

  • THD (MC Input)

<0.008 %

  • Signal To Noise Ratio (MM Input)

>101 dB

  • Signal To Noise Ratio (MC Input)

>82 dB

  • Overload Margin

32 dB

  • RCA Input(s)

1x RCA unbalanced, left and right 500mV nom, 10V max

  • Balanced XLR Input(s)

1x XLR balanced, left and right 1V nom, 20V max

  • Fixed Analogue Output(s)

1 x RCA Pair, 1 x XLR Pair

  • Maximum Power Consumption

40 W

  • Dimensions (W x H x D)

483 x 131 x 404 mm

  • Weight

14 kg

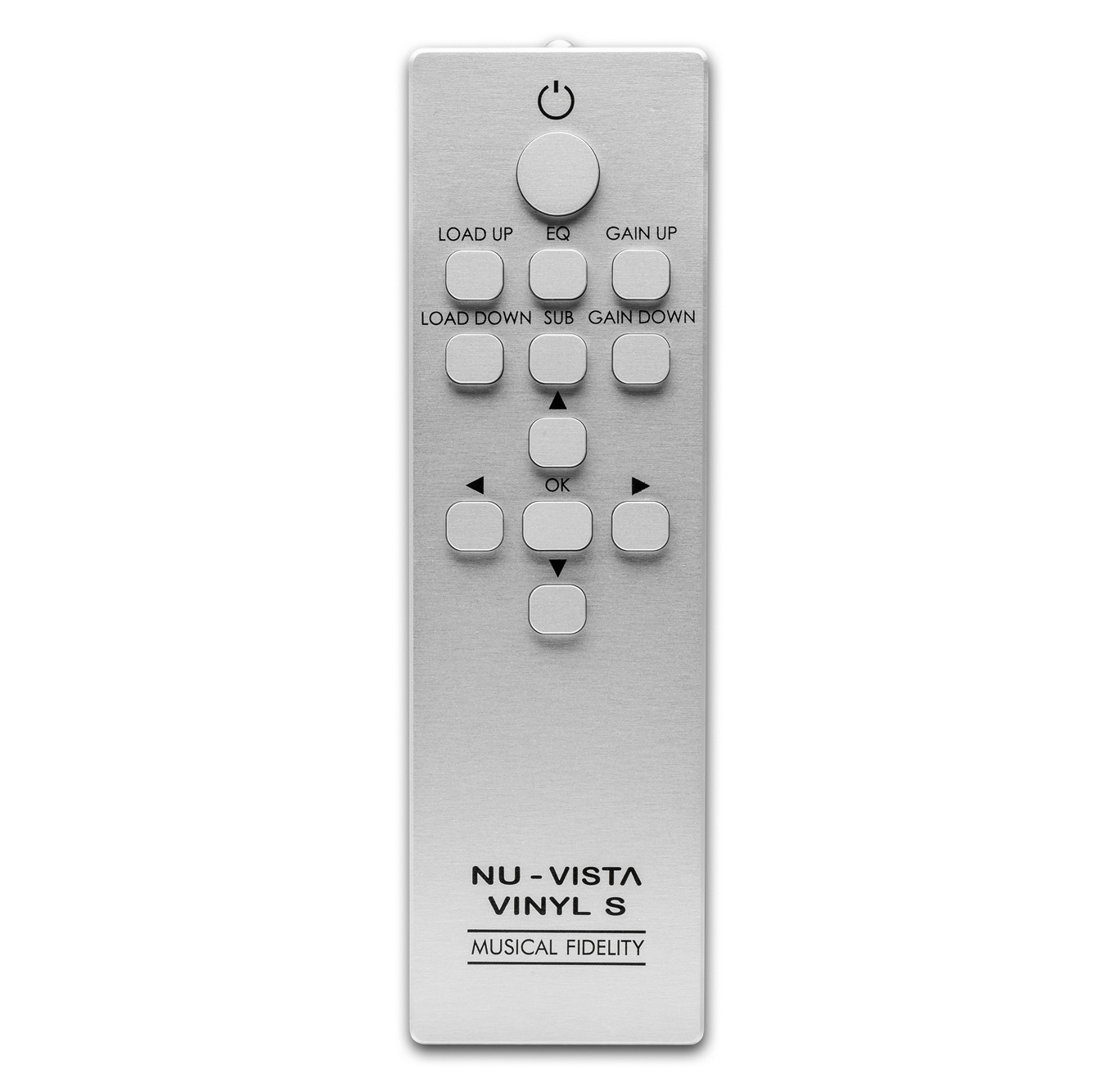

Nu-vista-remote

Additional information

Colour

Black, Silver

Brand

Musical Fidelity

Musical Fidelity has been designing and manufacturing Hi-Fi electronics for over thirty years and  are proud to have become one of the best-known brands in the Hi-Fi industry. They are driven by a passion for wonderful music and the challenge of world-class engineering. They approached each new design by looking for the absolute best solution to a given challenge and embrace new technologies in our designs as well as developing more traditional methods for even greater performance. 1982 Their first product - The Preamp – launched to rave reviews. Followed by shoebox-style Dr Thomas power amp. 1984 Launch of A1 integrated amp, ‘the most important development so far in the renaissance of the UK hi-fi scene’ (Hi-Fi Answers). 1986 New A370 Power Amp proclaimed ‘the best power amp I’ve ever heard’ (Hi-Fi Answers). 1987 World’s first high-end DAC- Digilog – makes debut 1988 Another world first: MVX preamp, combining tube circuit topology with transistors. SA470 launched: 86Kg power amp running 99% in Class A 1992 A1000 integrated released, featuring pure Class A power amp section 1993 Classic valve-driven Tubalog DAC goes on sale 1995 X Series launches with X-10D Class A triode line stage: ‘the most dramatic sonic enhancement you’re likely to hear!’ (F1). 1997 Nu-Vista Preamp launched, using miniature, metal-cased nuvistor tubes. All 500 units sold within three months. X Series expands with X-ACT DAC, praised for 'smooth, easy-going sound' (What Hi-Fi?) 1998 X-24K upsampling DAC released: ‘capable of getting sound to die for’ (Stereophile). X-Ray CD player launched. Described as ‘the sort of object you just want to fondle’ (Hi-Fi News) ‘a thrilling, substantial and satisfying listen’ (What Hi-Fi?) and ‘Hi-Fi meets nuclear warhead’ (T3). 2000 Futuristic CD-PRE 24 arrives, combining a high-quality CD transport, DAC and preamp. On Hi-Fi says it ‘represents a combination of features, functional performance and affordability that seems an audiophile dream come true’. Debut of Musical Fidelity Nu-Vista M3 pre/power amp, including discrete Nu-Vista power amp modules with choke regulation. ‘This is what hi-fi should be all about’ (Gramophone). X-DAC V3 released, offering ‘stunningly good measured performance’ (Stereophile). 2002 World’s first audio application of trivistor tubes in new Tri-Vista series, including legendary Tri-Vista 21 ‘Super DAC’. 2003 Flagship kW pre-amp and kW power amp launched: ‘the very finest amps you can buy...the MFs redefine audio standards’ (What Hi-Fi?) Next up: kW 500 super integrated amp with twin-triode tubes. Hi-Fi News said, ‘For one rare reviewing occasion I could not find a thing to fault about the musical presentation of an amp’. Limited-edition M1 turntable released. Considered one of the best-engineered decks ever, it’s now a collector’s item, fetching above its original price. 2004 Supercharged X-DAC V8 introduced, with switchable tube buffer and extra-heavy-duty power supply. ‘For its superb performance as a detailed, sweet-sounding DAC, the X-DAC V8 stands on its own’ (Stereophile). X-150 wins European Stereo Amplifier of the Year, EISA Awards 2004-2005. 2006 Debut of kW250S one-box wonder, packing in dual 250-watt monobloc amps, tube hybrid preamp, phono stage, 24-bit 192K upsampling CD player, FM/DAB tuner and iPod input. 2009 Meet the mighty TITAN: 1kW per channel dual monobloc design with external power supply. Hi-Fi News was ‘Smitten… The Titan is the best power amplifier I’ve used’. Reference-standard Primo pre-amplifier released; pure Class A with 14 hand-picked ECC81 2011 New M1 CLiC unites analogue and digital sources under universal control. Wins European Network Music Player, EISA Awards 2011-2012. 2012 Line-up expands to meet every hi-fi need and budget. Highlights include the AMS CD/DAC – our finest digital product yet - and AMS100, the world’s most advanced pure Class A amp
Now owned and operated by Audio Tuning, an independent audio specialist company based in Austria, Musical Fidelity still retains its proud British heritage, with every product we design continuing to boast the natural, authentic sound that has made our name so respected across the world. Our unique ranges embrace both traditional and modern requirements. So whether you need a high-quality phono stage to improve your vinyl listening experience, require bit-perfect playback of your beloved CDs, or have chosen to embrace the increasingly popular world of wireless music streaming, we have something to offer. And for every source, we’re still proud to boast a wide range of powerful, state-of-the-art amplifiers that sound at home anywhere. Whatever type of music you enjoy and however you want to hear it, we have something for you at Musical Fidelity.
