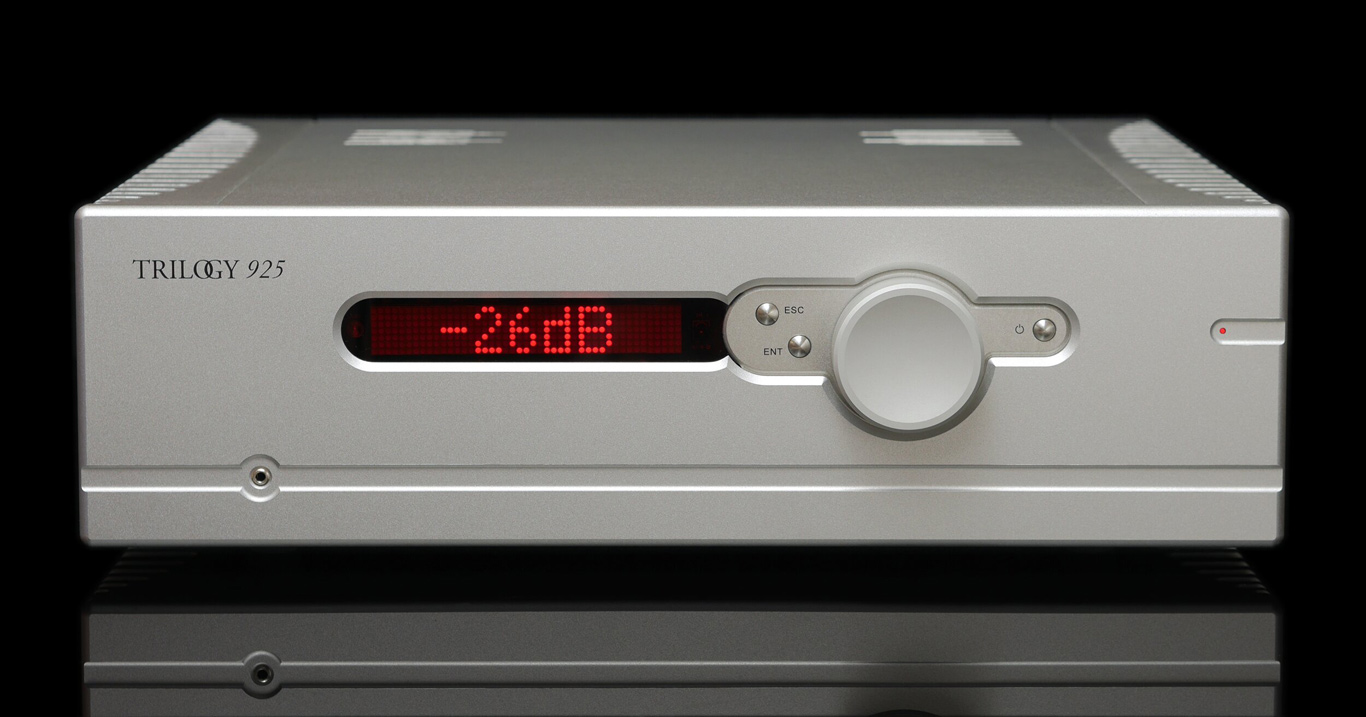

Trilogy 925
Integrated Amplifier
The Trilogy 925 integrated amplifier has strength in depth that will satisfy the most demanding audiophiles.
It takes the integrated concept a significant step forward to deliver an involving musical performance that is truly memorable.
At the heart of the 925 you will find many of Trilogy’s award winning technologies.
The balanced input stage uses the 6H6П super tube to provide pure triode Class A, zero feedback voltage gain of exceptional linearity.
The output stage has our unique zero feedback MOSFET and bipolar topology in a bridge configuration for 135w of power with impressive control.
The amplifier is fully symmetrical inside and out.
Unlike many other amplifiers claiming to be balanced, the signal positive and signal negative are never tied to ground in the 925.

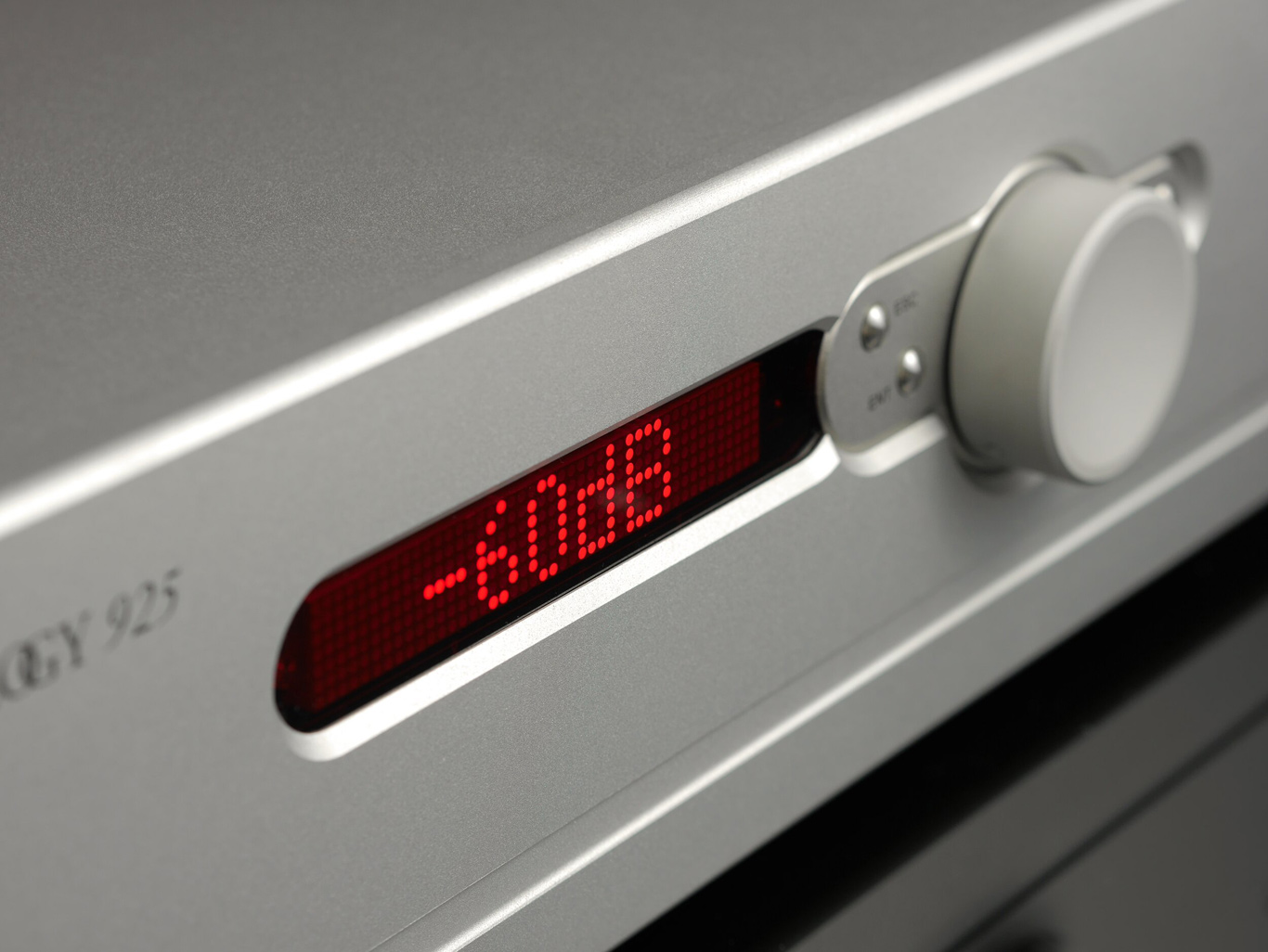

A powerful and fully customisable input management system also interfaces with the outside world and other Trilogy products via TASlink.
The Trilogy 925 design elements are all brought together seamlessly into an amplifier of superlative quality.
It will serve music with a light, transparent touch and controlled, effortless agility.
Standard finish is a soft, finely bead blasted natural aluminium.
You can also choose one of their lustrous paint finishes at extra cost, or take advantage of the Chameleon Colour System which opens up a whole rainbow of custom finish possibilities.
Specifications; Trilogy 925
| Size | 445*430*127 (W*D*H) |
| Size including connectors etc | 445*485*138 (W*D*H) |
| Packaged Size | 590*610*250 (W*D*H) |
| Weight | 25.5 Kg |
| Packaged Weight | 30.5 Kg |

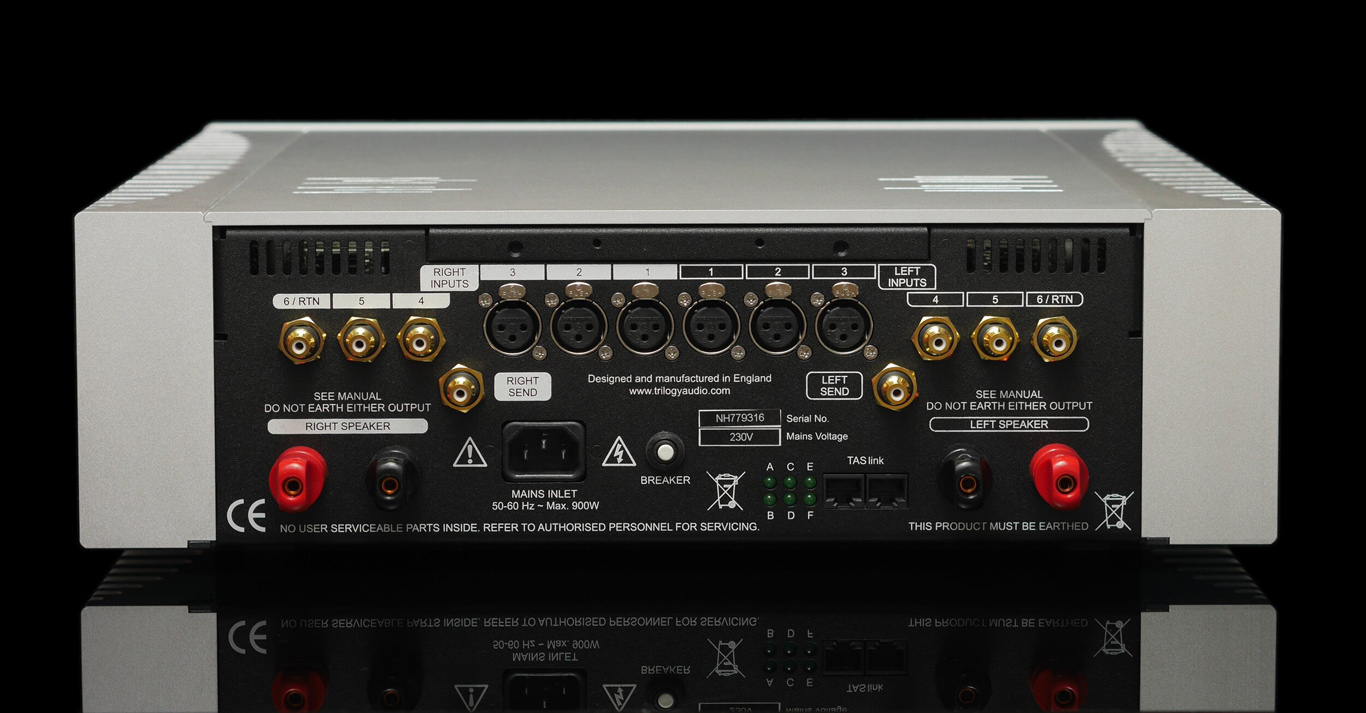

| Inputs (single ended) | 3 RCA phono sockets, 1 on 3.5mm stereo jack |
| Inputs (balanced) | 3 XLR 3 pin female |
| Input Impedance (single ended) | Greater than 42K Ohms |
| Input Impedance (balanced) | Greater than 84K Ohms |
| Input sensitivity | 600mV RMS for rated output |
| Send (Tape) Outputs | 1 RCA phono sockets |
| Rated Power (8 Ohms) | 135 Watts per channel |
| Frequency Response | 10Hz-50KHz +/- 0.5dB |
| Distortion | Less than 1% A weighted at rated output |
| Phase | Phase correct (non inverting) |
From a passion to remain true to the essence of music, and by keeping all the key design elements in harmony, they create products of true quality.
Look at the objects around you in your home or work place; the chances are much of what you see is the end result of derivative thinking.
By bringing a small improvement to what already exists; a commercial niche is filled and a small advantage over your competitors is gained.
They at Trilogy Audio Systems do things differently.
