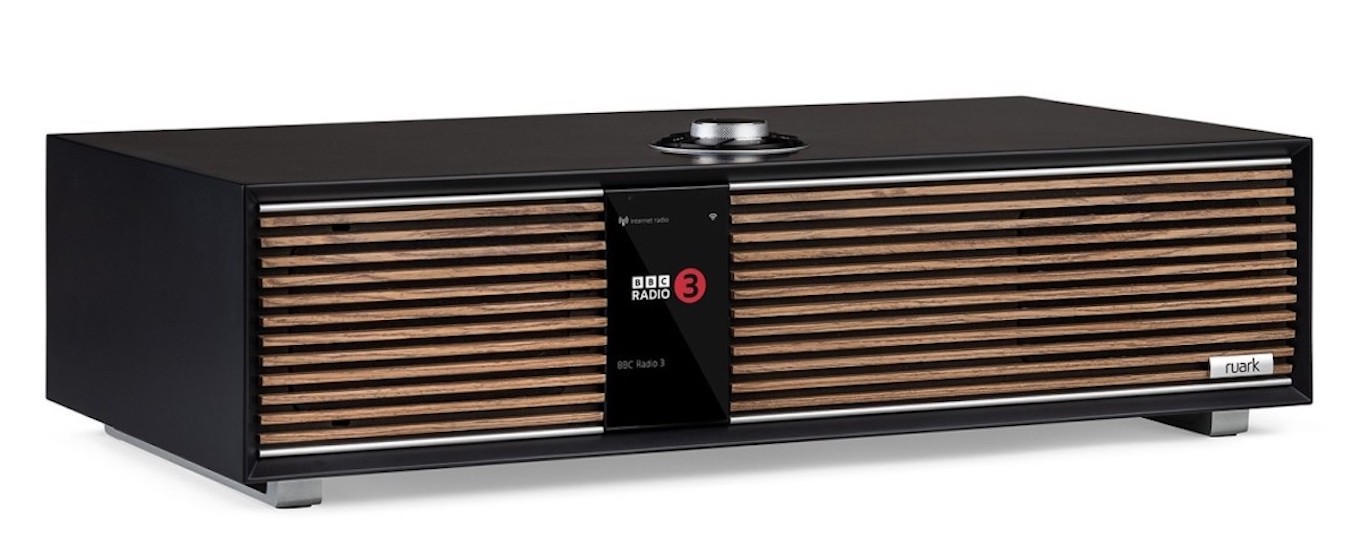

Ruark R410

Ruark R410

Integrated Music System

Streaming Made Beautiful

Music is a universal language that transcends boundaries and connects people from different cultures and backgrounds.

In a good way, music has the ability to make us feel happy or sad.

At Ruark, they love sound and how it makes us feel and believe passionately that the best sound is vital when it comes to bringing people closer to the excitement and emotion of music.

The striking design of R410 conjures up high expectations, and they worked tirelessly to ensure that it fully delivers, providing sublime performance that will connect you closer to the music you love.

Designed to Be Seen

With exquisite attention to detail and a modern take on seventies-inspired styling,

Ruark R410 is a product that’s designed to be seen.

From the hand-crafted grille and cabinet to the precision-formed components, only the finest quality materials have been used.

Further enhancing R410’s stunning aesthetics is the material that Ruark have selected for the grille and enclosure.

Engineered from sustainable woods that are expertly spliced and recomposed, the resulting material closely resembles slow-growing hardwoods, but with the added benefit of true ecological credentials.

Engineered to Be Heard

Their audio heritage means they understand the complexities of cabinet, electronic and driver design in creating sound that will touch your soul.

As an example, in Ruark R410  carefully tuned the reflex enclosures to house their new NS+ bass-mid units and combined with the tweeters from our award-winning MR1 speakers, the result is a soundstage and effortless performance that belies R410’s size.

Together with the latest generation digital amplification, audiophile-grade components and the best processing technologies, R410 creates a magical performance that will connect you closer to the music you love.

Versatile Hi-Res Connectivity – Ruark R410

At the heart of Ruark R410 lies a powerful processor, capable of supporting the highest quality music files.

Spotify and TIDAL Connect are built-in, but if you like your music home-based, then R410’s media player will allow you to quickly browse and stream music from other shared devices on your network.

Moreover, through the analogue and digital inputs, it’s easy to connect and enjoy external devices such as a turntable or play CDs by connecting a CD-ROM drive to the USB input.

In particular, with HDMI ARC/eARC connectivity, R410 makes a superb sound system for TVs and a complete solution for all your home entertainment needs.

Apple AirPlay and Chromecast built-in

From LPs in the 50s to CDs in the 80s, to MP3s in the noughties, it’s clear that the way we listen to music has evolved.

With Ruark R410, you can still connect and enjoy a turntable or CD drive, but primarily R410 has been designed for streaming and making the most of the amazing music and radio services available online.

Notably, with Apple AirPlay and Chromecast built-in, you can stream directly to R410 from sound-based apps such as BBC Sounds with better than CD sound.

Furthermore you can easily create a multi-room system for your home, linking R410 with other AirPlay and Chromecast speakers.

All future 100 Series models will also have this interoperability.

Beautiful to Control

Their RotoDial control system has been a distinctive part of Ruark products since the introduction of their R1 in 2006, but for 100 Series they have refined its design from top to bottom.

Also included with R410 is a matching rechargeable remote.

Bluetooth connectivity means that aiming is not required – and like a quality watch, it’s an item that you will love to use, as it looks and feels so good.

Beautiful to See

R410’s advanced processor has allowed us to provide a slick user interface, handling input from apps and their control system and promptly displaying the interaction on R410’s colour high-resolution display.

The portrait orientation of the display intentionally emulates the way that we view most services on our smartphones, making R410 intuitive to use, but most importantly the display brings an interactive element to R410 that few other systems offer.

Ruark R410 – Specifications

Audio

• Frequency response 35Hz – 22kHz
• Speaker units
  2 × Ruark 20mm silk dome tweeters,
  2 × Ruark 100mm NS+ bass-mid units
• Amplifier 120W RMS Class D amplifier (0.02% THD @ 30W/CH)
• Enhancements
  Adjustable bass and treble settings
  Stereo+ 3D audio enhancement
  Adaptive EQ provides ideal sound according to volume
• Cabinet type Tuned dual bass reflex enclosure
• Digital to Analogue Burr-Brown 32-bit 192kHz DAC
• Analogue to Digital Burr-Brown 32-bit 192kHz ADC

Features

• Controller Intuitive RotoDial control system
• Remote Control RotoDial BT LE rechargeable remote
• Display Hi-Res auto dimming 4″ colour TFT display
• Presets 20 Global presets
• App Control Via Spotify, BBC Sounds etc.
• Auto-Standby Adjustable auto-off power saving mode
• Adjustable Input Levels Adjustable line-in and optical input levels
• USB Charge Port USB-C 5V 1A (5W)
• DST Automatic DST adjustment
• Software Updates Via over-the-air or USB if required
• User Interface Languages Multilingual

Connectivity

• Radio Internet Radio DAB / DAB+ / FM with RDS (87.5-108MHz)
• Multiroom capable Via Apple AirPlay and Google Cast
• Wi-Fi 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
• Streaming Apple AirPlay and Google Chromecast built-in
• Built-in music services Spotify Connect, TIDAL Connect
• Bluetooth 5.1, aptX HD, SBC, AAC, BLE, A2DP
• Ethernet RJ45 connector 10/100 Mbps
• DLNA UPnP™ DLNA media server compatible
• CD player CD playback via external USB CD drive (optional)
• HDMI ARC and eARC
• Line-input Stereo RCA input (up to 2.3Vrms)
• Moving Magnet RIAA phono input Turntable input with MM phono gain stage
• Optical input TOSLINK input up to 24-bit 192kHz
• Subwoofer-output via mono RCA
• USB 2.0 type C FAT32 playback port
• Aerial 75Ω F-type aerial connector

Supported Audio Formats

• MP3 up to 48kHz 320kbps
• AAC formats up to 96kHz 320kbps
• FLAC up to 24-bit 192kHz
• WAV up to 24-bit 192kHz
• WMA formats up to 48kHz 320kbps
• WMA 9 up to 48kHz 256kbps

General Specifications

• Standard finishes Fused Walnut Veneer or Soft Grey Lacquer
• Product dimensions H150 × W560 × D290mm
• Product weight 9.5kg
• Product power input 90-240VAC, 50-60Hz, 2.5A
• Power consumption <2W standby. 5-10W typical
• Gift Box Content
  2m mains power cable,
  Quick start guide,
  RotoDial BT LE rechargeable remote,
  Telescopic aerial and spanner
